Cross-Sectional View
Cross-Sectional View
STRUCTURE AND OPERATION
Cross-Sectional View

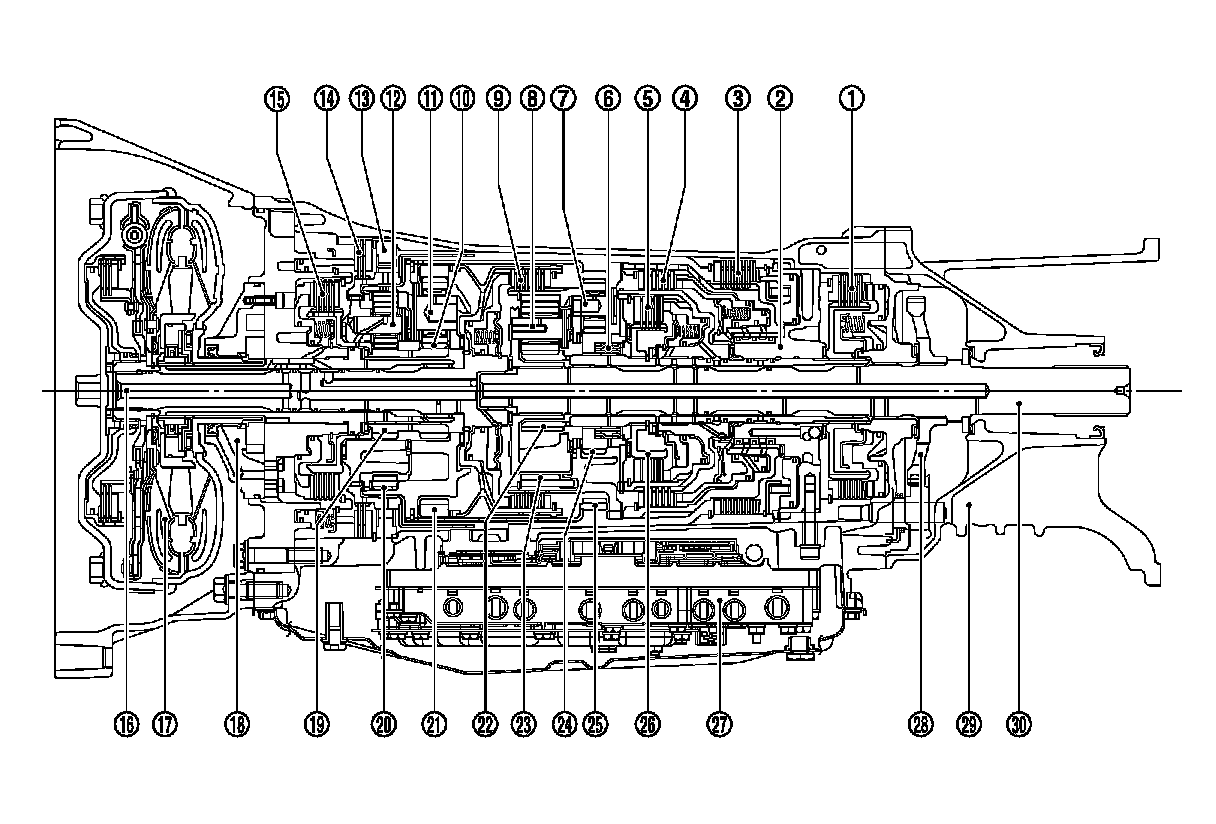

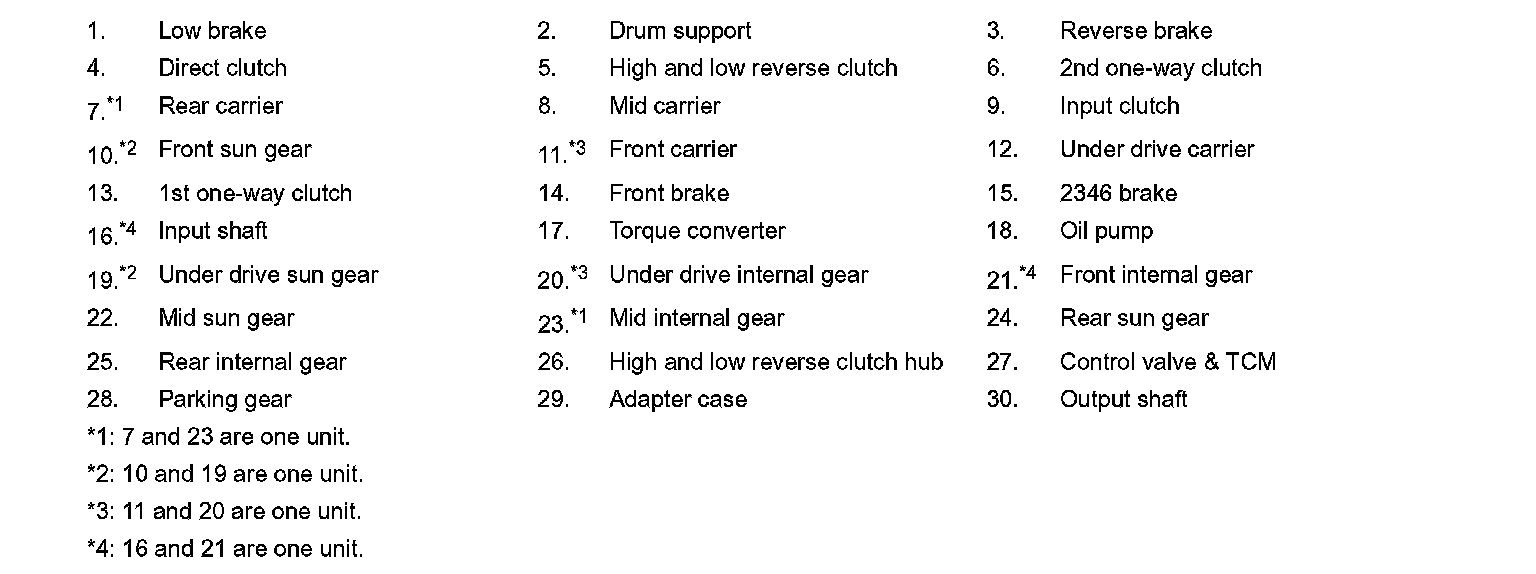

2WD MODELS

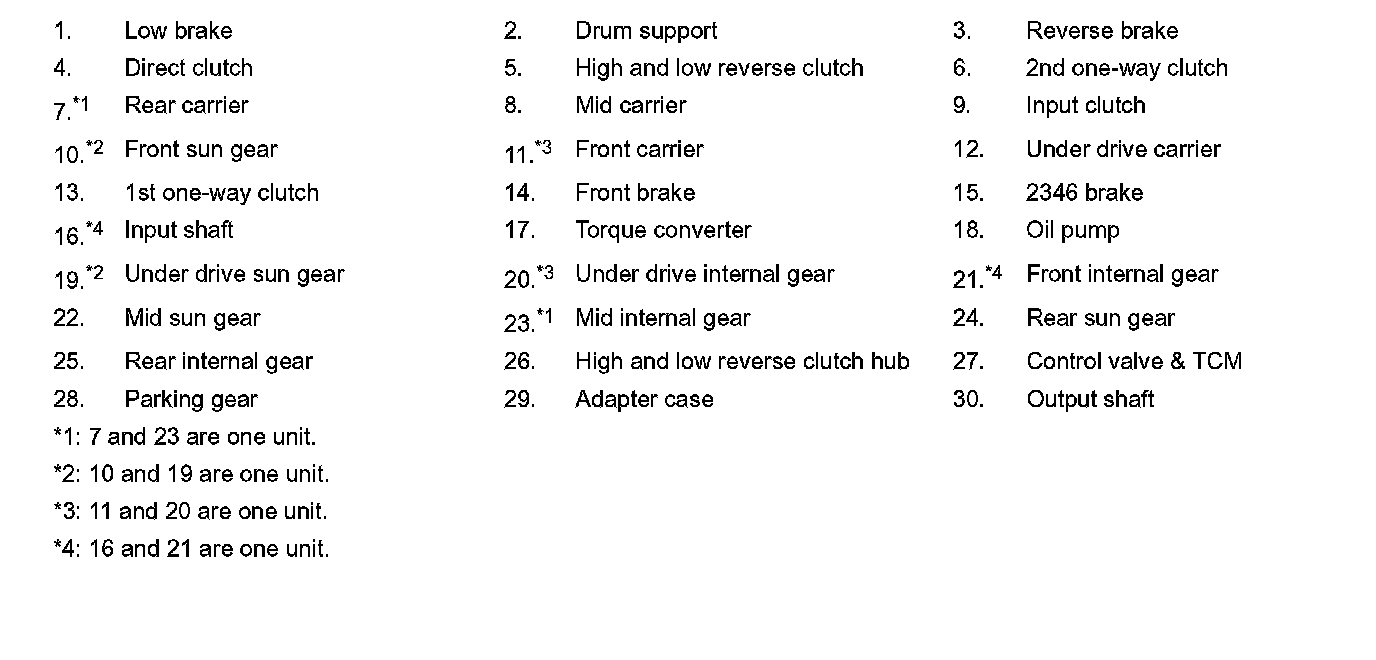

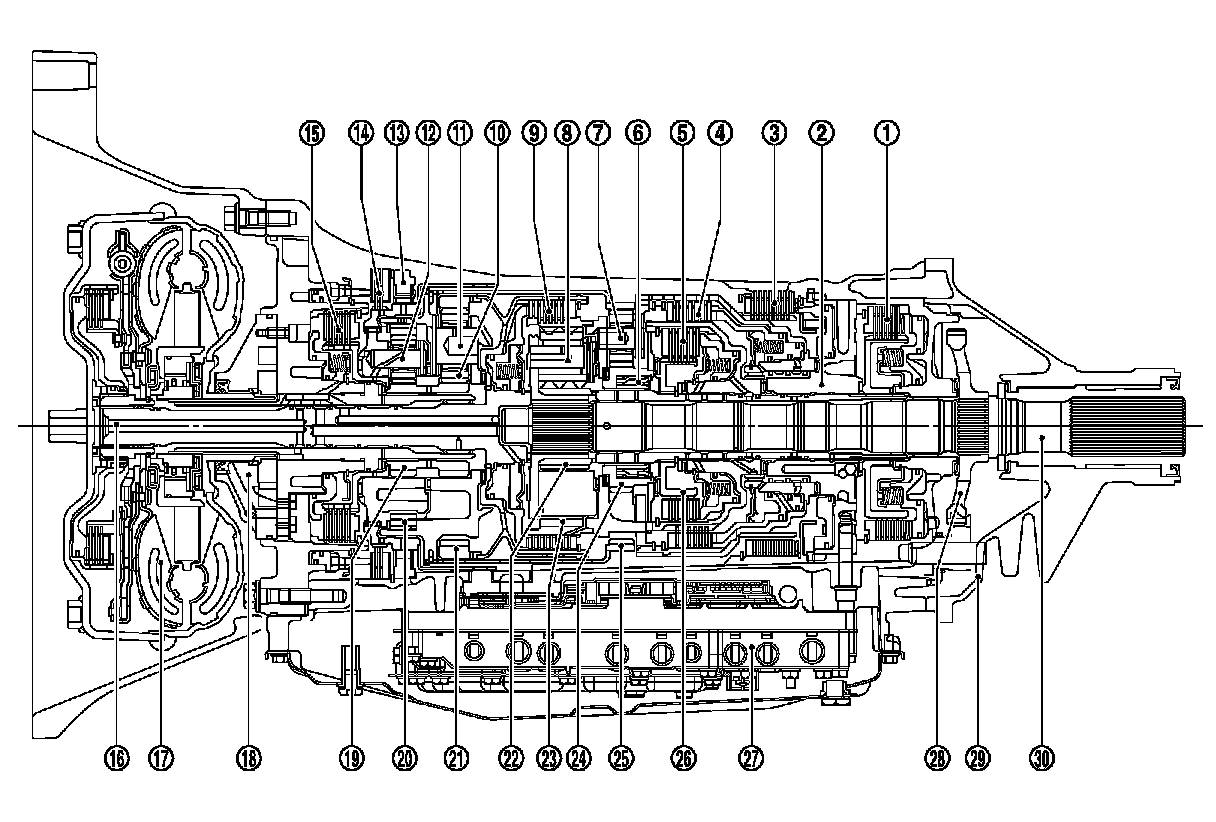

AWD MODELS
