EPS System

SYSTEM

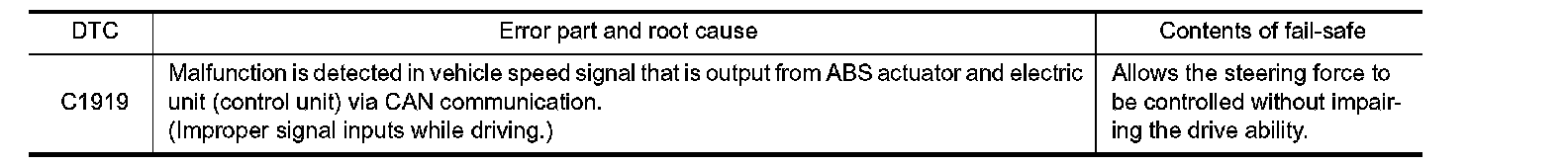

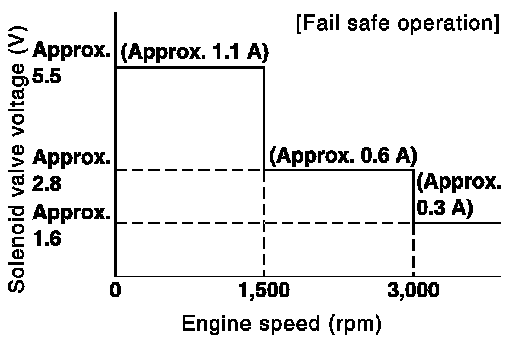

EPS SYSTEM : Fail-safe (4WAS Main Control Unit)






- EPS system (4WAS main control unit) enters the fail-safe mode (that allows the steering force to be controlled without impairing the drive ability) if the input from each sensor is not within the specified range. Then, 4WAS warning lamp turns ON.
