4WAS System




SYSTEM

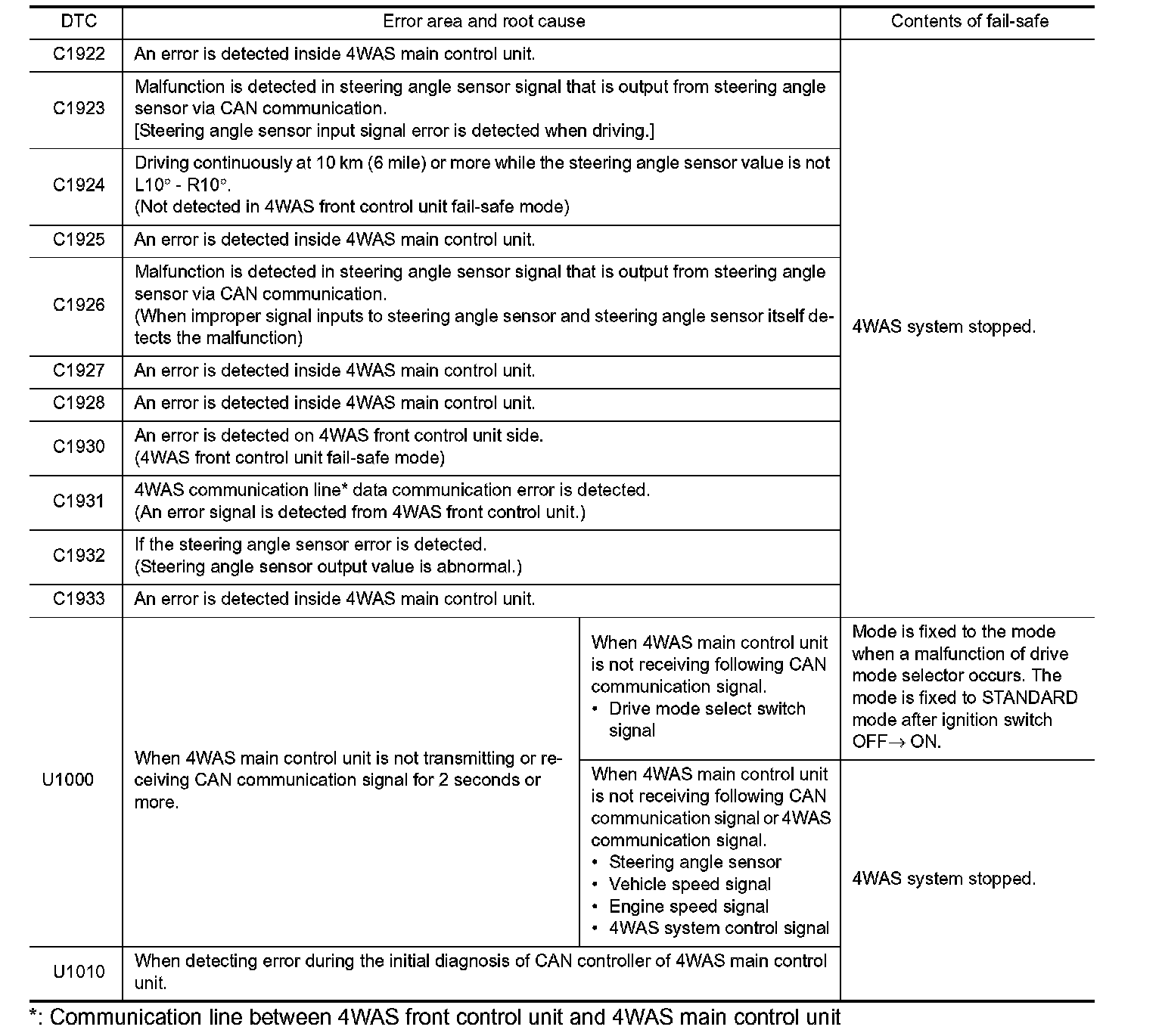

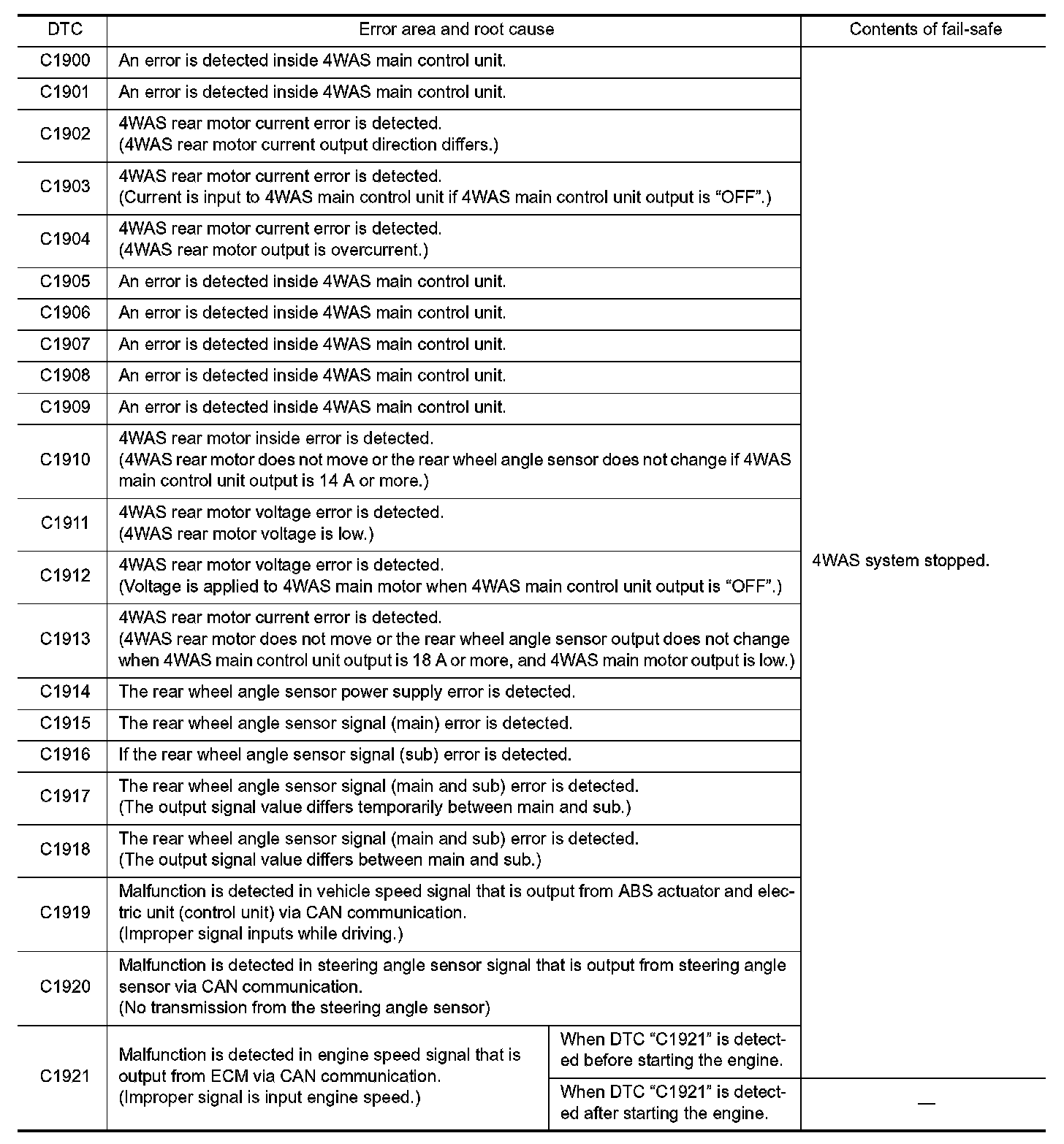

4WAS SYSTEM : Fail-safe (4WAS Main Control Unit)

4WAS system enters in the fail-safe mode (4WAS system stopped) and 4WAS warning lamp turns ON if an error is detected in 4WAS system (4WAS main control unit) component part.










*: Communication line between 4WAS front control unit and 4WAS main control unit
