Home >> Infiniti >> 2012 >> M37x AWD V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Steering Column >> Service and Repair >> Removal and Replacement >> Lower Shaft >> Exploded View >> Without 4WAS

Without 4WAS




LOWER SHAFT

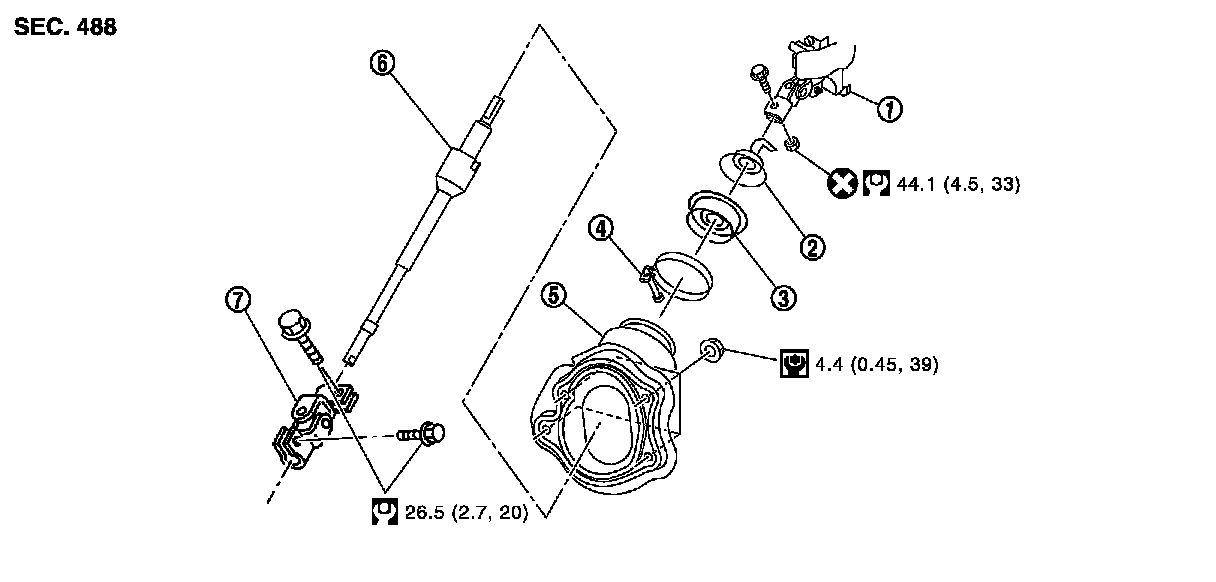

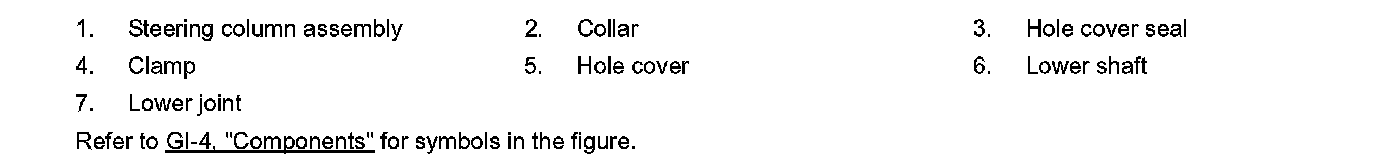

WITHOUT 4WAS : Exploded View
