Security Control System

PUSH-BUTTON IGNITION SWITCH

Removal and Installation


REMOVAL

1.Remove front body side welt. Body Side Welt.
2.Remove instrument side finisher LH. Removal And Installation.
3.Remove instrument lower panel LH. Removal And Installation.
4.Disconnect NATS antenna amp. connector and push-button ignition switch connector.

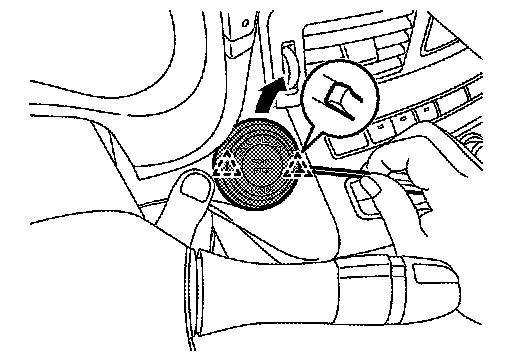

5.Disengage the NATS antenna amp. fixing pawls while pushing
NATS antenna amp. from its back side, so that NATS antenna amp. and push-button ignition switch are lifted up from instrument panel assembly.

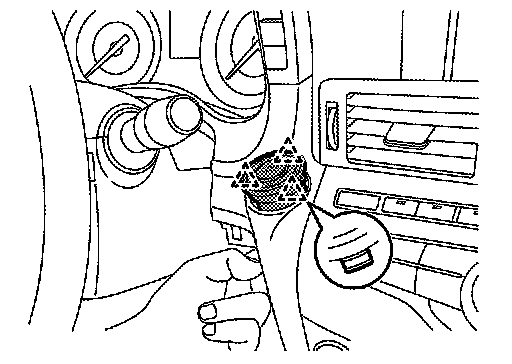

6.While pushing the push-button ignition switch from its back side, disengage the push-button ignition switch fixing pawls using a minus driver etc., and then remove push-button ignition switch.






INSTALLATION

Install in the reverse order of removal.
