System Description

SYSTEM

RELAY CONTROL SYSTEM : System Description

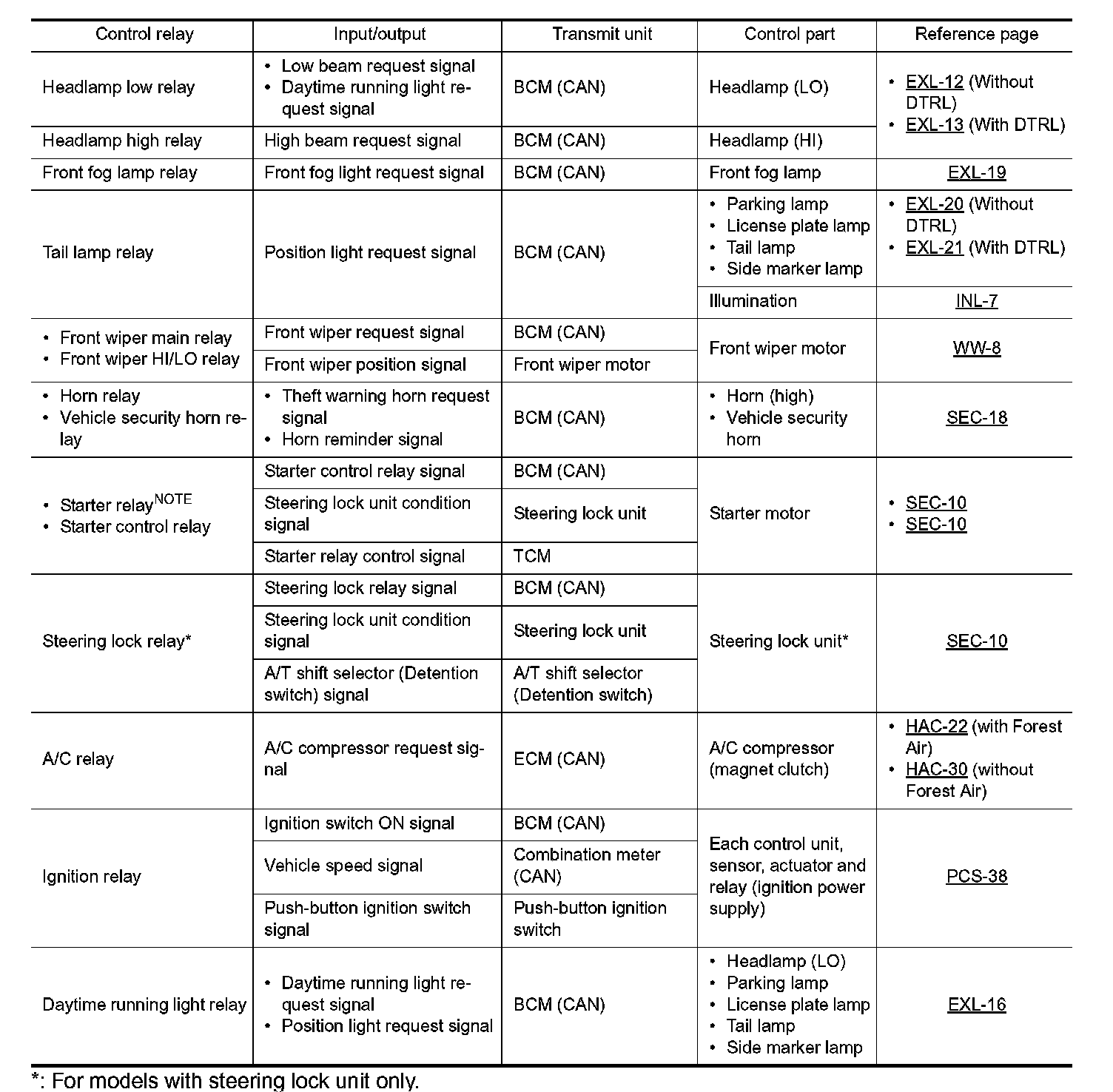

IPDM E/R activates the internal control circuit to perform the relay ON-OFF control according to the input signals from various sensors and the request signals received from control units via CAN communication.

CAUTION:
To prevent damage to the parts, IPDM E/R integrated relays cannot be removed.





*: For models with steering lock unit only.
NOTE:
BCM controls the starter relay.
