Tightening Specifications

Intake Manifold

Stud bolts 10.8 Nm (1.1 kg-m, 8 ft-lb)

Mounting Bolts

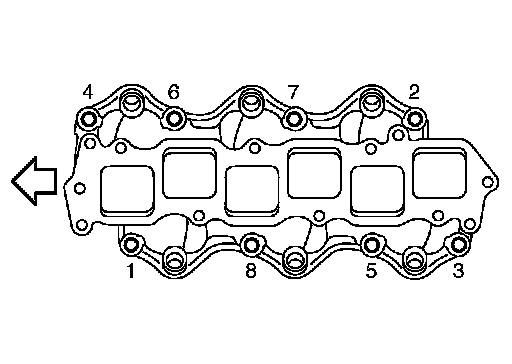

Tighten all mounting bolts to the specified torque in two or more steps in numerical order as shown in the figure

1st step 7.4 Nm (0.75 kg-m, 5 ft-lb)
2nd step and after 25.5 Nm (2.6 kg-m, 19 ft-lb)

Intake Manifold Collector Bolts 19.6 Nm (2.0 kg-m, 14 ft-lb)

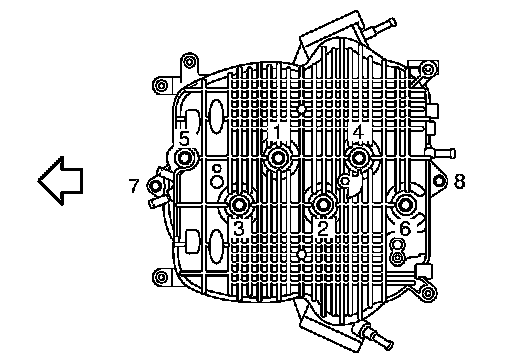

Tighten mounting bolts and nuts in numerical order as shown in the figure
