Home >> Infiniti >> 2012 >> M37x AWD V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Steering and Suspension >> Sensors and Switches - Steering >> Steering Angle Sensor >> Testing and Inspection >> Description

Description




ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Description

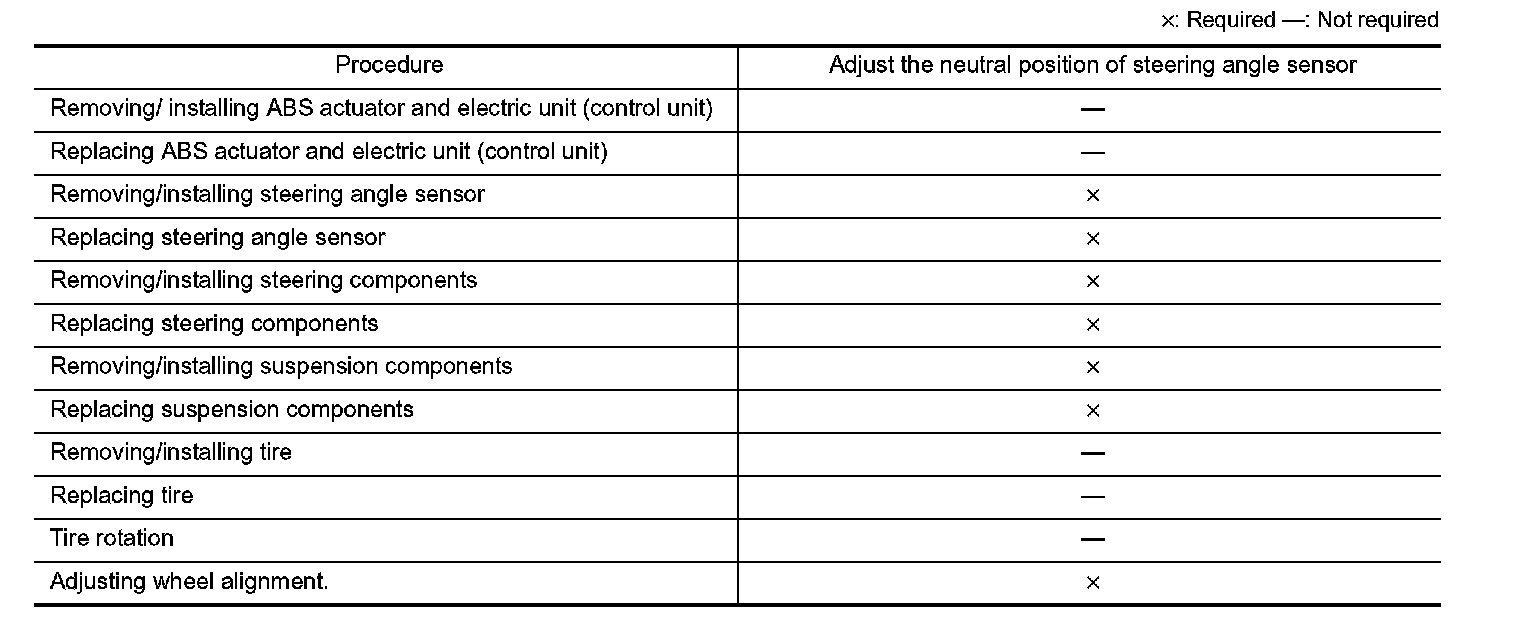

Always adjust the neutral position of steering angle sensor before driving when the following operation is performed.
�: Required -: Not required
