Pinout Values and Diagnostic Parameters

ADAS CONTROL UNIT

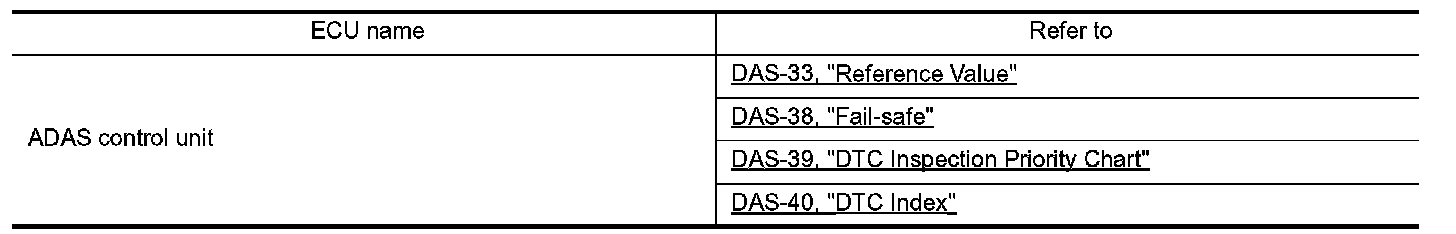

List of ECU Reference







ACTIVE TRACE CONTROL FUNCTION

Intelligent brake assist OFF indicator lamp turns ON when a malfunction occurs in system [ABS actuator and electric unit (control unit)]. The control is suspended for Active trace control function. The vehicle becomes the same as models without Active trace control function. ADAS Control Unit for ON/OFF conditions of each warning lamp and indicator lamp.

CAUTION:
Lamp ON condition of intelligent brake assist OFF indicator lamp is that intelligent brake assist OFF
switch is in the pressed and not turned ON status.
