Removal And Installation

BRAKE PEDAL STROKE SENSOR

Removal and Installation


REMOVAL

1.Remove the instrument panel lower cover LH. Removal And Installation.





2.Disconnect the brake pedal stroke sensor connector.

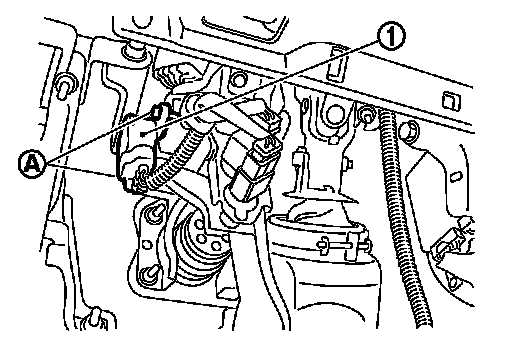

3.Remove the screws (A).
4.Remove the brake pedal stroke sensor (1).

INSTALLATION

Install in the reverse order of removal.
