Preparation

LASER BEAM AIMING ADJUSTMENT

Work Procedure (Preparation)


1. ADVANCE PREPARATION FOR LASER BEAM AIMING ADJUSTMENT

1.Adjust all tire pressure to the specified value.
2.Empty the vehicle. (Remove any luggage from the passenger compartment, trunk room, etc.)
3.Shift the selector lever to "P" position, and release the parking brake.
4.Fully fill the fuel tank, and then check that the coolant and oils are filled up to correct level.

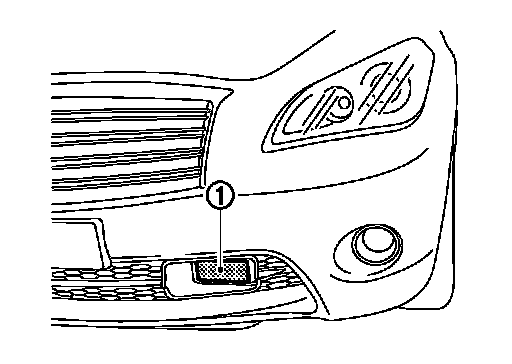

5.Clean off the ICC sensor body window with a soft cloth.





- Go to Setting The ICC Target Board.
