Part 3: Using C-III Plus - Reprogram the Multi AV and Confirm

Part 3: Using C-III plus; reprogram (reconfigure) the Multi AV unit and confirm the control unit part number has changed.

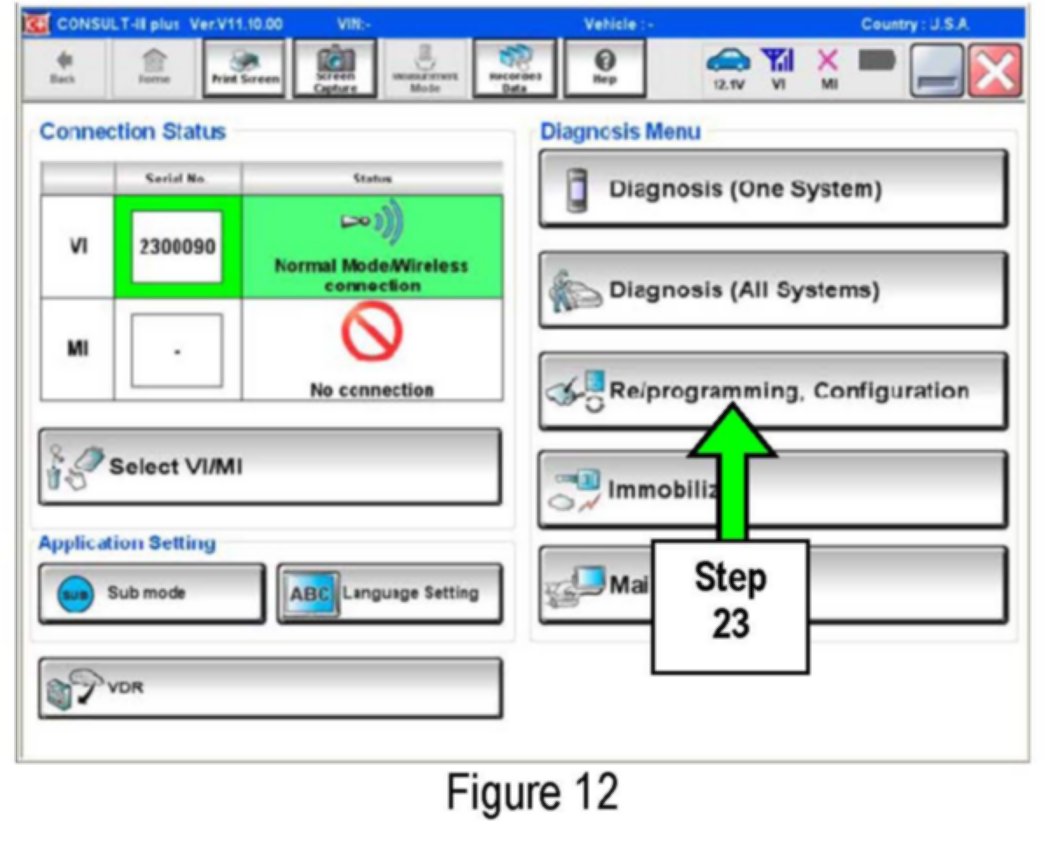

23. Select Re/programming Configuration

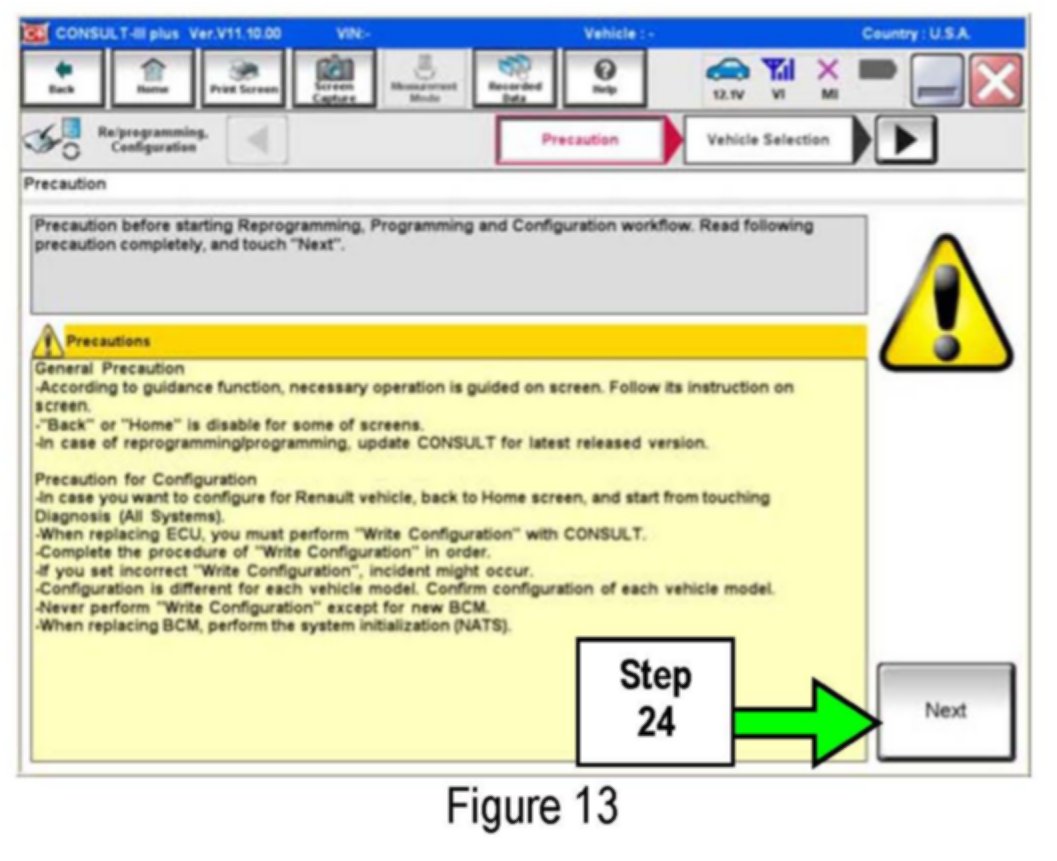

24. Read Precautions, then select Next.

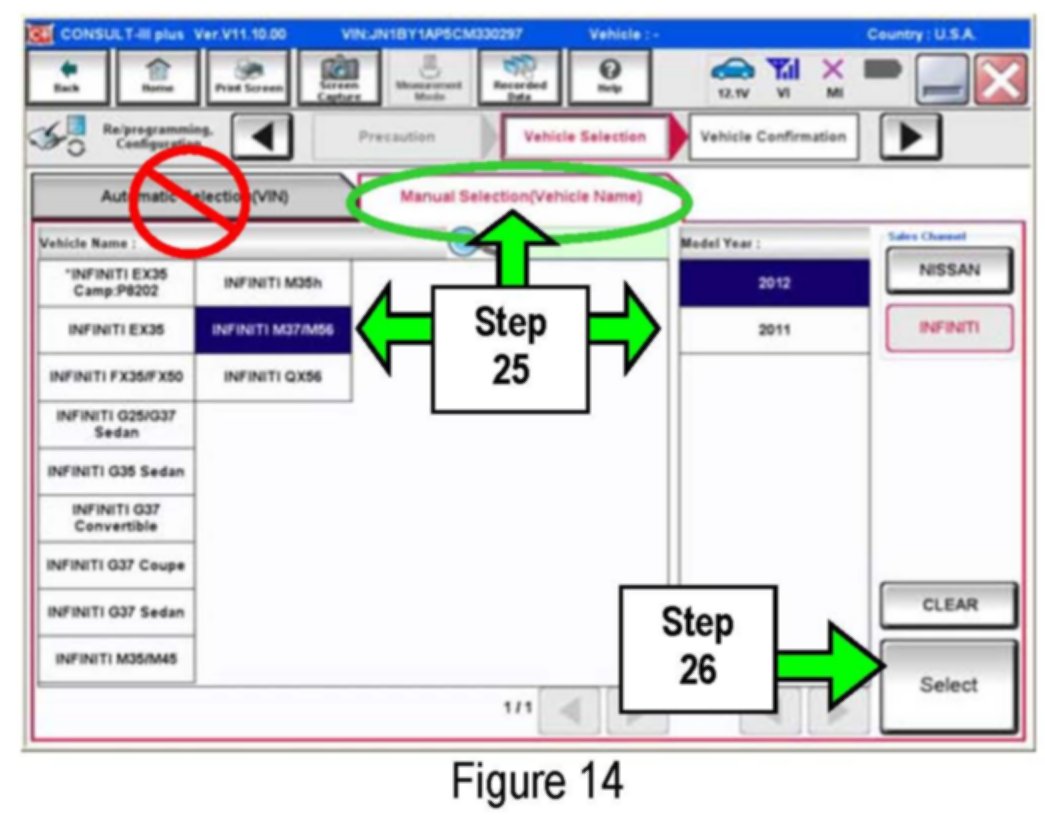

25. Use Manual Selection (Vehicle Name), then select correct Make, Model and Year.

26. Click on Select

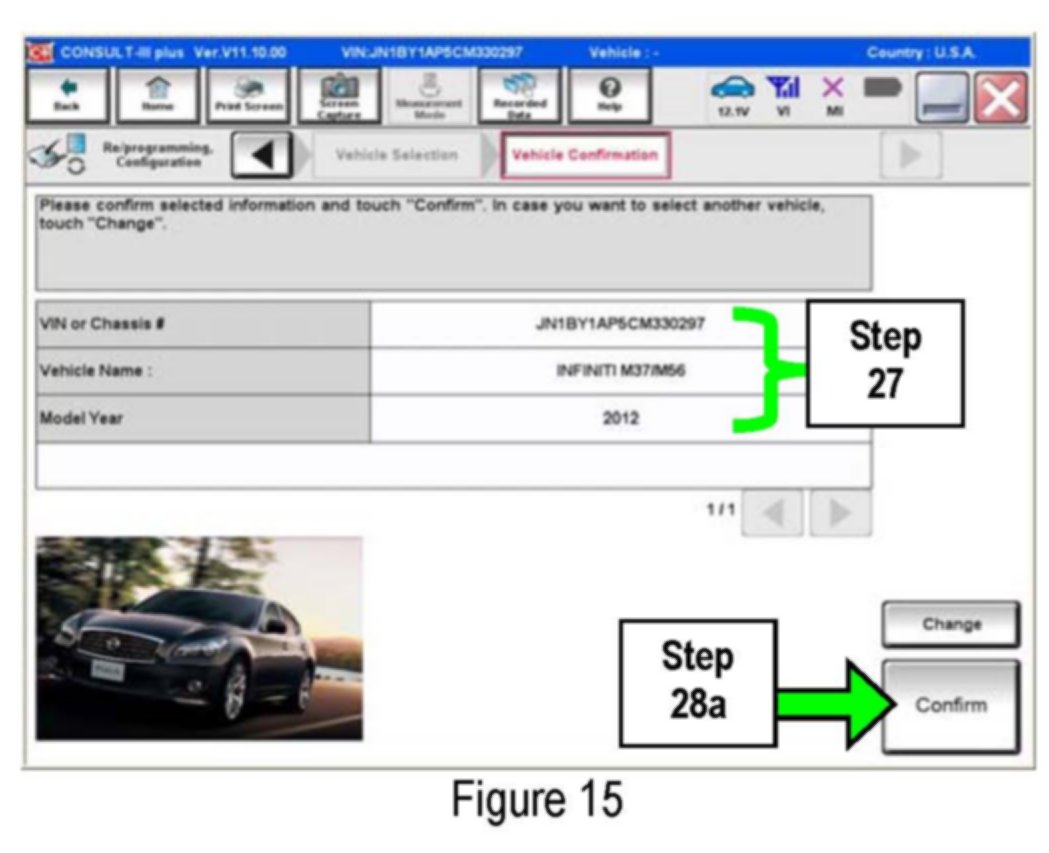

27. Confirm correct VIN, Vehicle Name and Model Year.

28a. If the VIN is correct, select Confirm.

28b. If the VIN needs to be changed,

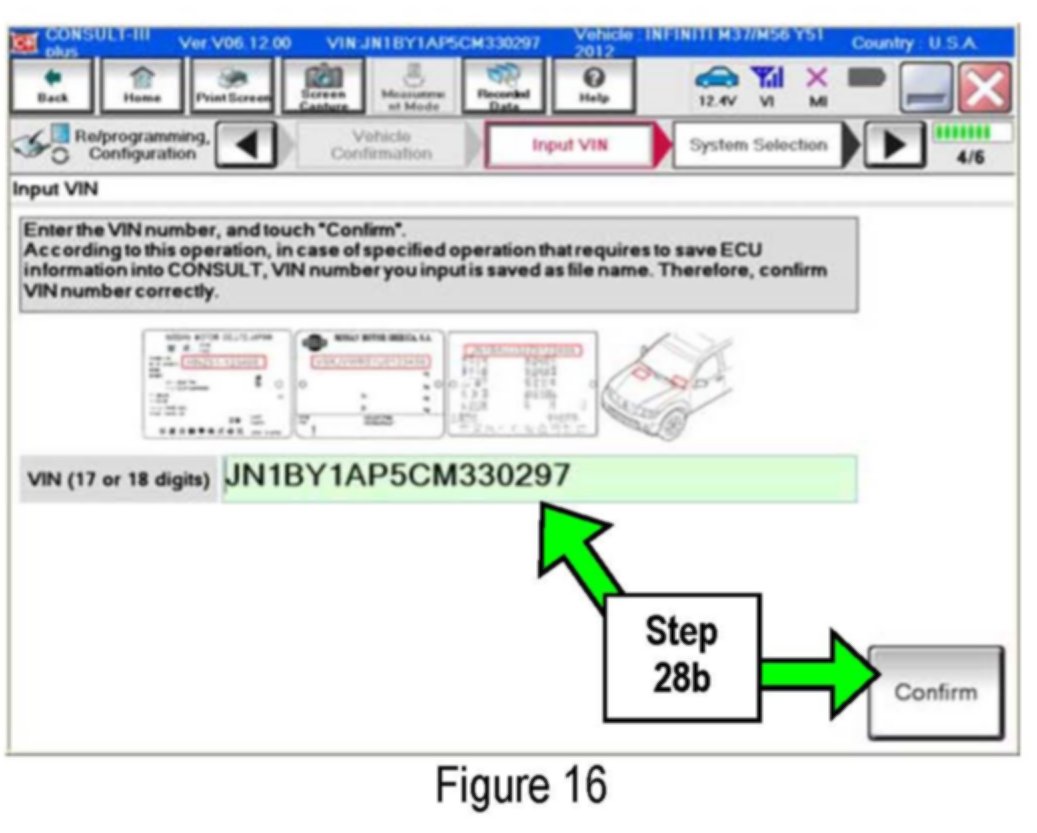

a. Select Change then refer to Figure 16.

b. Correct the VIN, and then select Confirm.

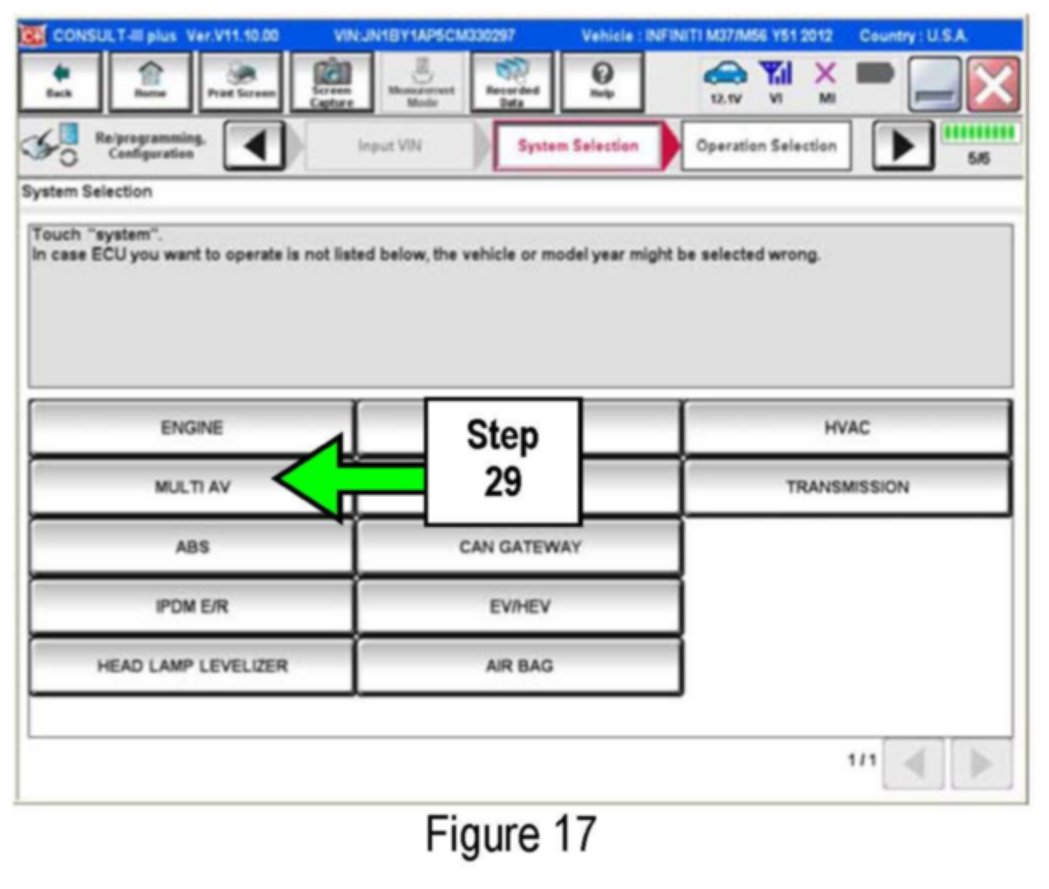

29. After system call completes, select MULTI AV.

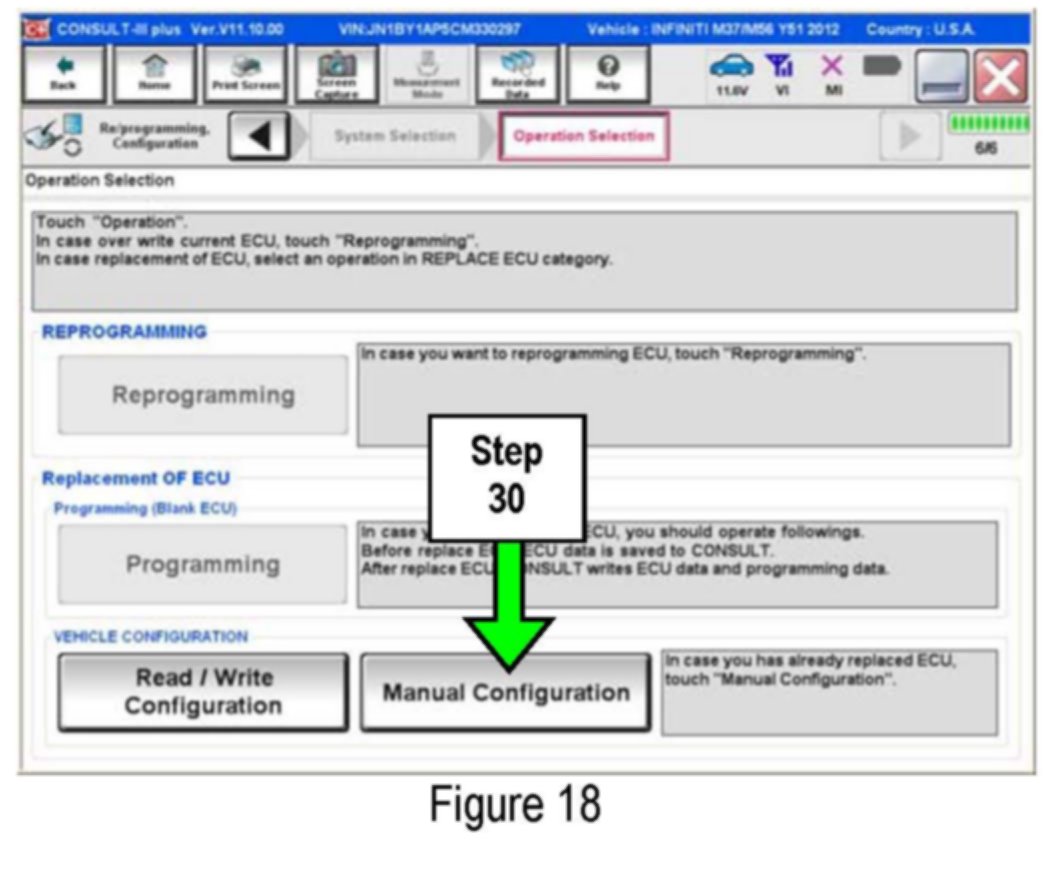

30. Select Manual Configuration





31. Use drop down arrows to make selections, then select Next.

^ ENGINE TYPE - (NORMAL or HYBRID)

^ 4WAS - WITH or WITHOUT

^ Microphone - select "Directional Mic"

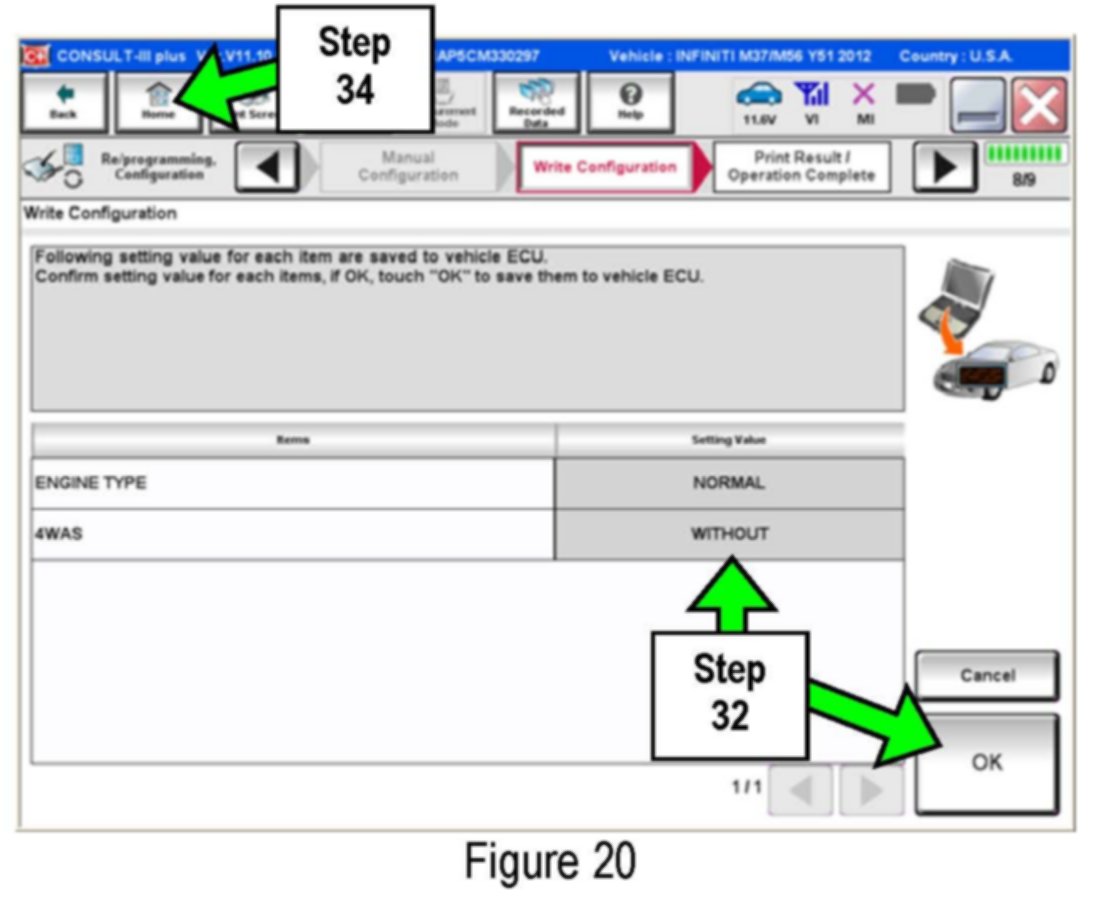

32. Confirm correct ENGINE TYPE and WITH or WITHOUT 4WAS, then select OK.

33. Wait for C-III plus to transfer the reprogramming (reconfiguration) to Multi AV - about 1 minute or less.

34. After C-III plus finishes transferring the reconfiguration to MULTI AV, select Home.

35. Start the engine and it let idle briefly.

36. Use C-III plus to clear any codes from the Multi AV system.

a. Select Diagnoses (One System) > Multi AV > Self Diagnosis Results.

b. Clear any codes that may be present.

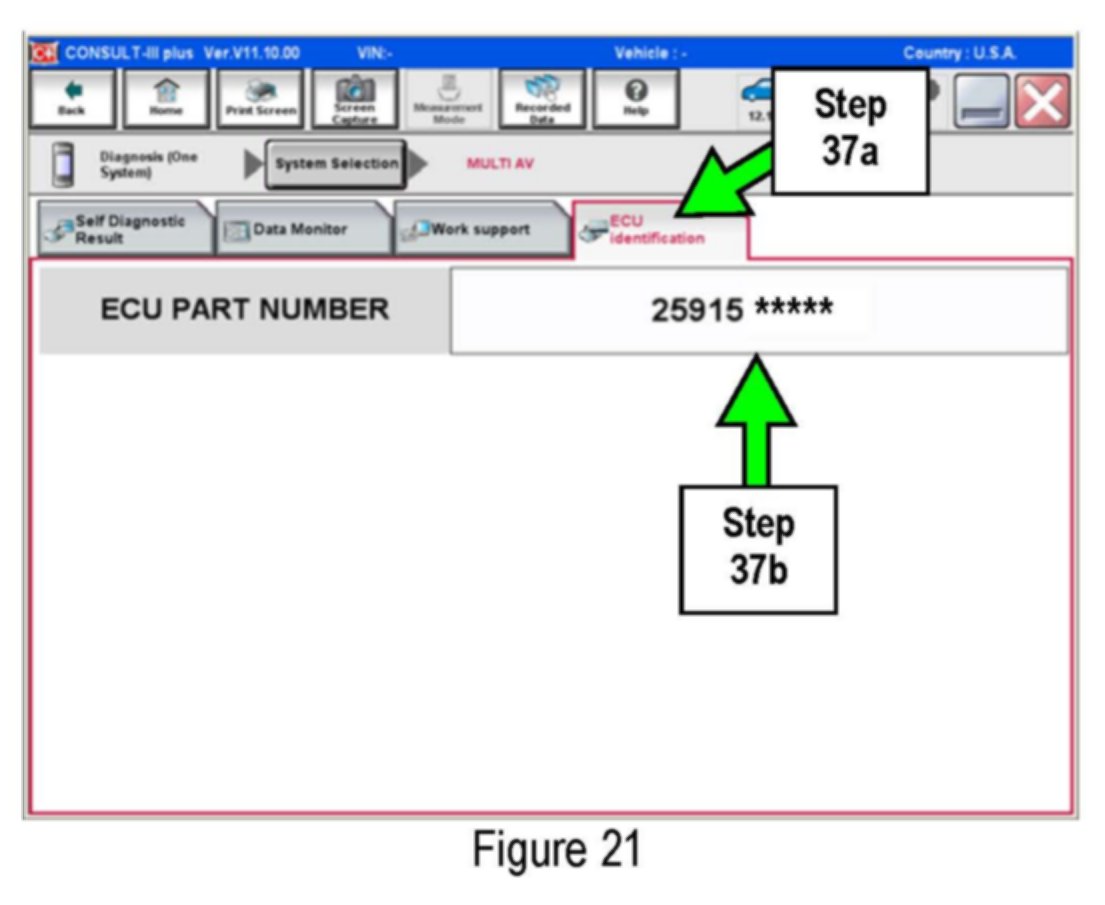

37. Confirm the Multi AV part number has changed:





a. Select ECU Identification.

b. Compare the part number you wrote down in step 11 to the one that is now displayed.

c. The part number should be different.

NOTE:
If the part numbers are not different, the reconfigure process was not successful.

38. Close the C-III plus software and disconnect the VI from the vehicle.
