Component Inspection (Shift Lock Unit)

SHIFT LOCK SYSTEM

WITH ICC : Component Inspection (Shift Lock Unit)


1. CHECK SHIFT LOCK SOLENOID

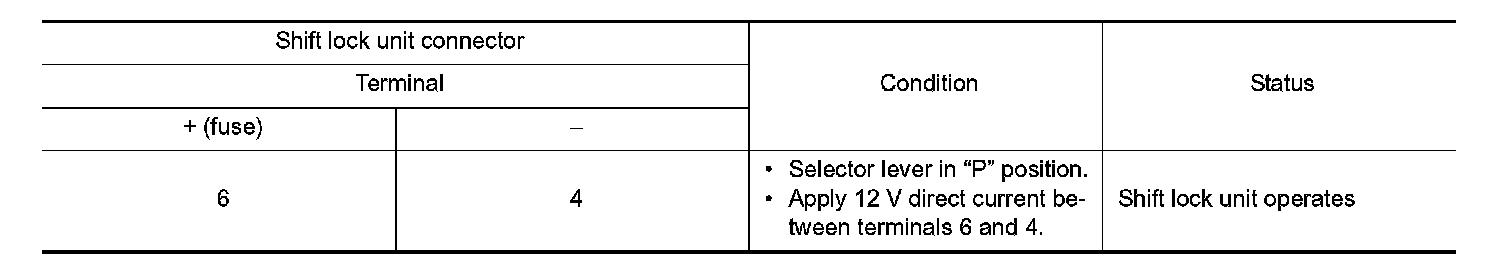

Apply voltage to terminals 6 and 4 of A/T shift selector connector, and check that shift lock unit is activated.

CAUTION:
Connect the fuse between the terminals when applying the voltage.





Can the lock plate be moved up and down?
YES- INSPECTION END
NO- Replace A/T shift selector assembly. A/T Shift Selector (2WD) or Exploded View (AWD).
