Component Description




COMPONENT PARTS

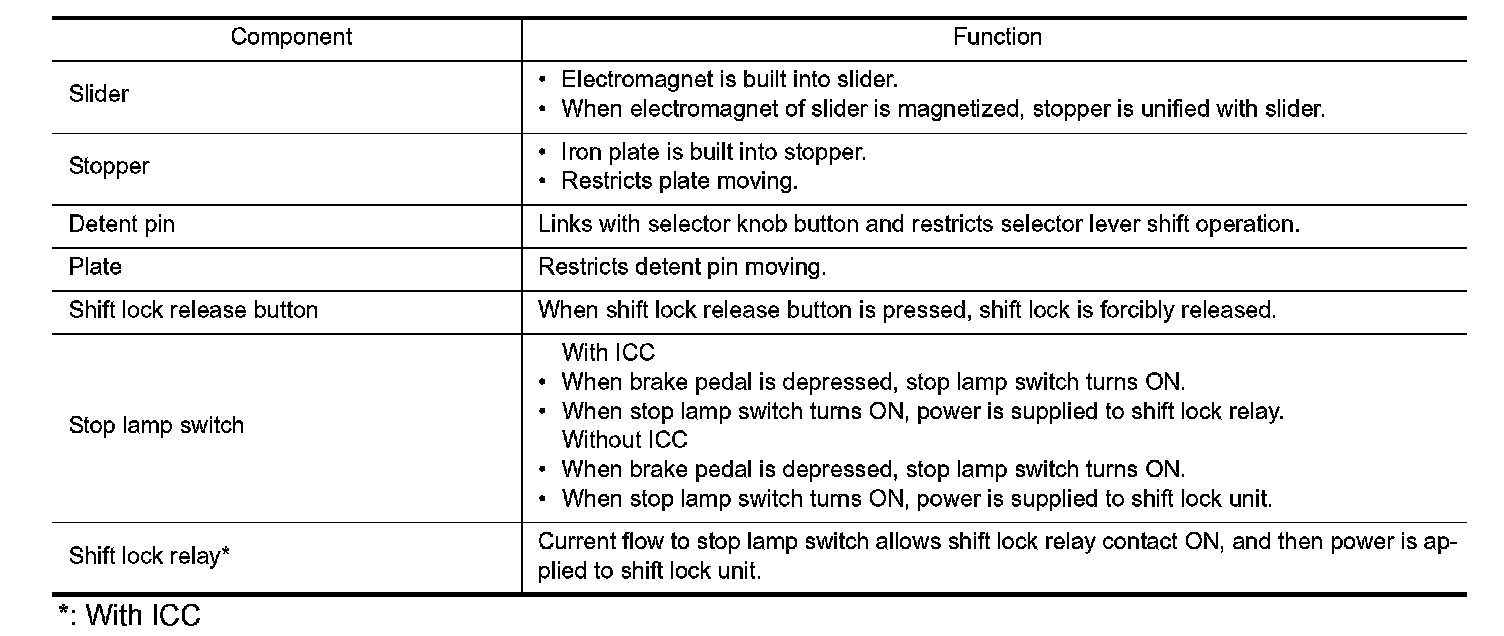

A/T SHIFT LOCK SYSTEM : Component Description






*: With ICC
