CAN

MAIN LINE BETWEEN AV AND M&A CIRCUIT

Diagnosis Procedure


1. CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

1.Turn the ignition switch OFF.
2.Disconnect the battery cable from the negative terminal.
3.Disconnect the following harness connectors.
- ECM
-AV control unit
-Combination meter
4.Check the continuity between the AV control unit harness connector and the combination meter harness connector.

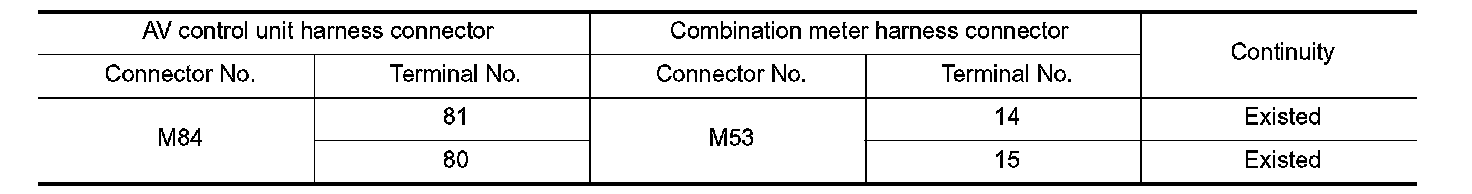

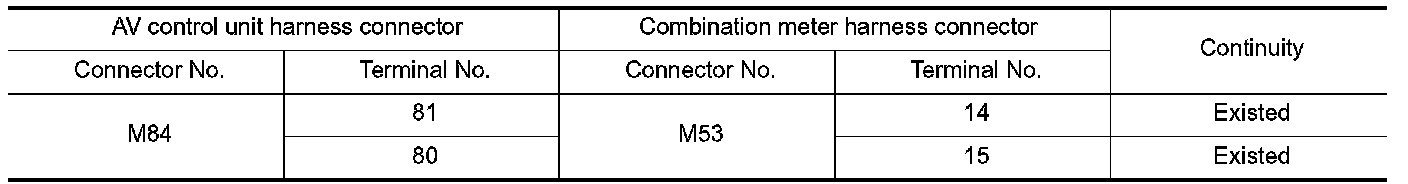

-Models with navigation system

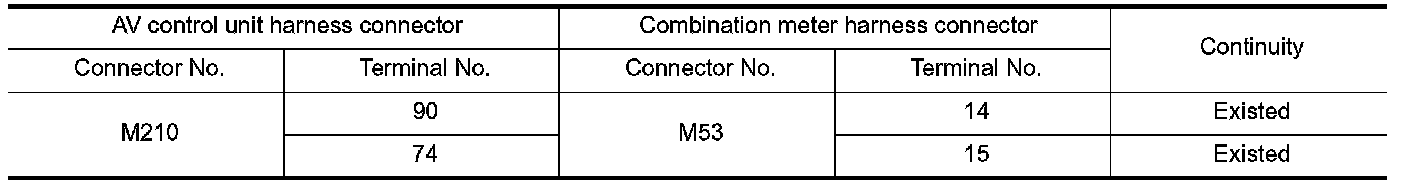

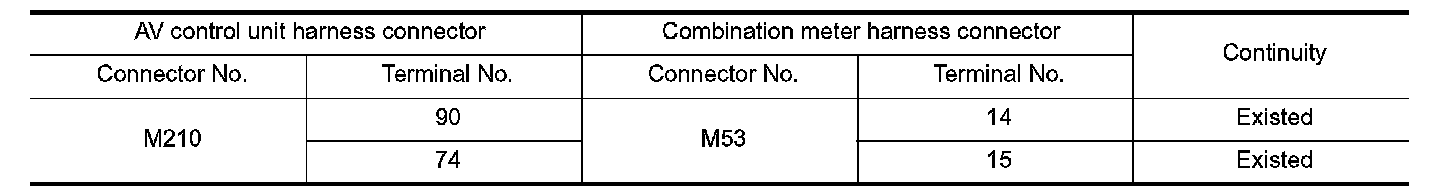

-Models without navigation system





Is the inspection result normal?
YES (Present error)-Check CAN system type decision again.
YES (Past error)-Error was detected in the main line between the AV control unit and the combination meter.
NO- Replace the PCB harness.
