CAN

BCM BRANCH LINE CIRCUIT

Diagnosis Procedure


1. CHECK CONNECTOR

1.Turn the ignition switch OFF.
2.Disconnect the battery cable from the negative terminal.
3.Check the following terminals and connectors for damage, bend and loose connection (unit side and connector side).
- BCM
-Harness connector M22 and PCB harness side connector
Is the inspection result normal?
YES- GO TO 2.
NO- Repair the terminal and connector.

2. CHECK HARNESS FOR OPEN CIRCUIT

1.Disconnect the connector of BCM.

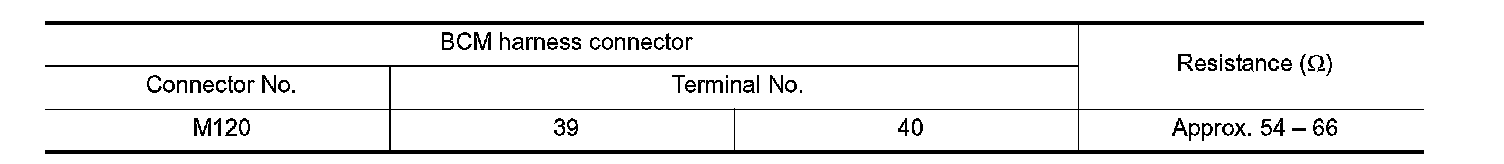

2.Check the resistance between the BCM harness connector terminals.





Is the measurement value within the specification?
YES- GO TO 3.
NO- GO TO 4.

3. CHECK POWER SUPPLY AND GROUND CIRCUIT

Check the power supply and the ground circuit of the BCM. Power Supply And Ground Circuit.
Is the inspection result normal?
YES (Present error)-Replace the BCM. Service and Repair.
YES (Past error)-Error was detected in the BCM branch line.
NO- Repair the power supply and the ground circuit.

4. CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

1.Disconnect the harness connector M22.

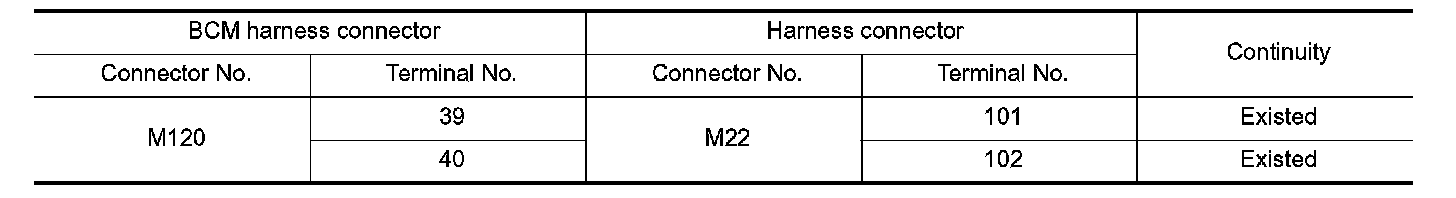

2.Check the continuity between the BCM harness connector and the harness connector.





Is the inspection result normal?
YES- Replace the PCB harness.
NO- Repair the harness between the BCM harness connector M120 and the harness connector M22.
