System Diagram

SYSTEM

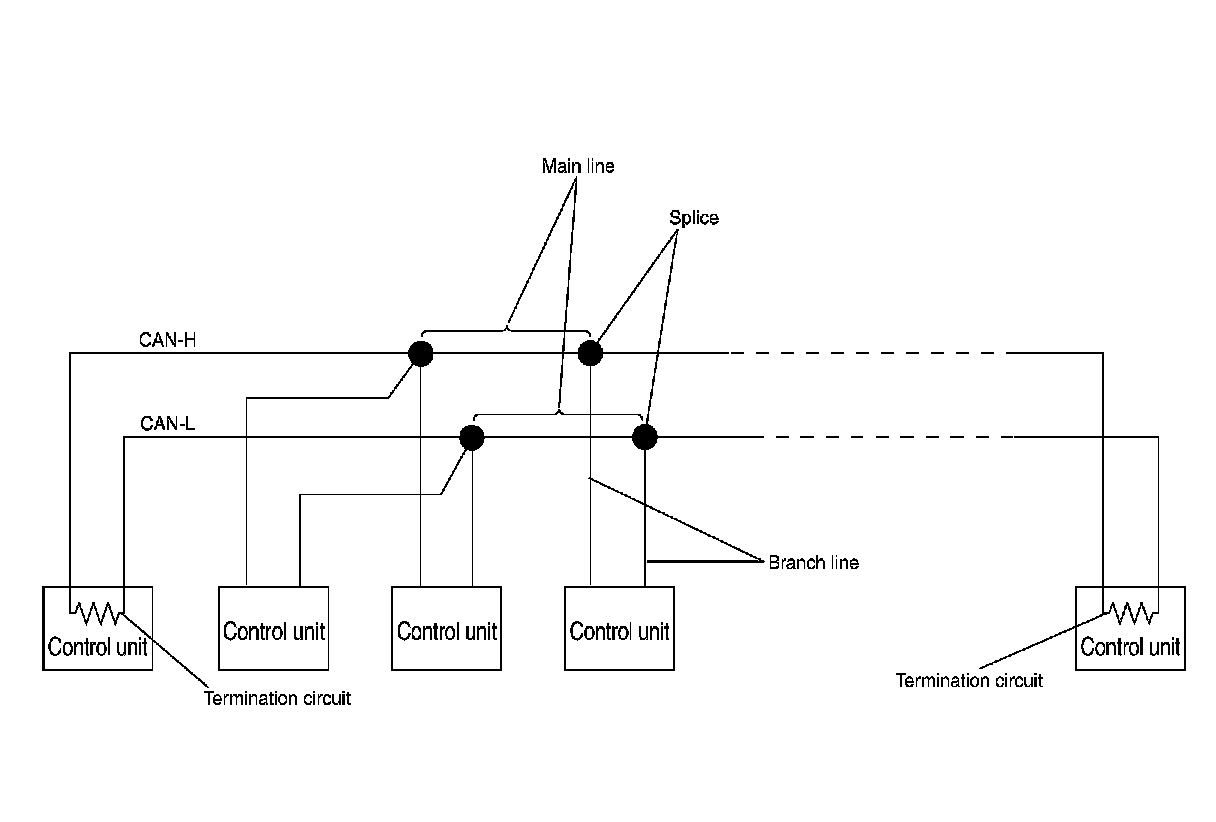

CAN COMMUNICATION SYSTEM : System Diagram






Each control unit passes an electric current to the termination circuits when transmitting CAN communication signal. The termination circuits produce an electrical potential difference between CAN-H and CAN-L. CAN
communication system transmits and receives CAN communication signals by the potential difference.
