With Distance Control Assist System

ACCELERATOR CONTROL SYSTEM

MODELS WITH DISTANCE CONTROL ASSIST SYSTEM : Removal and Installation


REMOVAL

1.Remove instrument panel lower cover.
2.Remove knee pad.
3.Remove A/C air duct (left side).
4.Remove mounting nuts of accelerator pedal assembly.
5.Remove the cap and the inside mounting nut, and remove mounting nuts of accelerator pedal unit.
6.Disconnect accelerator pedal position sensor harness connector and remove accelerator pedal assembly.

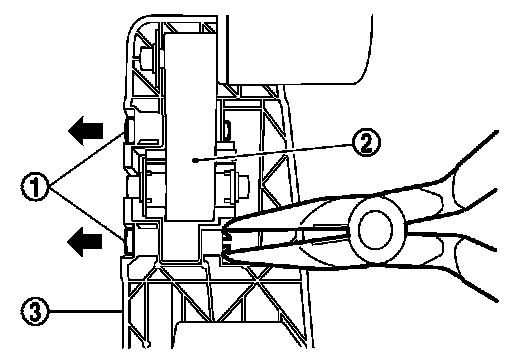

7.Press the pins (1) with long-nose pliers and pull them out in the direction shown by the arrow (black arrow). to separate accelerator pedal unit (2) and accelerator pad(3).

CAUTION:
Never disassemble accelerator pedal assembly.

CAUTION:
- Never remove accelerator pedal position sensor from accelerator pedal assembly.
- Avoid impact from dropping etc. during handling.
- Be careful to keep accelerator pedal assembly away from water.

INSTALLATION

Installation is the reverse order of removal.
