M37x AWD V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Testing and Inspection
>>
Initial Inspection and Diagnostic Overview
>>
Fail Safe
>>
AFS Control Unit
AFS Control Unit
AFS CONTROL UNIT

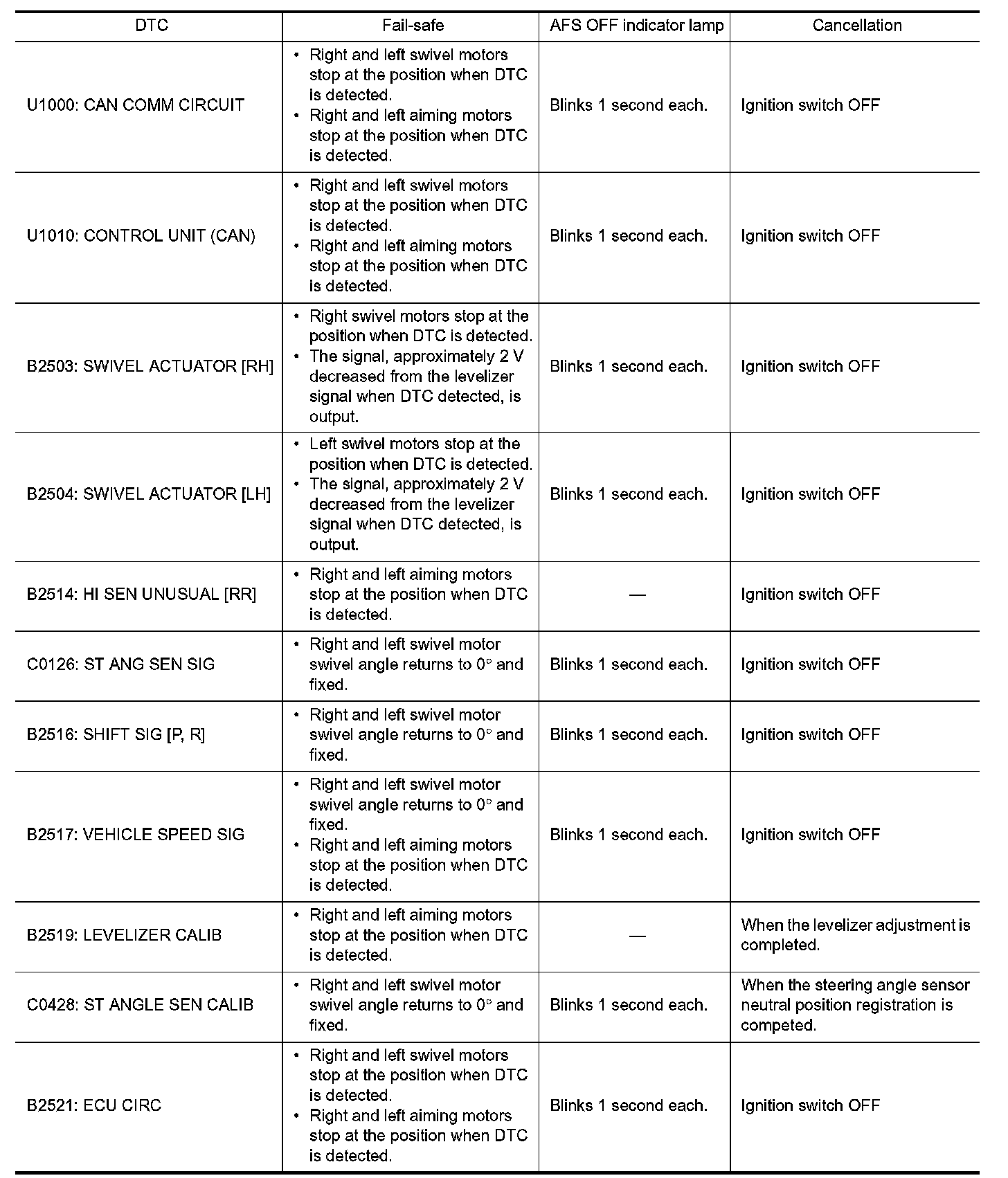

Fail-Safe
