Pinout Values and Diagnostic Parameters

LOW TIRE PRESSURE WARNING CONTROL UNIT

Reference Value

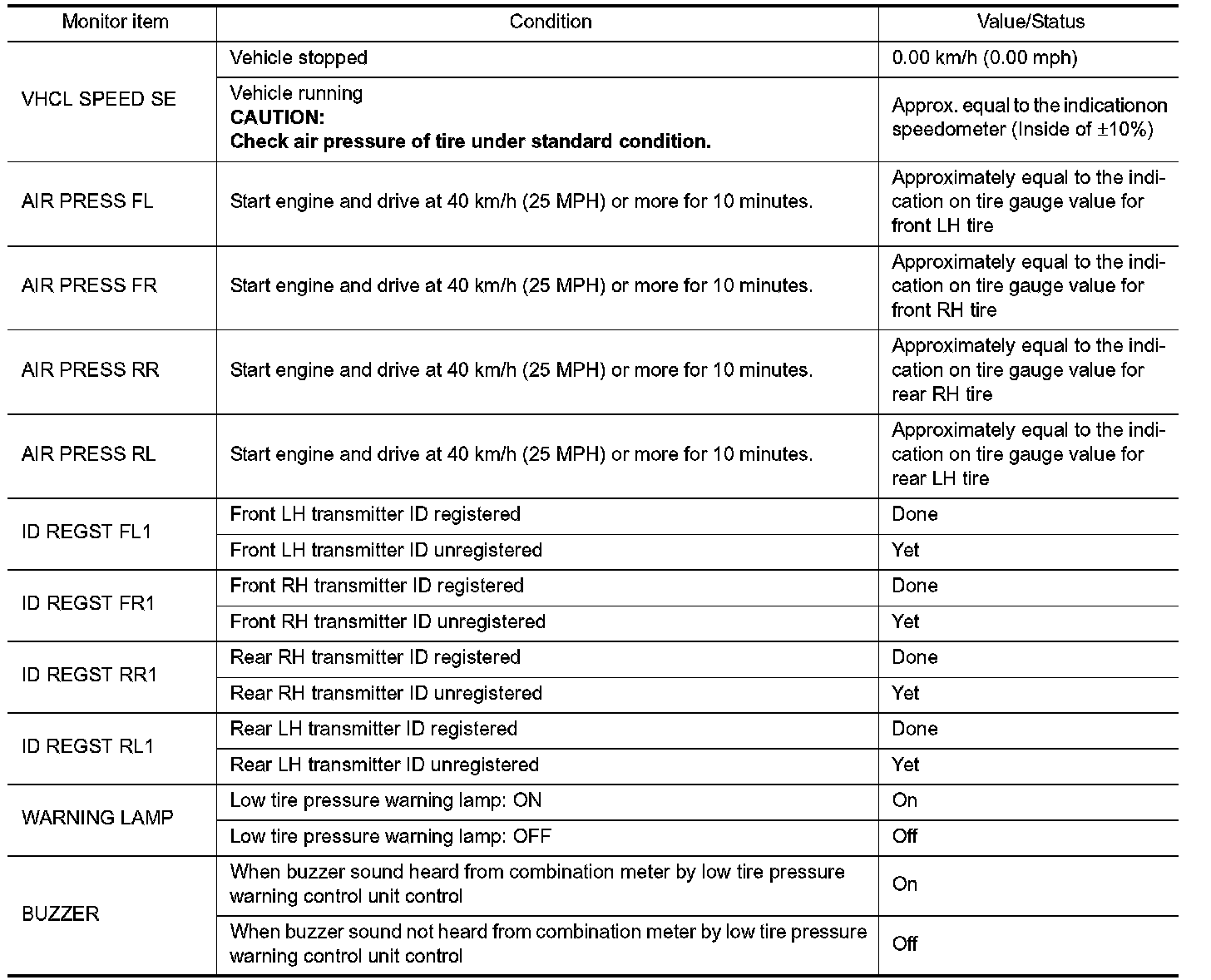

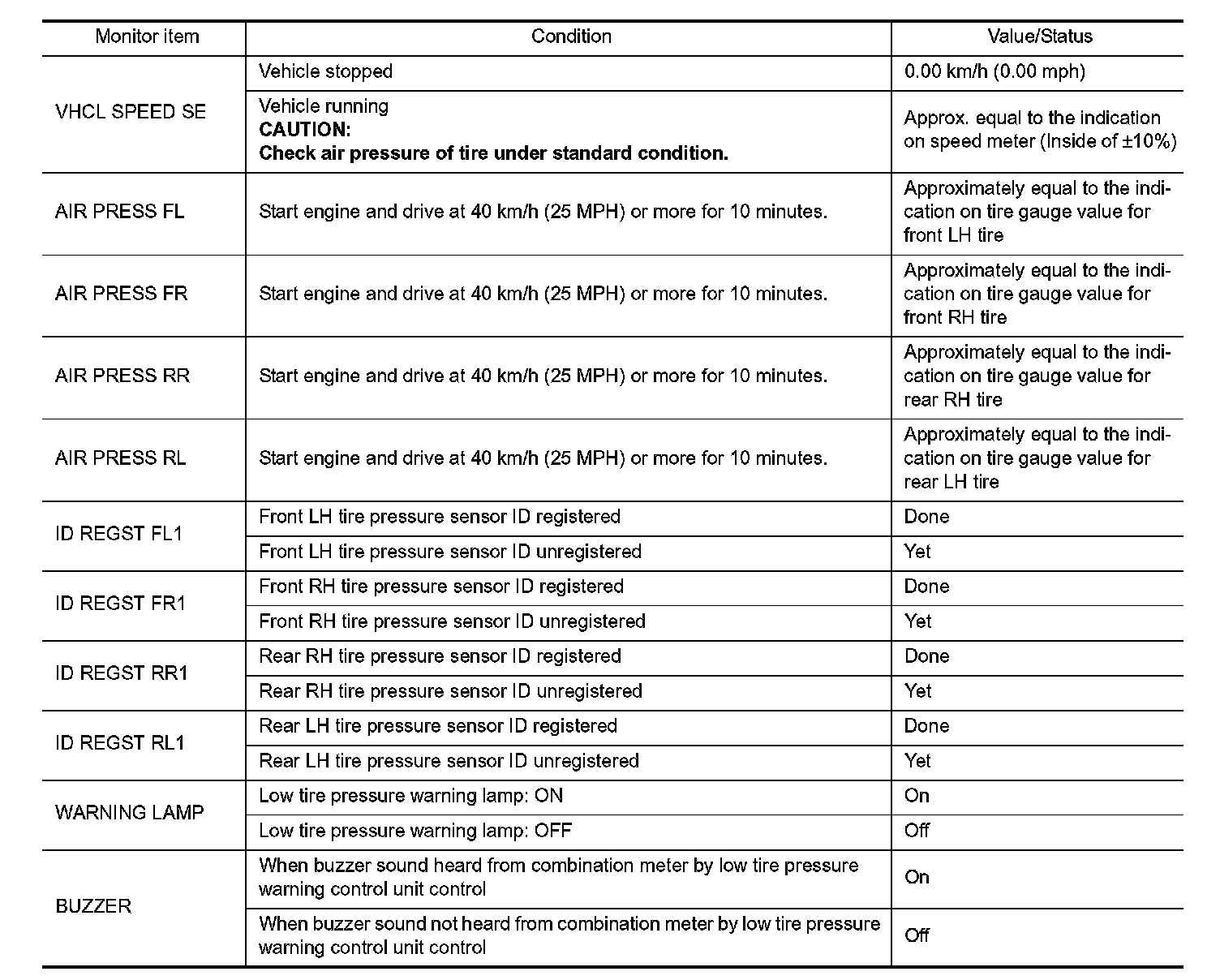

VALUES ON THE DIAGNOSIS TOOL


CAUTION:
The reference values in the table below come from the control unit calculation data. The normal values may in some cases be displayed even though the power circuit (harness) is open or shorted.

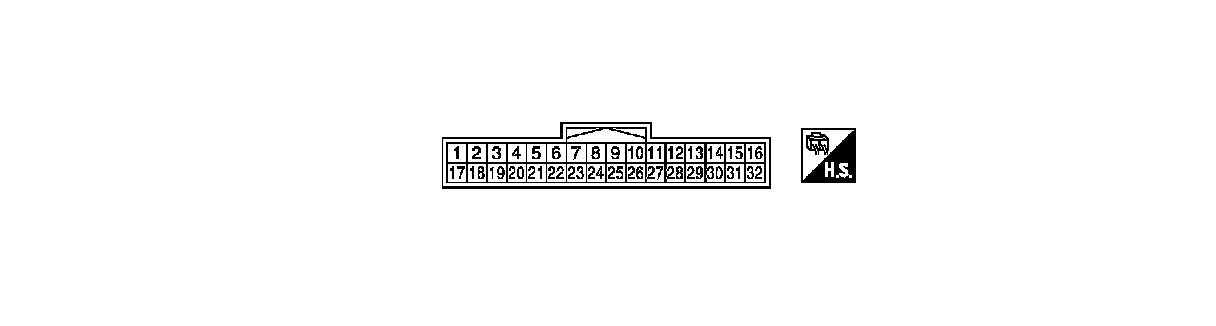

TERMINAL LAYOUT

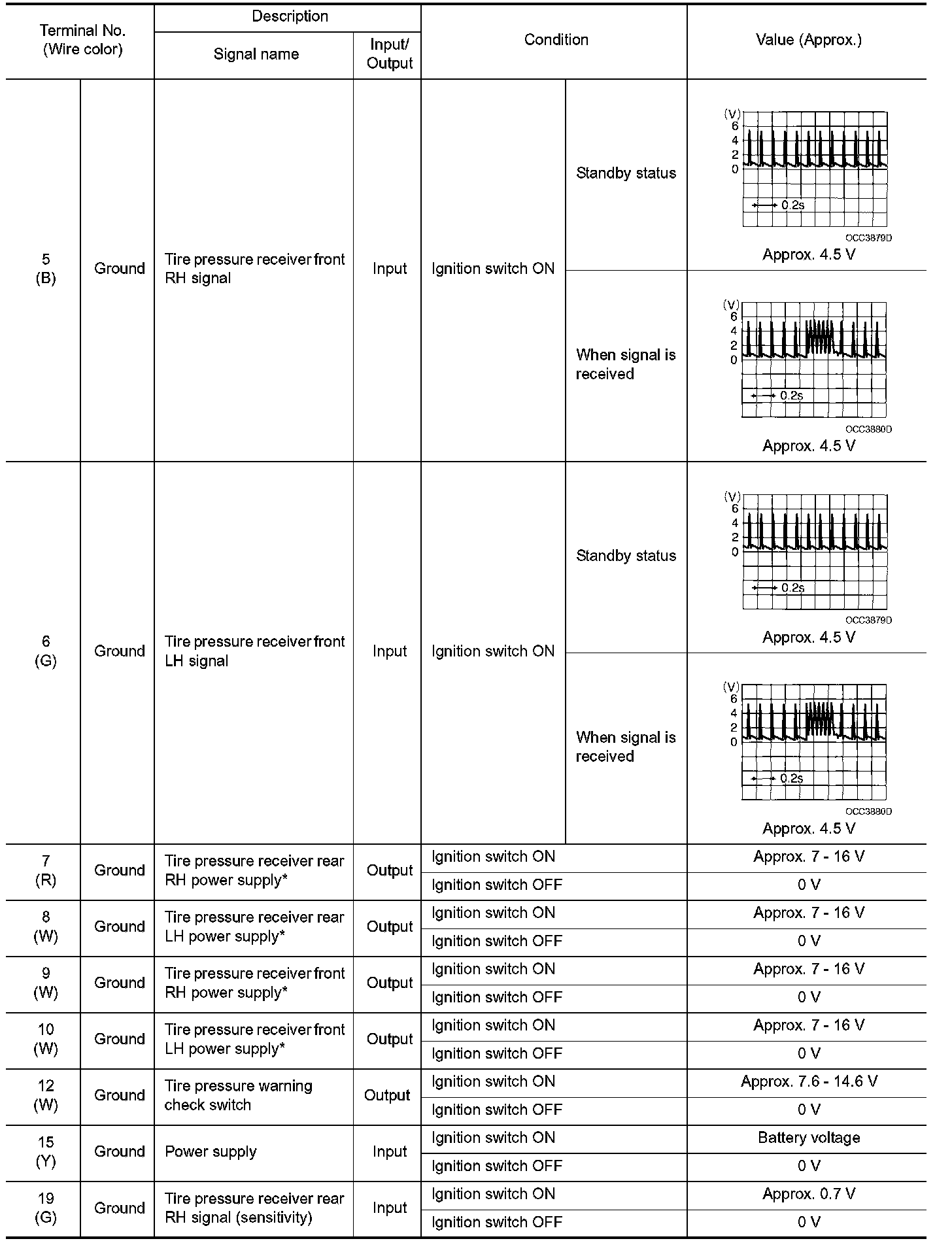

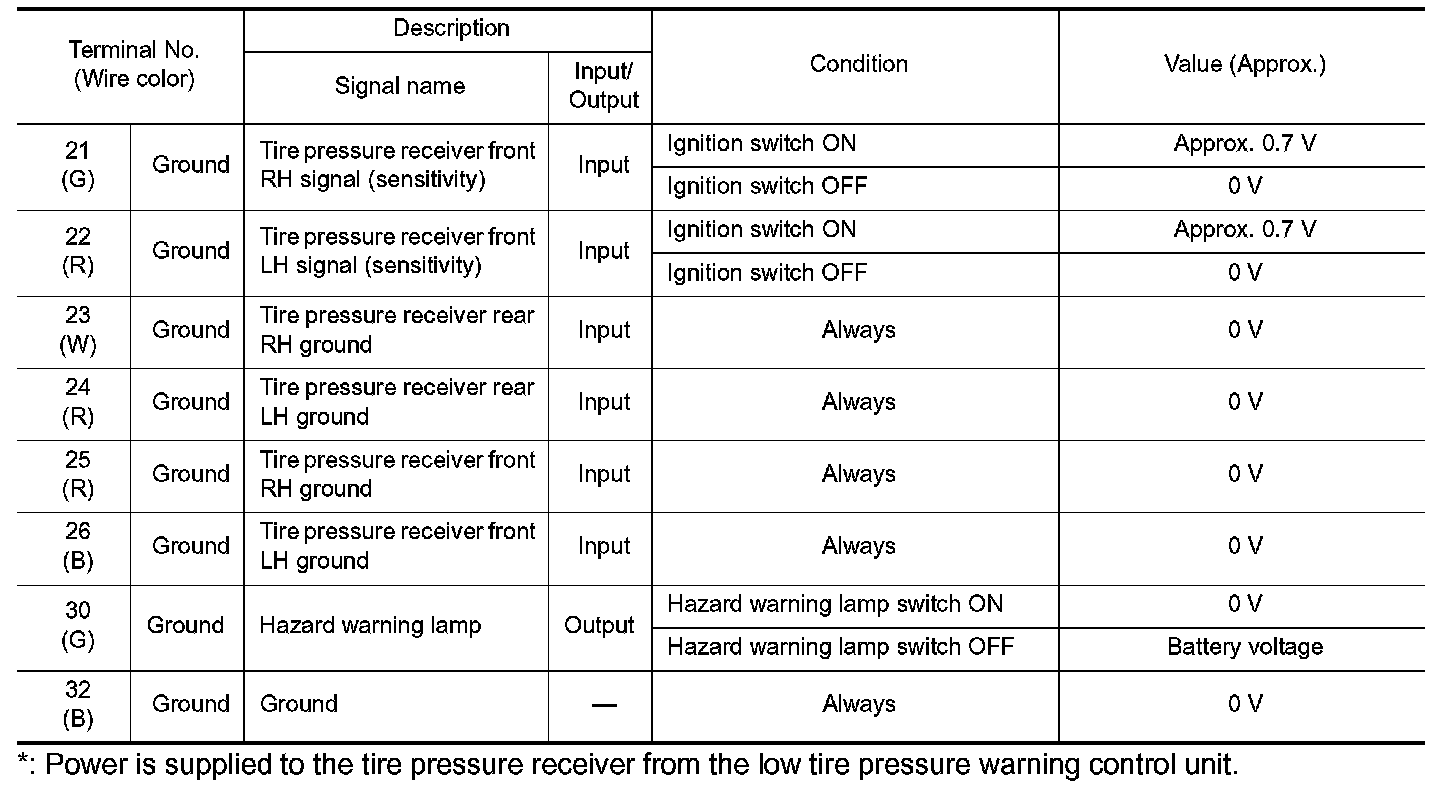

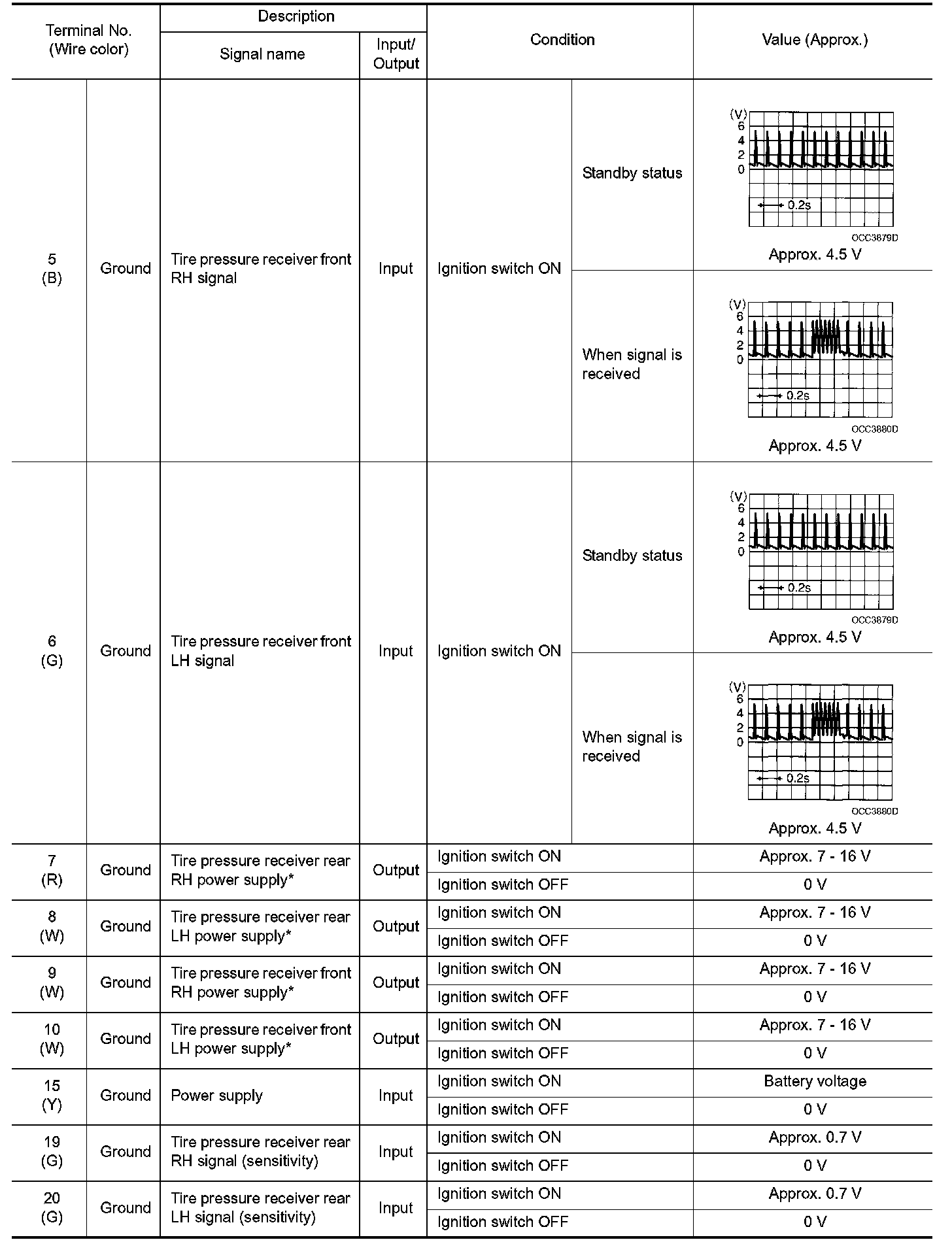

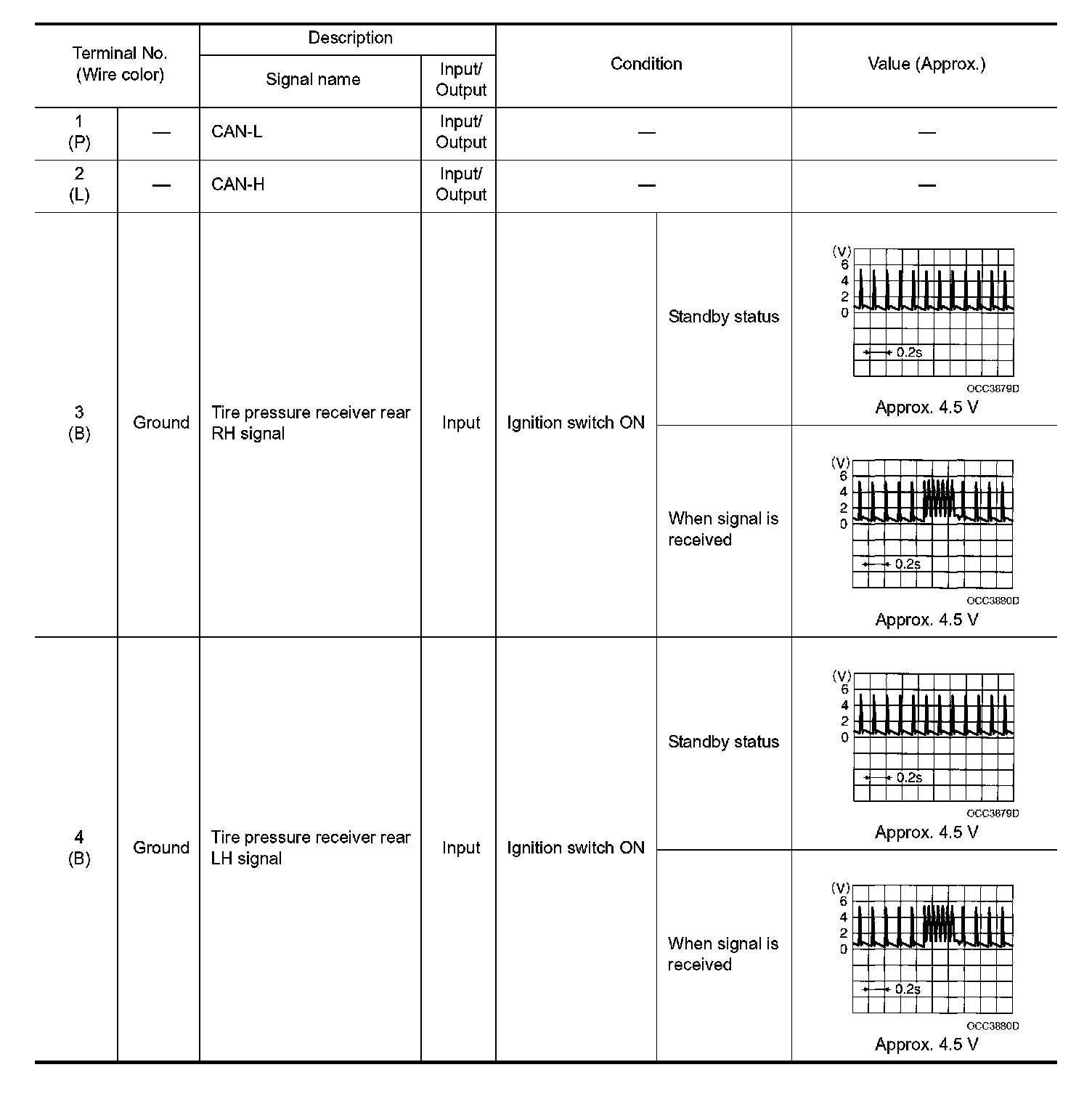

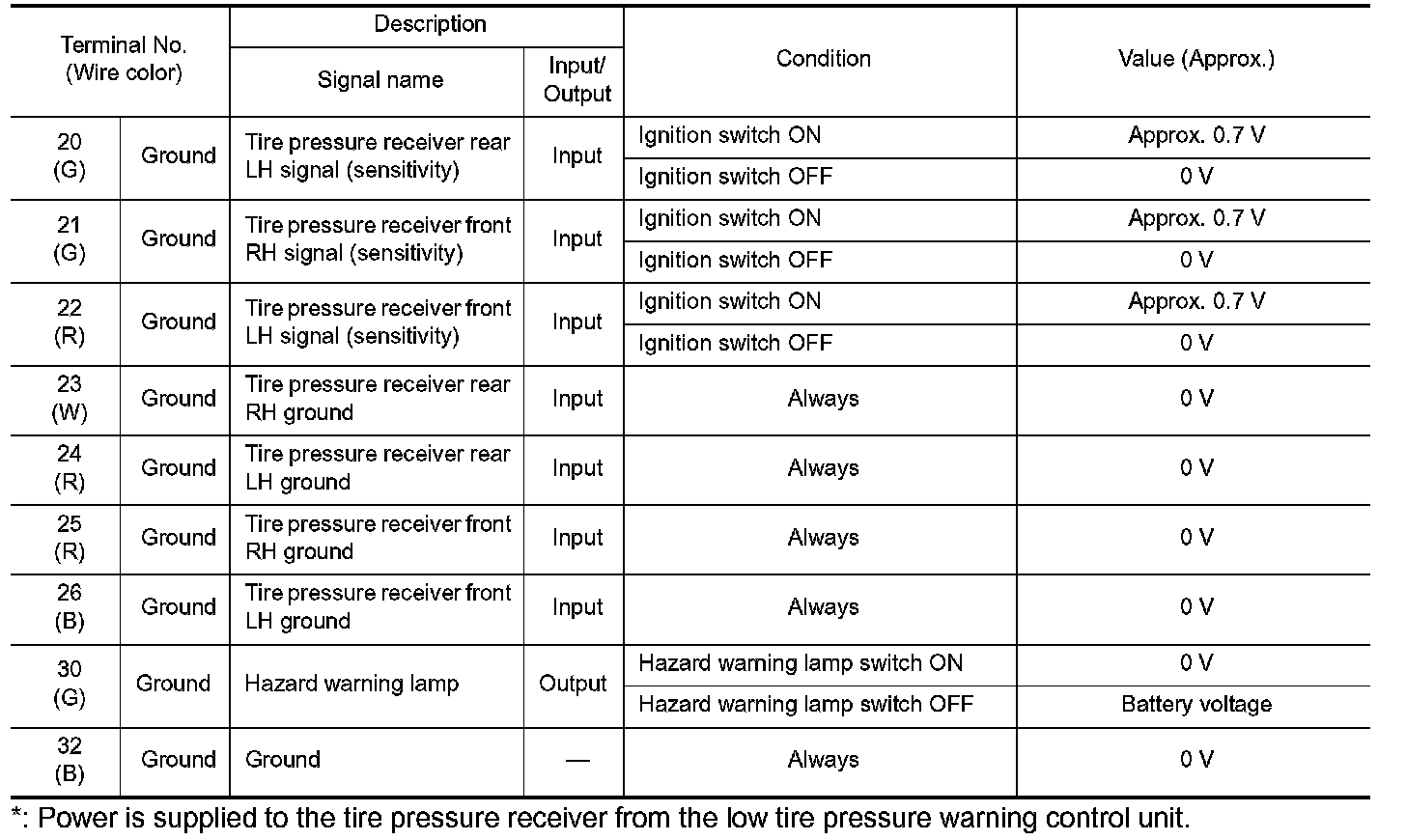

PHYSICAL VALUES


CAUTION:
When using circuit tester to measure voltage for inspection, be sure not to extend forcibly any connector terminals.















*: Power is supplied to the tire pressure receiver from the low tire pressure warning control unit.
