Oil Pressure Switch Signal Circuit

OIL PRESSURE SWITCH SIGNAL CIRCUIT (VQ37VHR ENGINE MODELS)

Component Function Check


1. CHECK COMBINATION METER INPUT SIGNAL

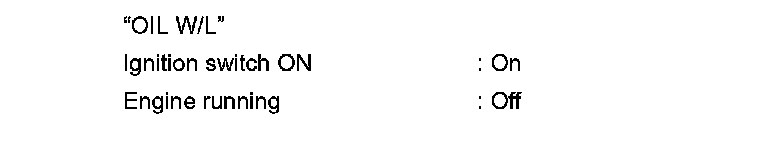

Select the "Data Monitor" for the "METER/M&A" and check the "OIL W/L" monitor value.





- INSPECTION END


Diagnosis Procedure


1. CHECK OIL PRESSURE SWITCH CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect IPDM E/R connector and oil pressure switch connector.

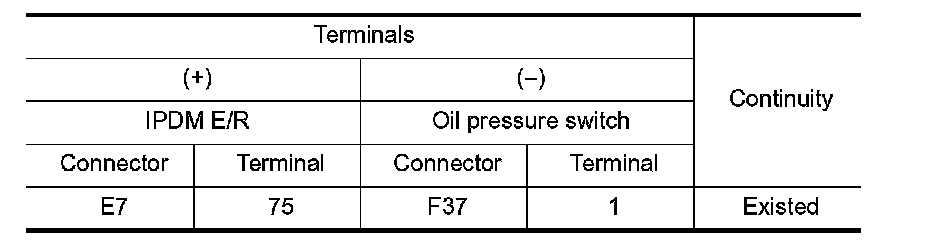

3.Check continuity between IPDM E/R harness connector and oil pressure switch harness connector.

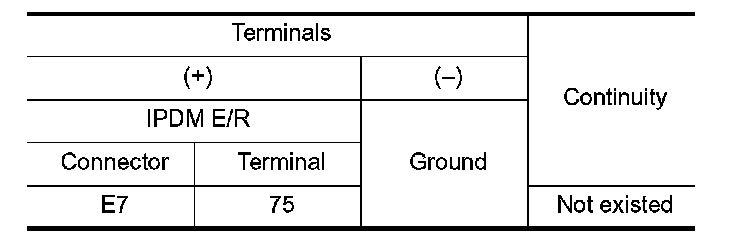

4.Check continuity between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES- INSPECTION END
NO- Repair harness or connector.


Component Inspection


1. CHECK OIL PRESSURE SWITCH

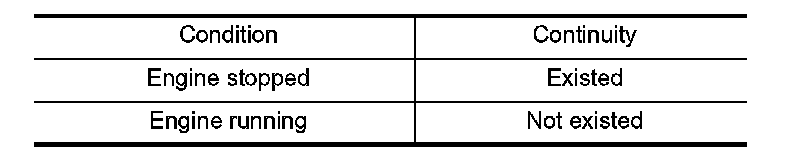

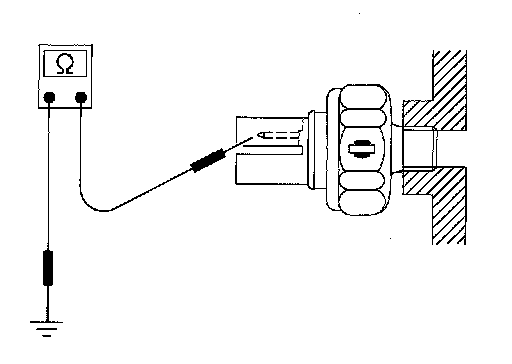

Check continuity between oil pressure switch and ground.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace oil pressure switch. Disassembly And Assembly (2WD models)
or Removal And Installation (AWD).
