Inlet Port Memory Function (REC)

SYSTEM SETTING

AUTOMATIC AIR CONDITIONING SYSTEM : Inlet Port Memory Function (REC)


DESCRIPTION

- If the ignition switch is turned to the OFF position while the REC indicator is set to ON (recirculation), "Perform the memory" or "Do not perform the memory" of REC indicator ON (recirculation) condition can be selected.
- If "Perform the memory" was set, the REC indicator will be ON (recirculation) when turning the ignition switch to the ON position again.
- If "Do not perform the memory" was set, the air inlets will be controlled automatically when turning the ignition switch to the ON position again.

HOW TO SET

With CONSULT

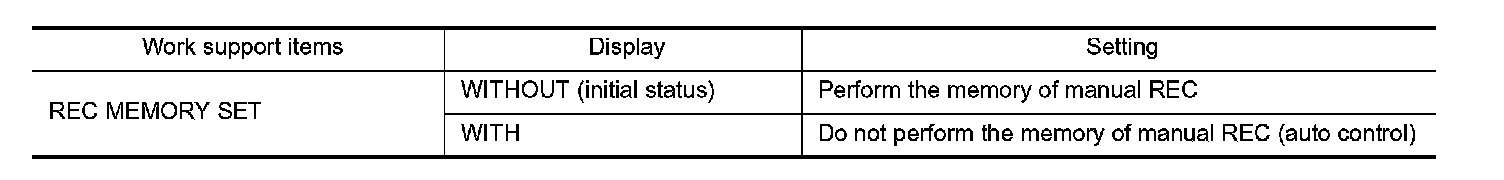

Perform the "REC MEMORY SET" of HVAC work support item.
