Inlet Port Memory Function (FRE)

SYSTEM SETTING

AUTOMATIC AIR CONDITIONING SYSTEM : Inlet Port Memory Function (FRE)


DESCRIPTION

- If the ignition switch is turned to the OFF position while the FRE indicator is set to ON (fresh air intake), "Perform the memory" or "Do not perform the memory" of FRE indicator ON (fresh air intake) condition can be selected.
- If "Perform the memory" was set, the FRE indicator will be ON (fresh air intake) when turning the ignition switch to the ON position again.
- If "Do not perform the memory" was set, the air inlets will be controlled automatically when turning the ignition switch to the ON position again.

HOW TO SET

With CONSULT

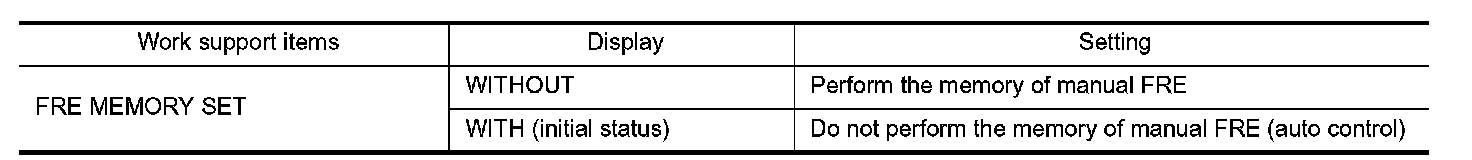

Perform the "FRE MEMORY SET" of HVAC work support item.
