Reference Value

A/C AUTO AMP.

Reference Value(AUTOMATIC AIR CONDITIONING)

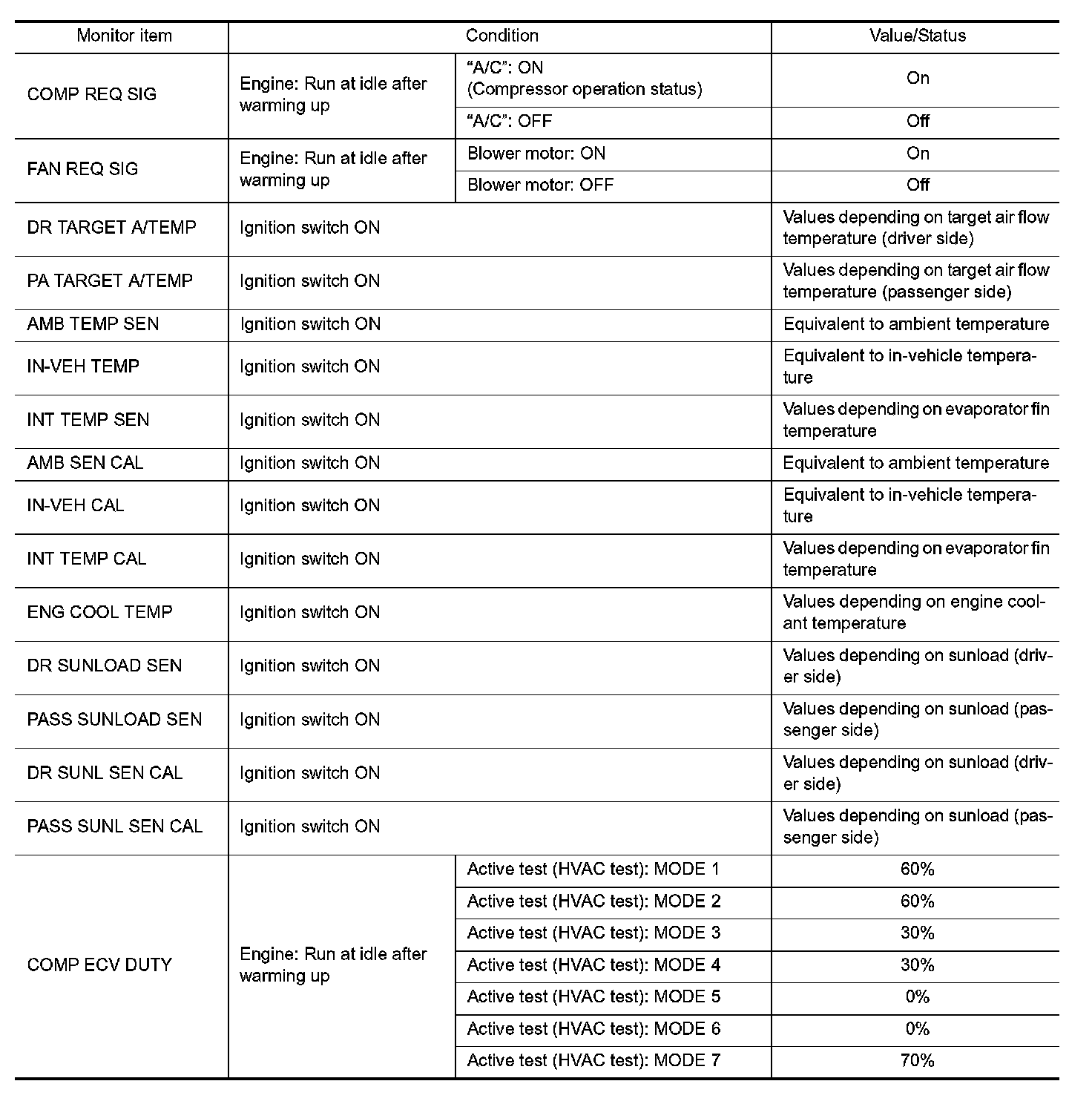

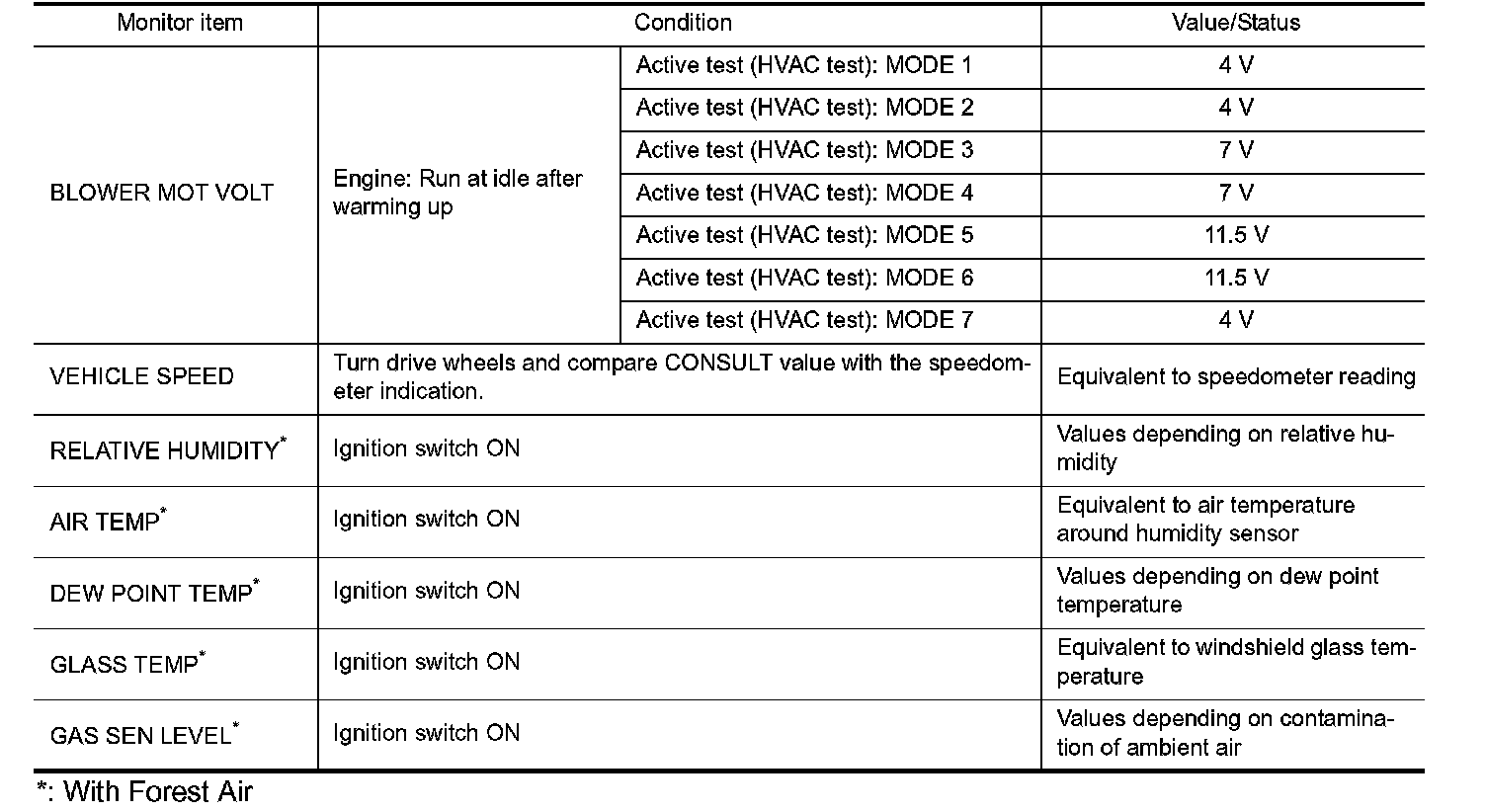

CONSULT DATA MONITOR REFERENCE VALUES











*: With Forest Air

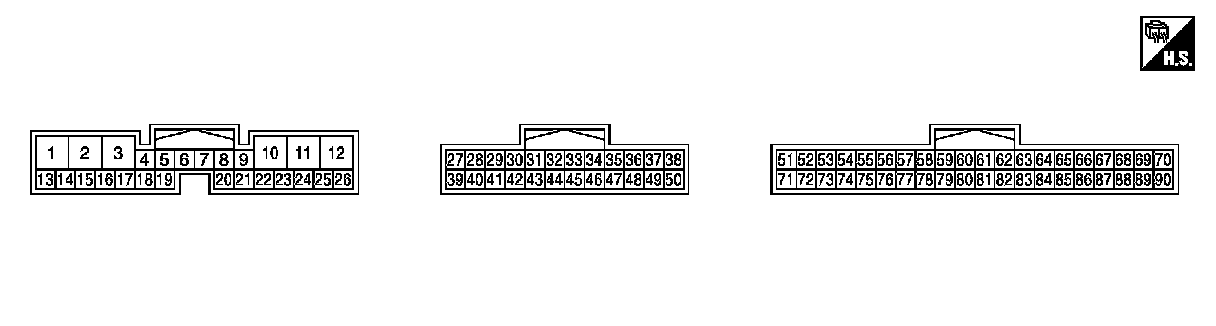

TERMINAL LAYOUT

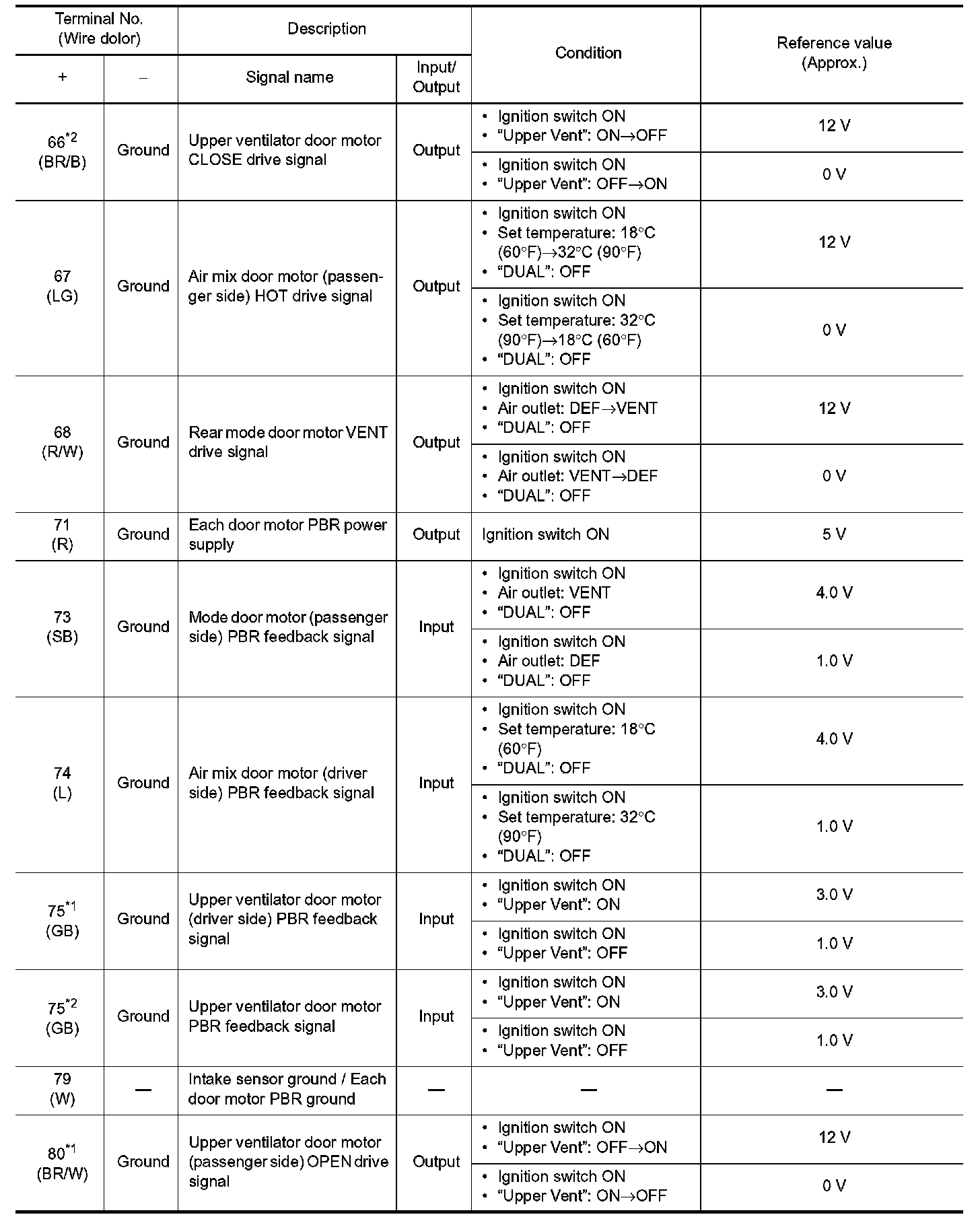

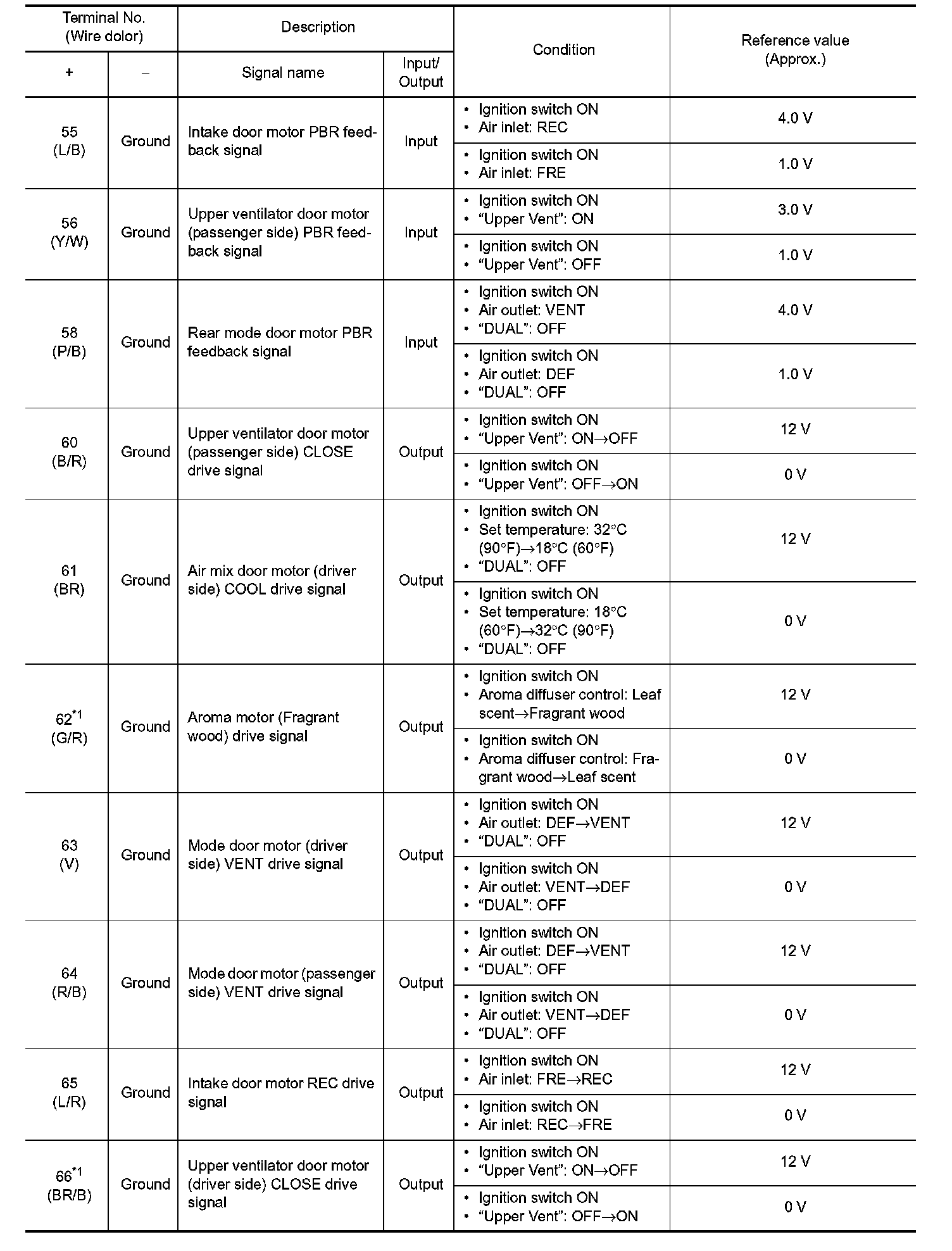

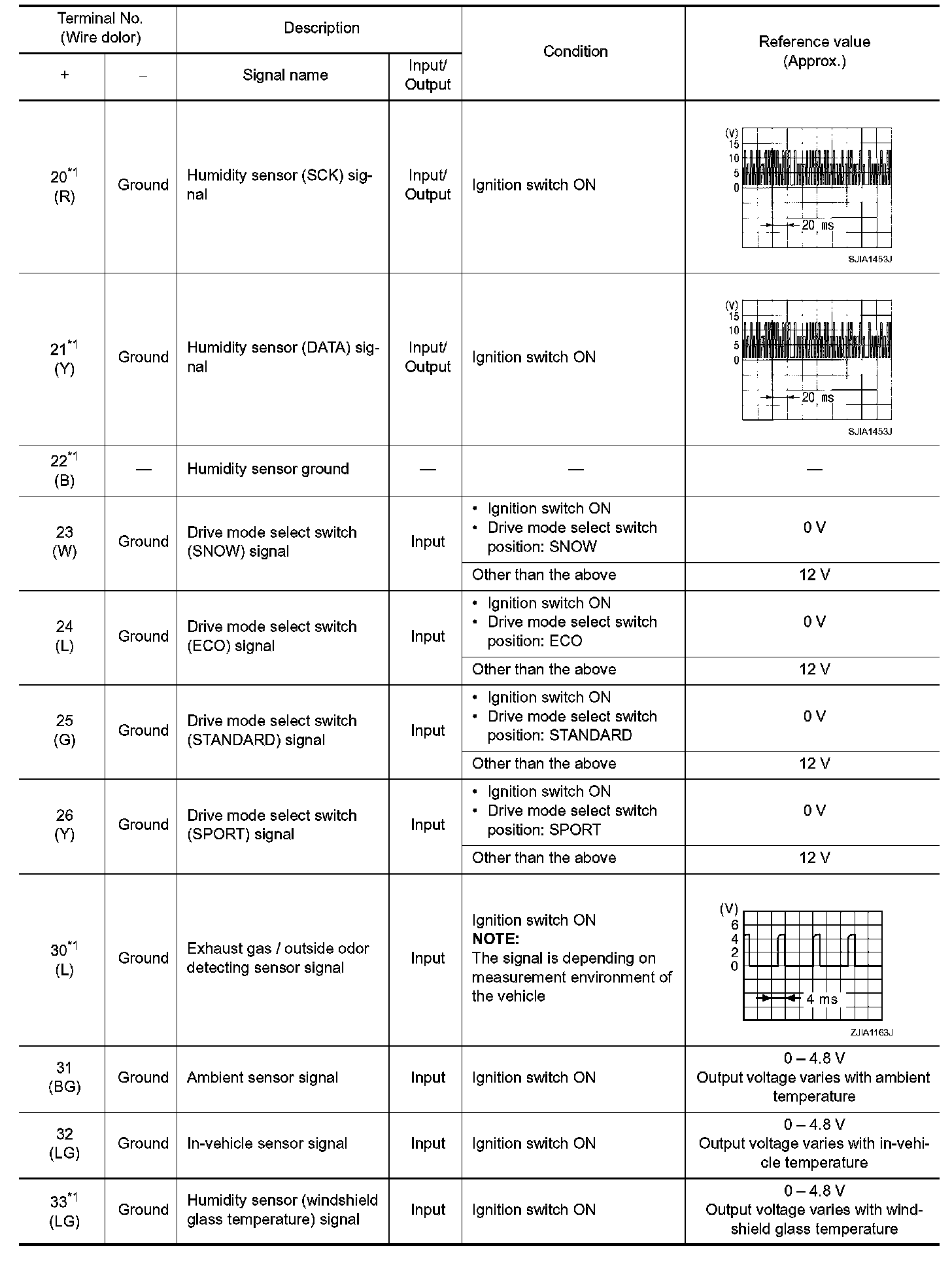

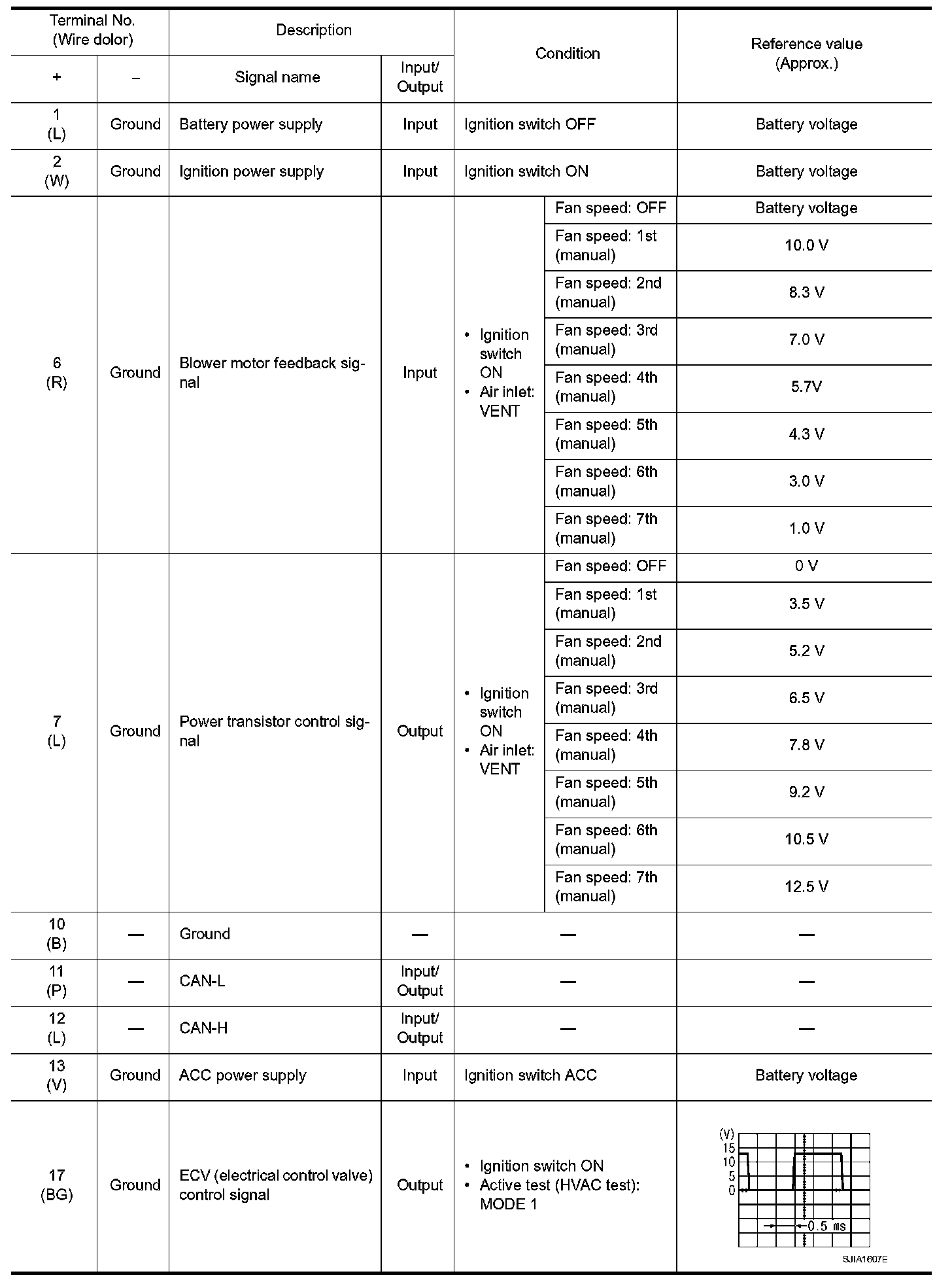

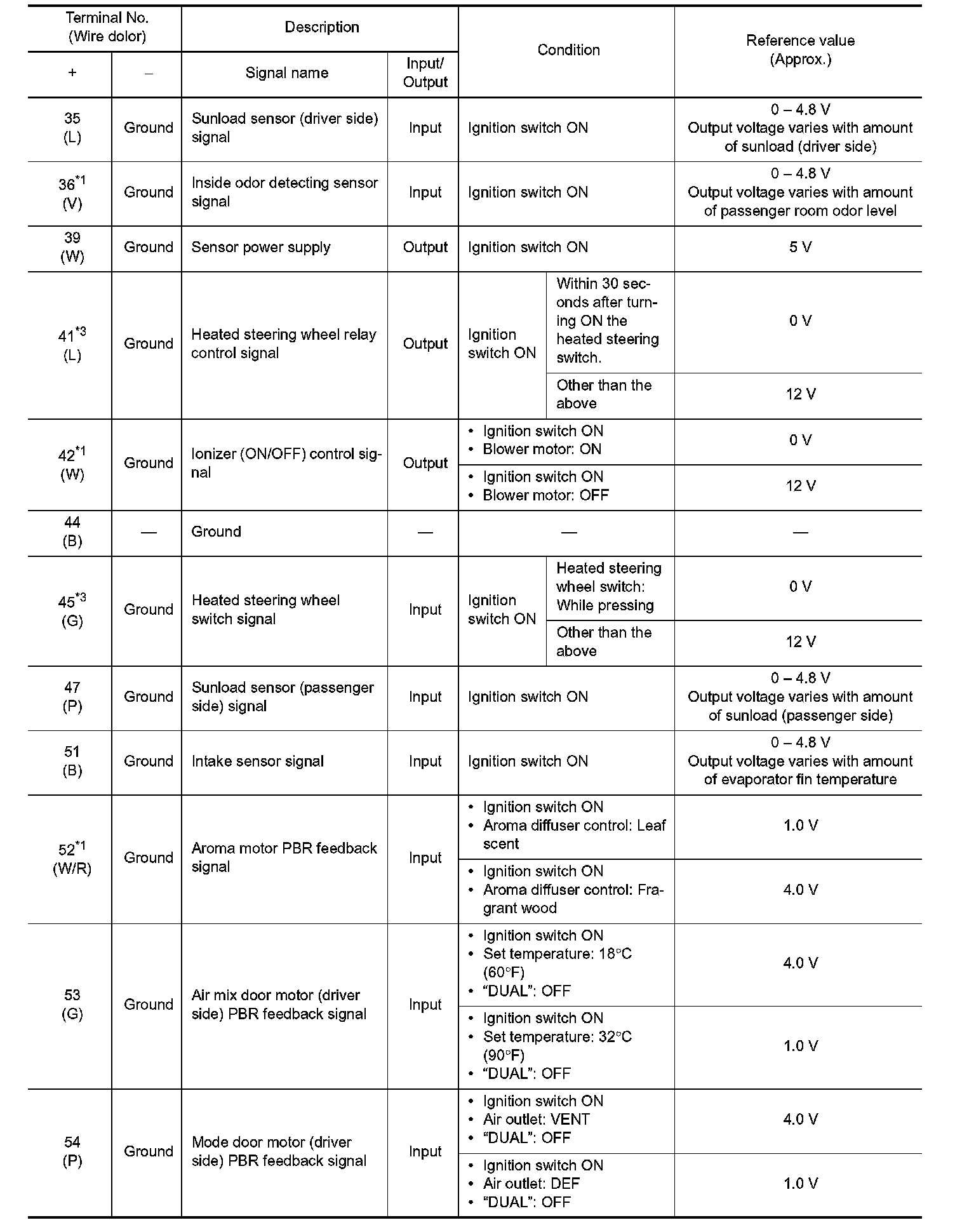

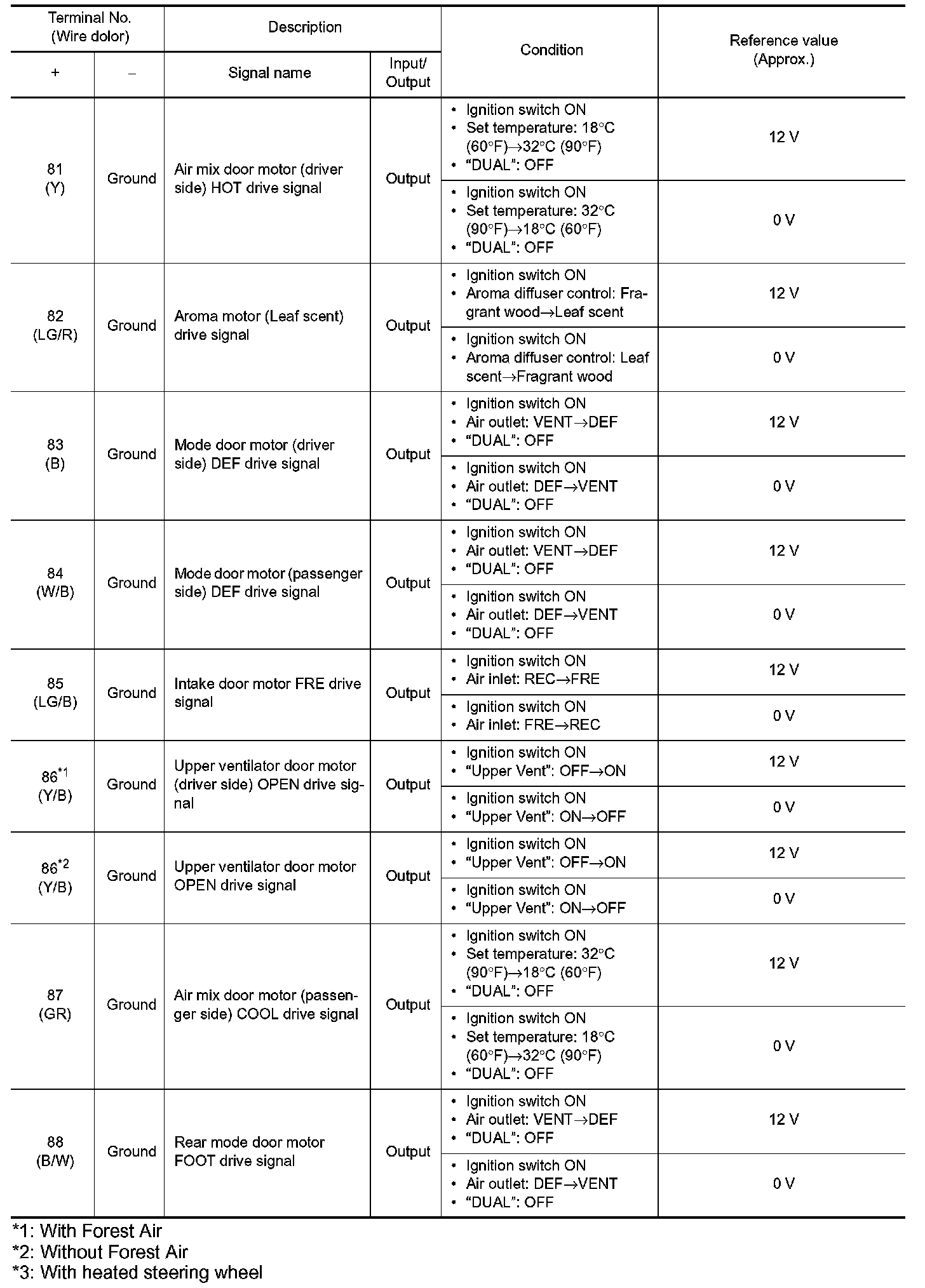

PHYSICAL VALUES











































*1: With Forest Air
*2: Without Forest Air
*3: With heated steering wheel
