Intelligent Key Interlock Function

SYSTEM

FOREST AIR SYSTEM : Intelligent Key Interlock Function


DESCRIPTION

- Setting value of Forest Air system when ignition switch is previously OFF can be memorized for each Intelligent Key. Forest Air system is automatically operated by the setting value.
NOTE:
Setting value can be memorized for up to 3 Intelligent Keys.

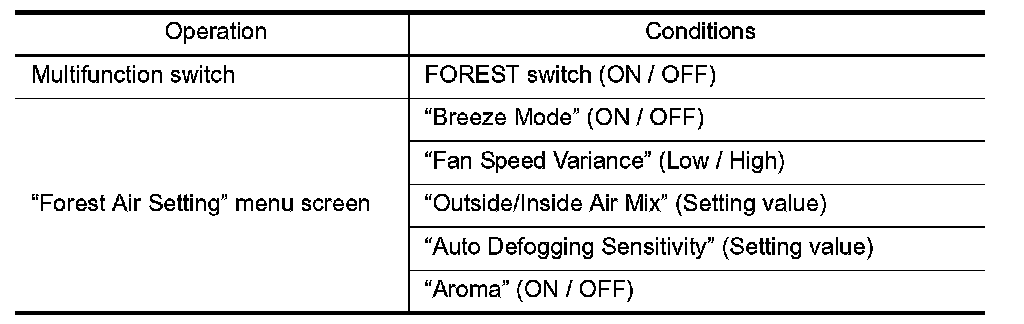

- Interlock items are as per the following table.






Operation Description

Memory
1.Unlock door using Intelligent Key or driver door request switch.
2.BCM transmits Key ID signal to A/C auto amp. via CAN communication line.
3.When ignition switch turns OFF, A/C auto amp. memorizes setting information ("Breeze Mode" status, "Aroma" status, and others) of Forest Air system to memory for each Key ID.
Readout
1.Unlock door using Intelligent Key or driver door request switch.
2.BCM transmits Key ID signal to A/C auto amp. via CAN communication line.
3.When ignition switch turns ON, A/C auto amp. operates automatically Forest Air system according to setting information of Key ID that is received.
NOTE:
When Intelligent Key interlock function operates, "Connection with the key has been done." is displayed.
