ADAS Control Unit
ADAS Control Unit
ADAS CONTROL UNIT
Reference Value

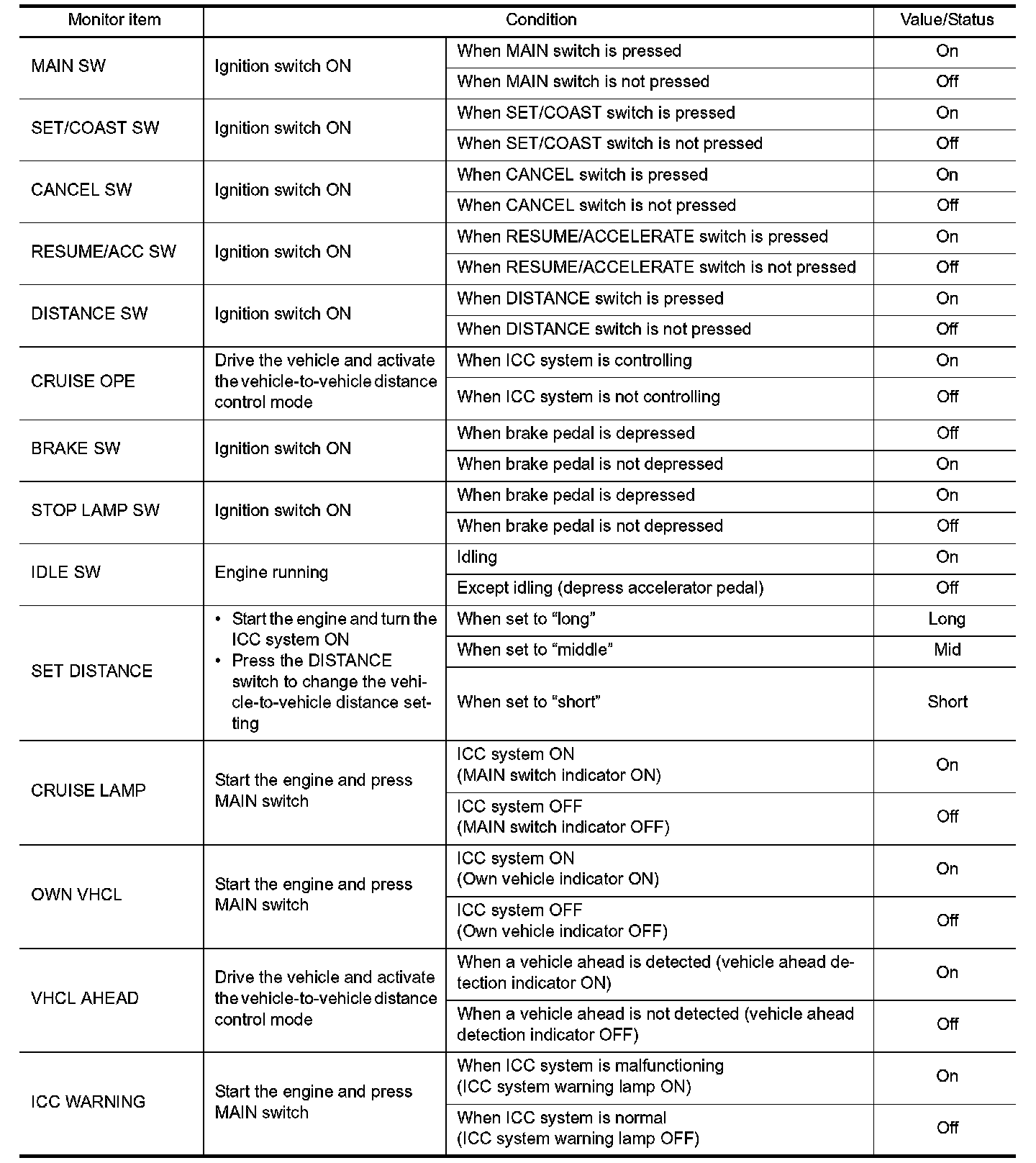

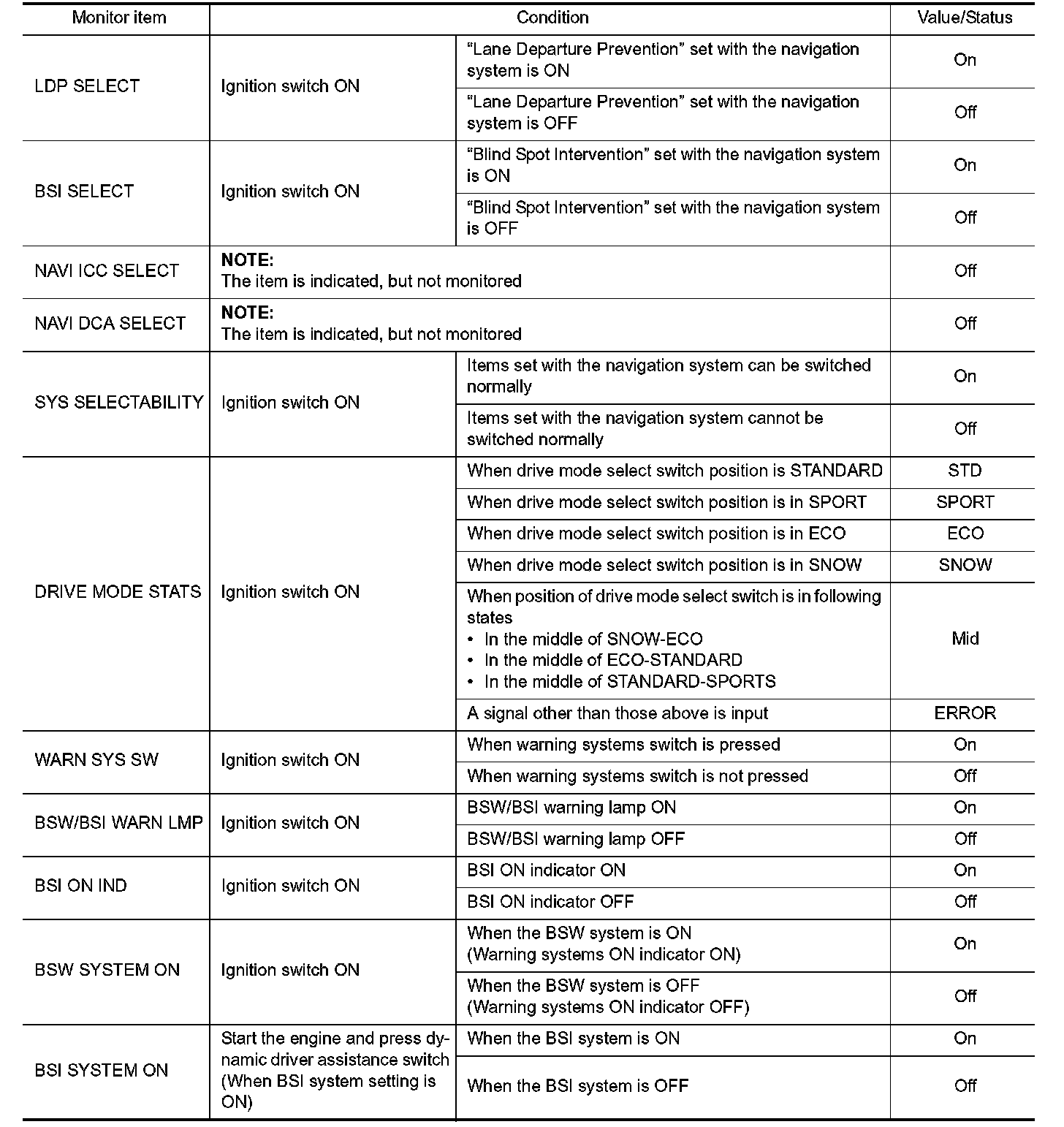

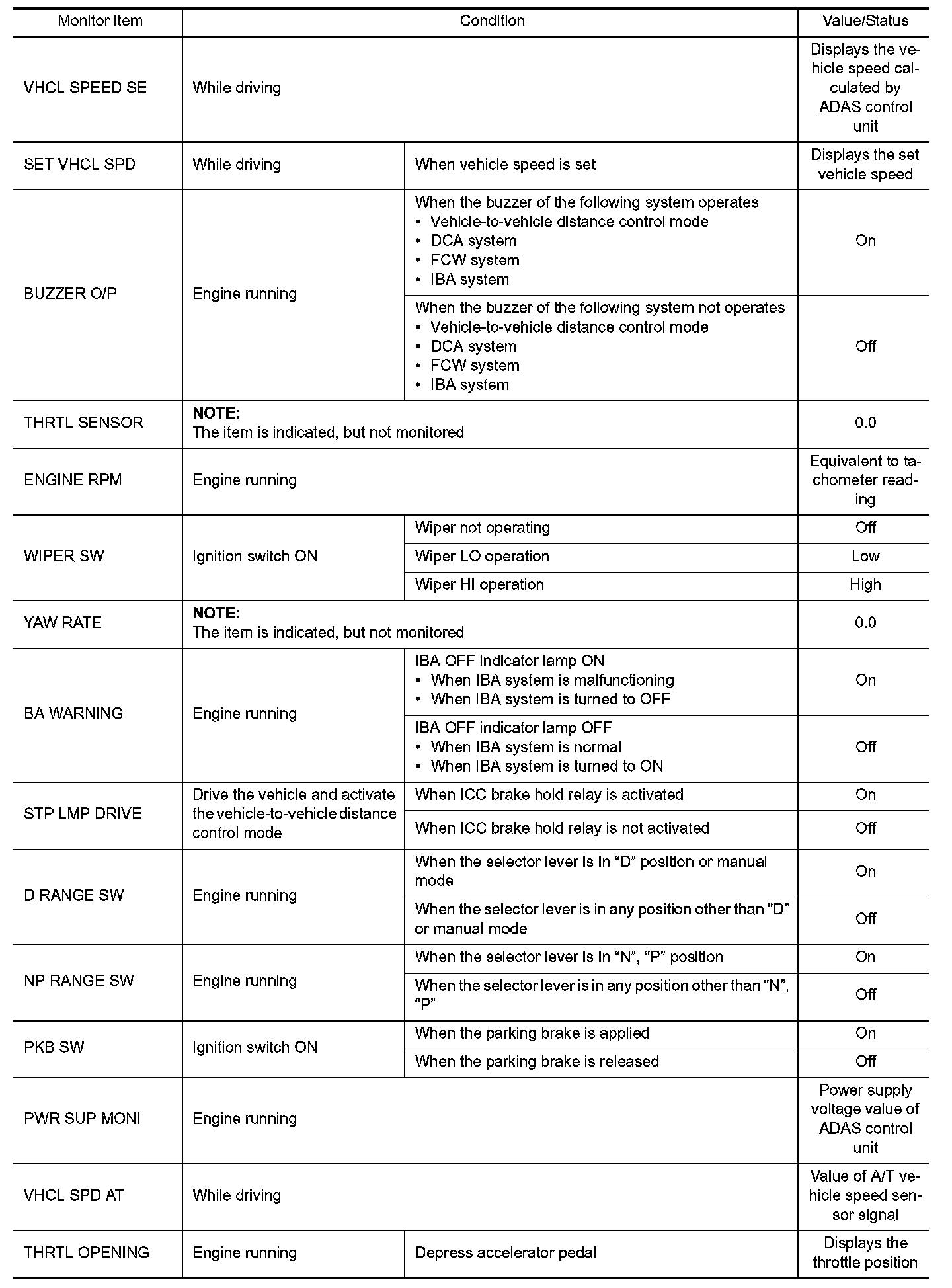

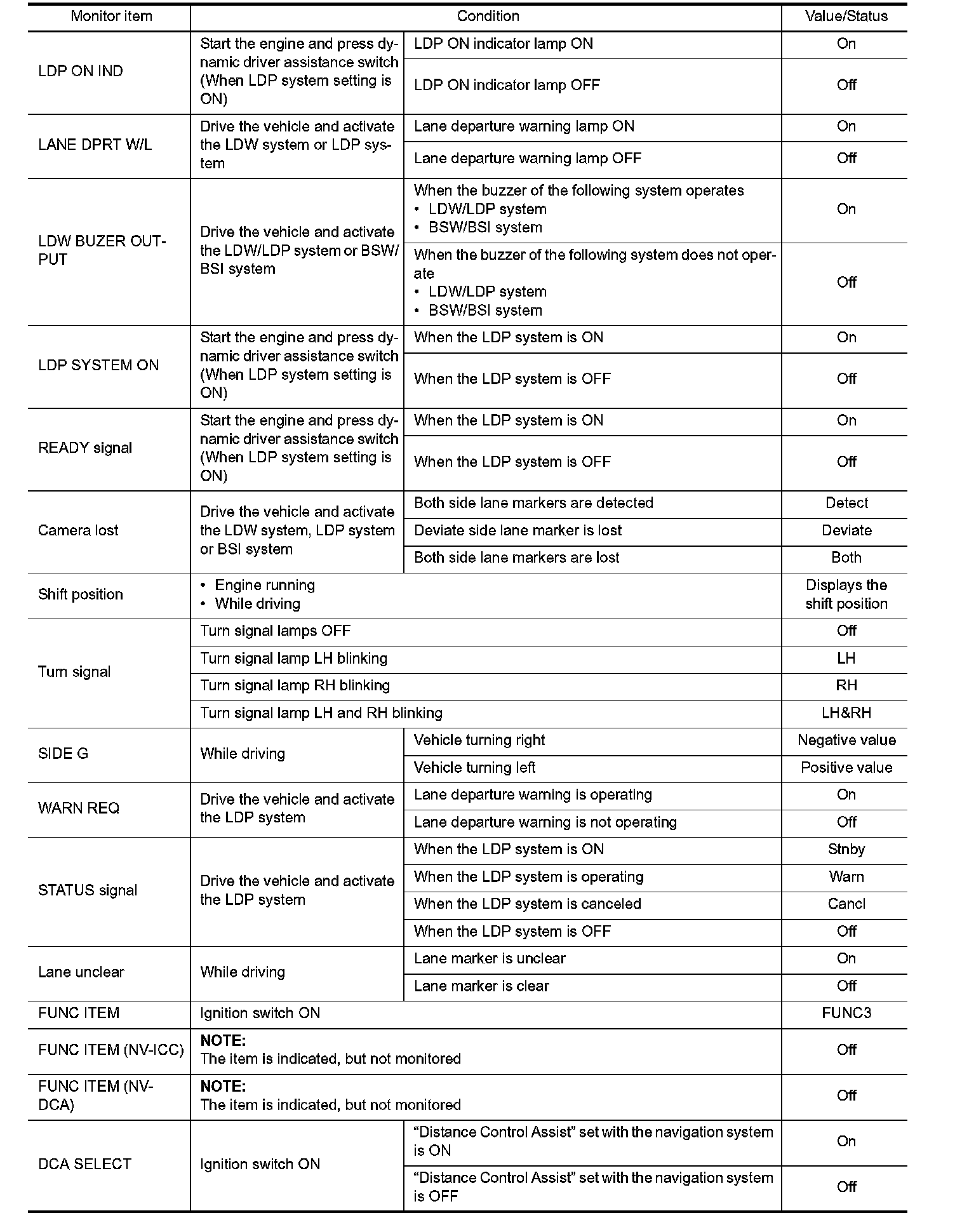

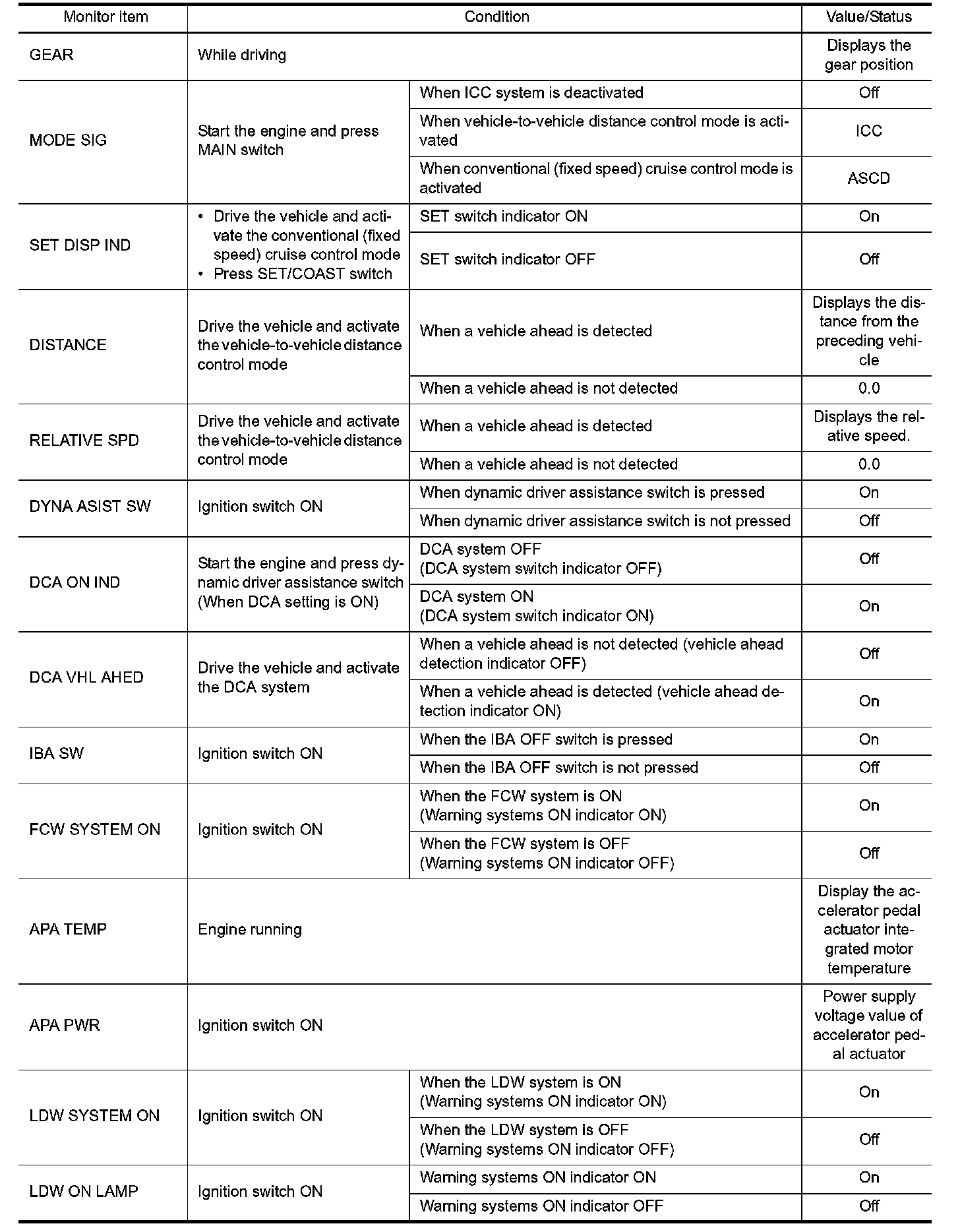

VALUES ON THE DIAGNOSIS TOOL
TERMINAL LAYOUT

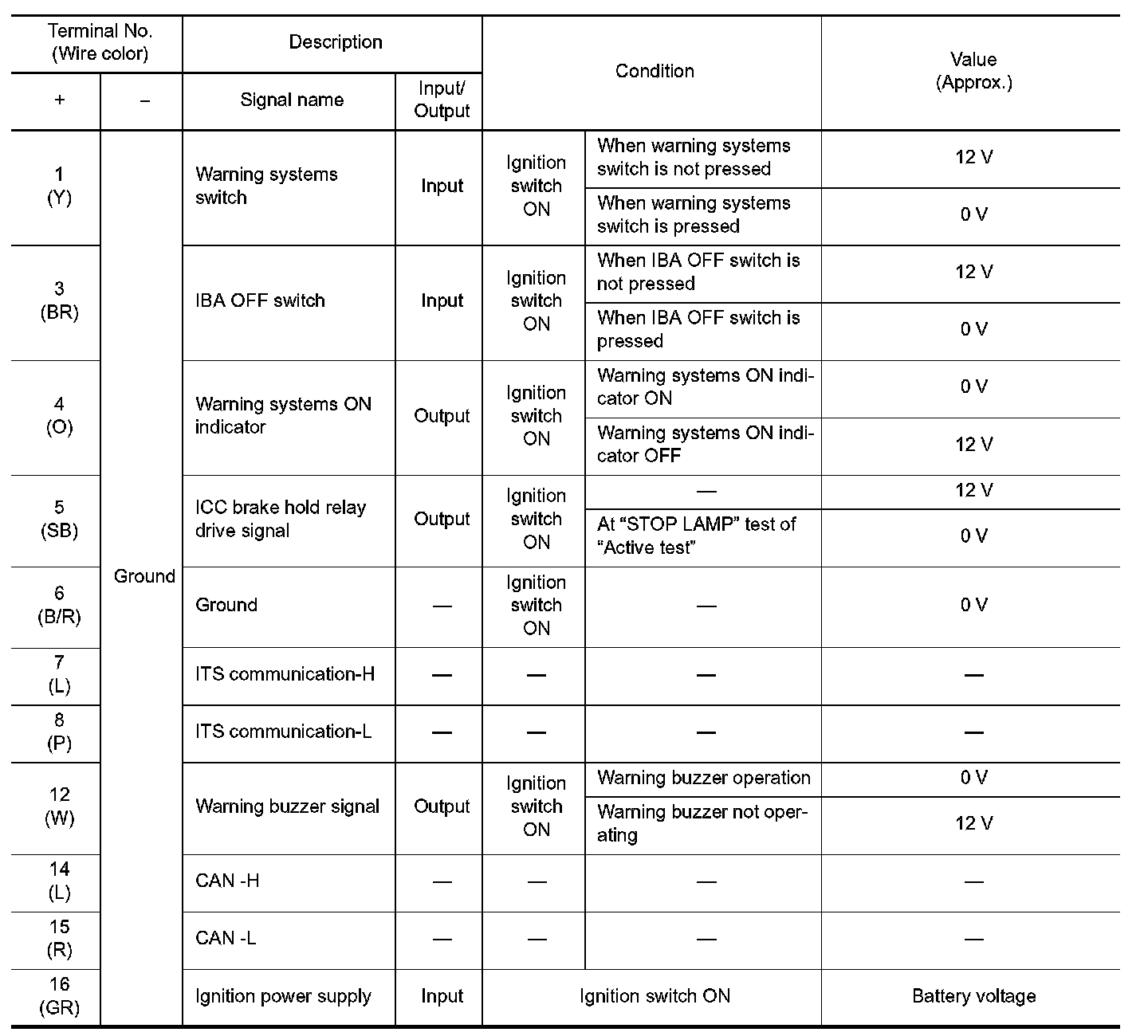

PHYSICAL VALUES
