Climate Controlled Seat Switch

CLIMATE CONTROLLED SEAT SWITCH

Component Function Check


1. CHECK CLIMATE CONTROLLED SEAT SWITCH FUNCTION

Check that climate controlled seat activates when operating climate controlled seat control switch.
Is the inspection result normal?
YES- INSPECTION END
NO- .


Diagnosis Procedure


1. CHECK CLIMATE CONTROLLED SEAT CONTROL UNIT INPUT SIGNAL

1.Turn ignition switch ON.
2.Check voltage between climate controlled seat control unit harness connector and ground.





Is the inspection result normal?
YES- INSPECTION END
NO-1 : HEAT or COOL mode is NG-GO TO 2.
NO-2 : HEAT and COOL modes are NG-GO TO 3.

2. CHECK CLIMATE CONTROLLED SEAT SWITCH CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect climate controlled seat switch connector and climate controlled seat control unit connector.

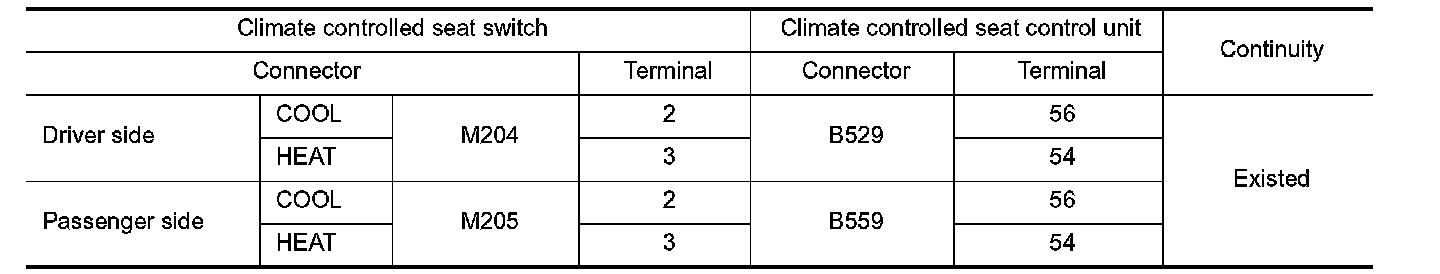

3.Check continuity between climate controlled seat switch harness connector and climate controlled seat control unit harness connector.

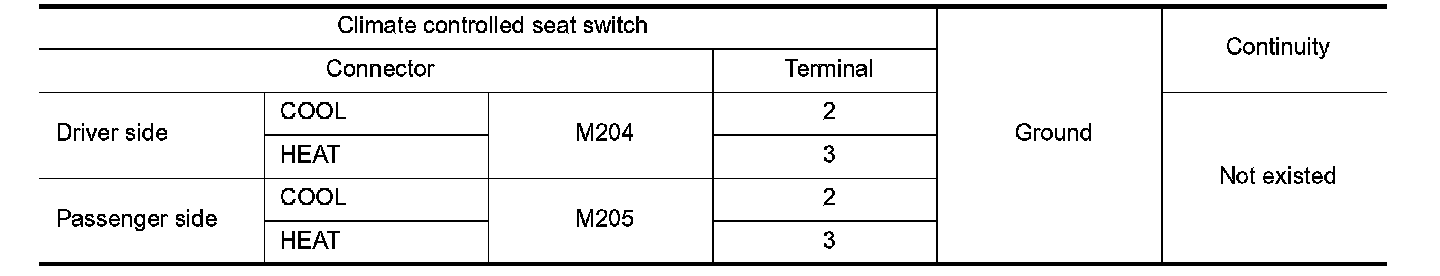

4.Check continuity between climate controlled seat switch harness connector and ground.





Is the inspection result normal?
YES- GO TO 5.
NO- Repair or replace harness.

3. CHECK CLIMATE CONTROLLED SEAT SWITCH POWER SUPPLY

1.Turn ignition switch OFF.
2.Disconnect climate controlled seat switch connector.
3.Turn ignition switch ON.

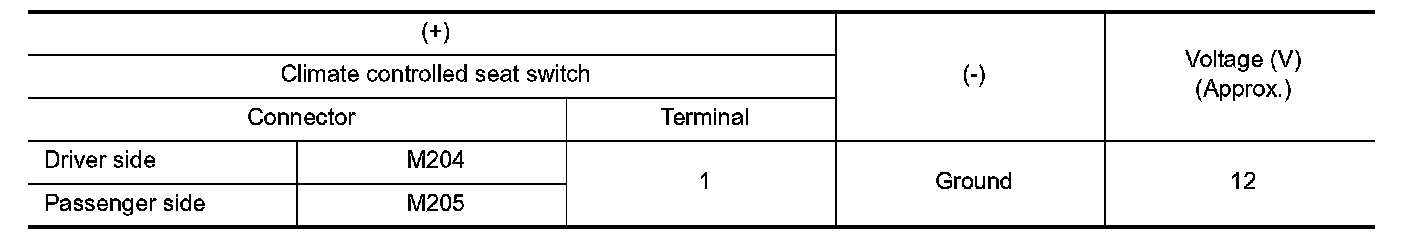

4.Check voltage between climate controlled seat switch harness connector and ground.





Is the inspection result normal?
YES- GO TO 5.
NO- GO TO 4.

4. CHECK CLIMATE CONTROLLED SEAT SWITCH POWER SUPPLY CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect climate controlled seat control unit connector.

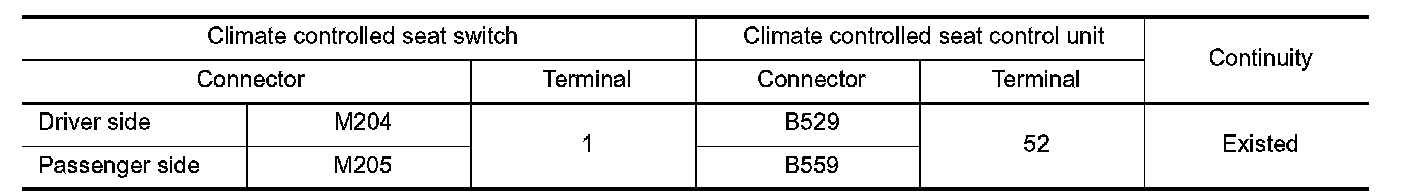

3.Check continuity between climate controlled seat switch harness connector and climate controlled seat control unit harness connector.

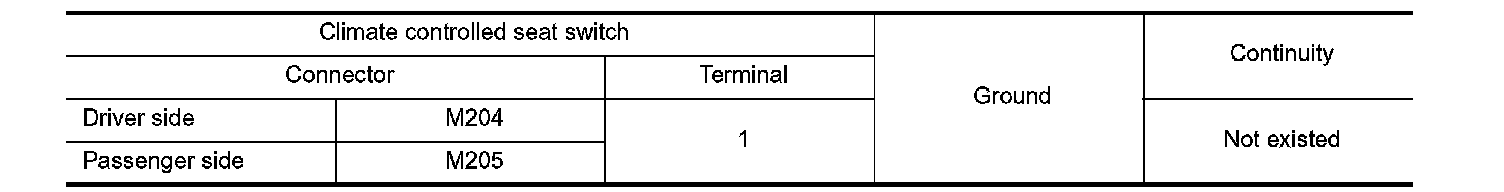

4.Check continuity between climate controlled seat switch harness connector and ground.





Is the inspection result normal?
YES- Replace climate controlled seat control unit.
NO- Repair or replace harness.

5. CHECK CLIMATE CONTROLLED SEAT SWITCH

Check climate controlled seat switch.
.
Is the inspection result normal?
YES- GO TO 6.
NO- Replace climate controlled seat switch.

6. CHECK INTERMITTENT INCIDENT

Intermittent Incident.
- INSPECTION END


Component Inspection


1. CHECK CLIMATE CONTROLLED SEAT SWITCH

1.Turn ignition switch OFF.
2.Disconnect climate controlled seat switch connector.

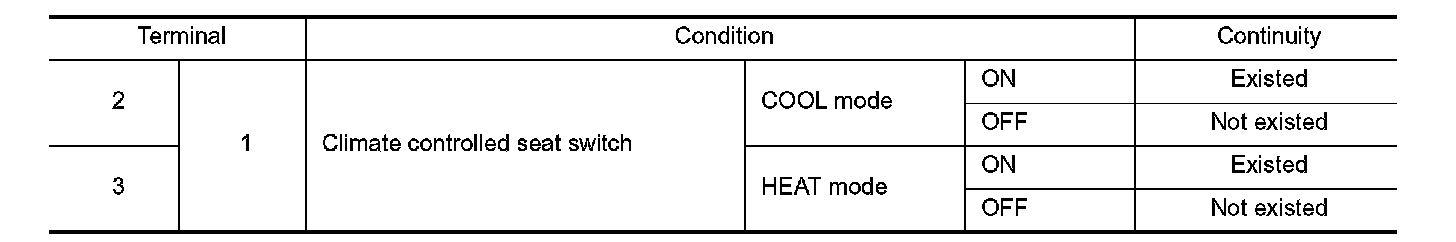

3.Check continuity between climate controlled seat switch terminals under the following conditions.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace climate controlled seat switch.
