Climate Controlled Seat Cushion Blower Motor

CLIMATE CONTROLLED SEAT CUSHION BLOWER MOTOR

Component Function Check


1. CHECK CLIMATE CONTROLLED SEAT CUSHION BLOWER MOTOR FUNCTION

When turning the climate controlled seat switch to the HEAT or COOL mode position, check that the climate controlled seat cushion blower is operated in each specific mode.
Is the inspection result normal?
YES- INSPECTION END
NO- .


Diagnosis Procedure


1. CHECK CLIMATE CONTROLLED SEAT CUSHION BLOWER MOTOR POWER SUPPLY

1.Turn ignition switch ON.

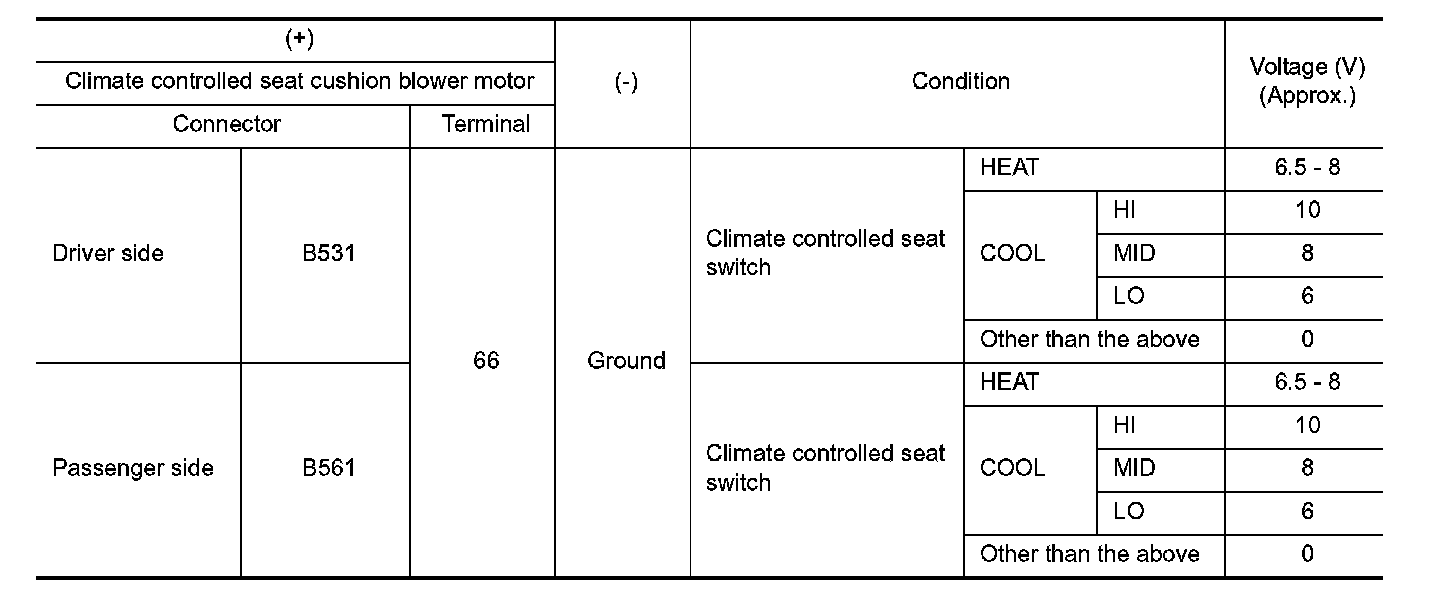

2.Check voltage between climate controlled seat cushion blower motor harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- GO TO 2.

2. CHECK CLIMATE CONTROLLED SEAT CUSHION BLOWER MOTOR POWER SUPPLY CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect climate controlled seat cushion blower motor connector and climate controlled seat control unit connector.

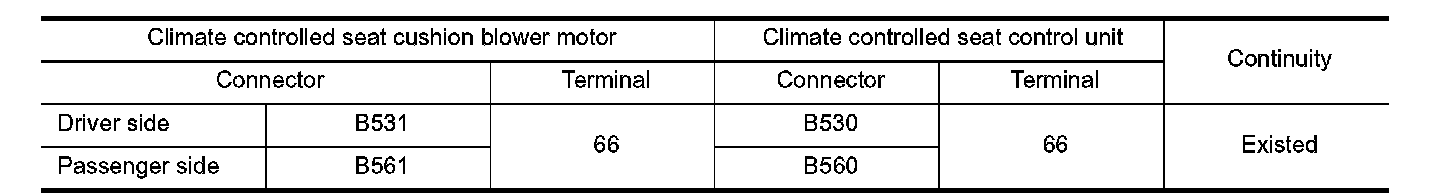

3.Check continuity between climate controlled seat cushion blower motor harness connector and climate controlled seat control unit harness connector.

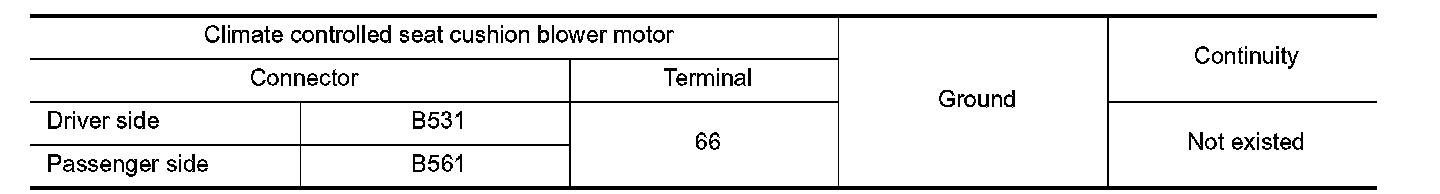

4.Check continuity between climate controlled seat cushion blower motor harness connector and ground.





Is the inspection result normal?
YES- Replace climate controlled seat control unit.
NO- Repair or replace harness.

3. CHECK CLIMATE CONTROLLED SEAT CUSHION BLOWER MOTOR SPEED CONTROL SIGNAL

Check voltage between climate controlled seat cushion blower motor harness connector and ground.





Is the inspection result normal?
YES- GO TO 5.
NO- GO TO 4.

4. CHECK CLIMATE CONTROLLED SEAT CUSHION BLOWER MOTOR SPEED CONTROL SIGNAL CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect climate controlled seat cushion blower motor connector and climate controlled seat control unit connector.

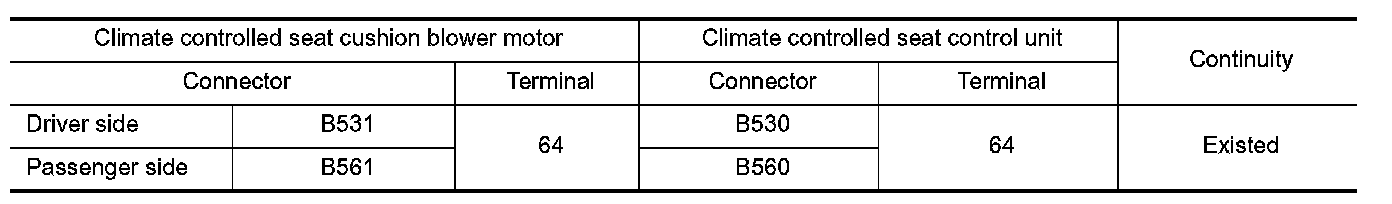

3.Check continuity between climate controlled seat cushion blower motor harness connector and climate controlled seat control unit harness connector.

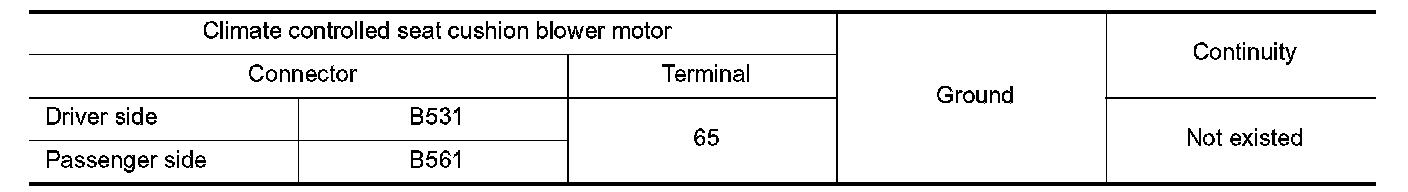

4.Check continuity between climate controlled seat cushion blower motor harness connector and ground.





Is the inspection result normal?
YES- Replace climate controlled seat control unit.
NO- Repair or replace harness.

5. CHECK CLIMATE CONTROLLED SEAT CUSHION BLOWER MOTOR GROUND CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect climate controlled seat cushion blower motor and climate controlled seat control unit connector.

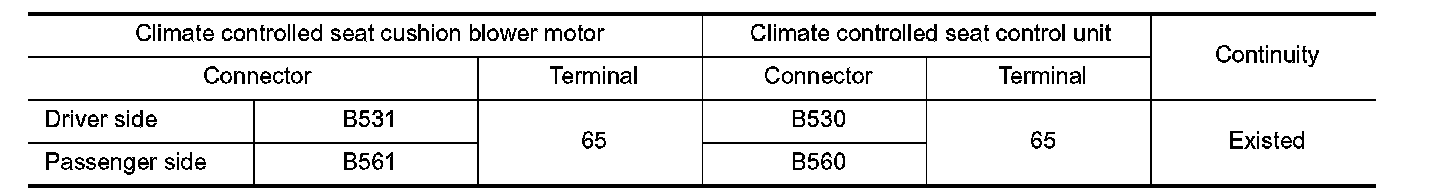

3.Check continuity between climate controlled seat cushion blower motor harness connector and climate controlled seat control unit harness connector.

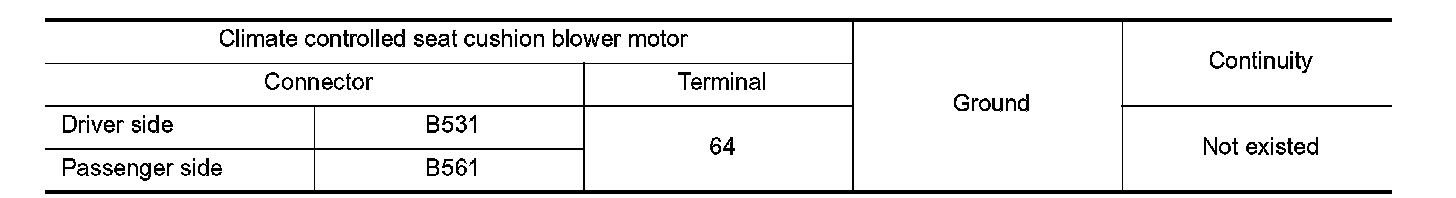

4.Check continuity between climate controlled seat cushion blower motor harness connector and ground.





Is the inspection result normal?
YES- Replace climate controlled seat cushion blower motor.
NO- Repair or replace harness.
