Removal and Installation

FRONT SEAT

Removal and Installation


REMOVAL


CAUTION:
When removing and installing, use shop cloths to protect parts from damage.
1.Remove the headrest.
2.Remove the front leg cover.

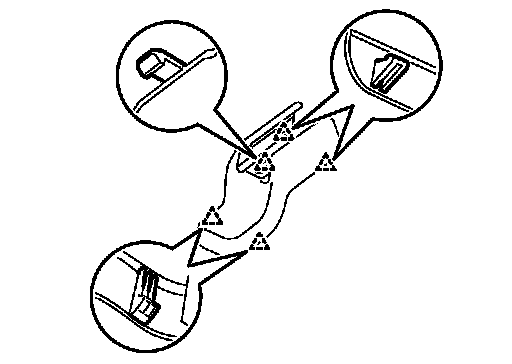

a.Front outer leg cover
- Slide the seat to the rearmost position.
- Pull front leg cover outer front clips upward to disengage.
- Slide front leg cover outer foreword to remove.

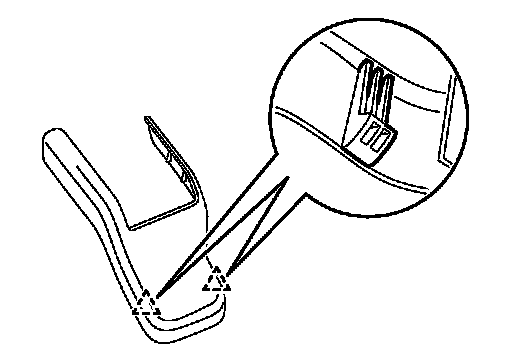

b.Front inner leg cover
- Slide seat to the rearmost position.
- Pull front leg cover inner front pawls upward to disengage.
- Slide front leg cover foreword to remove.





3.Remove mounting bolts from the front of front seat.
4.Remove rear leg covers.

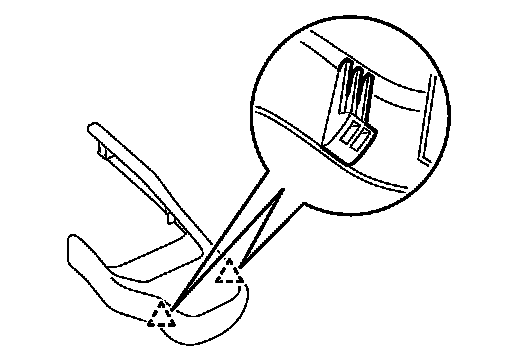

a.Rear outer leg cover
- Slide seat to the frontmost position.
- Pull rear leg cover outer rear pawls upward to disengage and remove.
- Open rear leg cover inner front, and then disengage and remove pawls.










b.Rear inner leg cover
- Slide the seat to the frontmost position.
- Pull rear leg cover inner rear pawls upward to disengage and remove.
- Open rear leg cover inner front, and then disengage and remove pawls.





5.Remove mounting bolts from the front seat rear side.
6.Set the seatback vertically.
7.Remove seat cushion lower harness connector and harness clamp.

CAUTION:
Before removal, turn ignition switch OFF, disconnect battery negative terminal and then wait for at lest 3 minutes.
8.Remove the front seat from the vehicle.

CAUTION:
When removing and installing, use shop cloths to protect parts from damage.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:
Always fix the harness clamp in position.
NOTE:
Perform "Operation when disconnecting battery cable from negative terminal" after connecting the battery cable to the negative terminal. Description.
