Home >> Infiniti >> 2012 >> M37x AWD V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Body and Frame >> Seats >> Service and Repair >> Removal and Replacement >> Front Seat >> Exploded View

Exploded View




FRONT SEAT

Exploded View

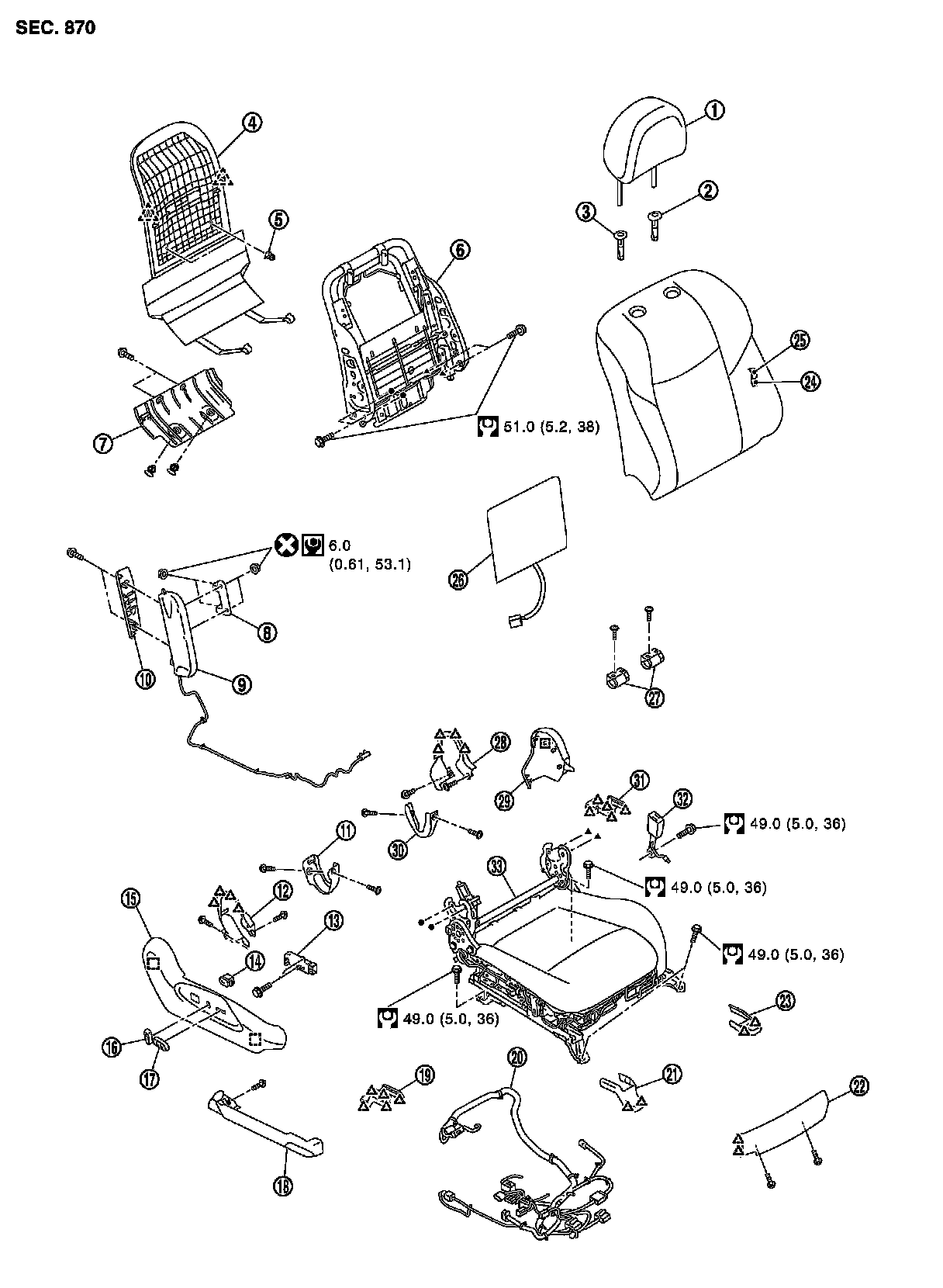

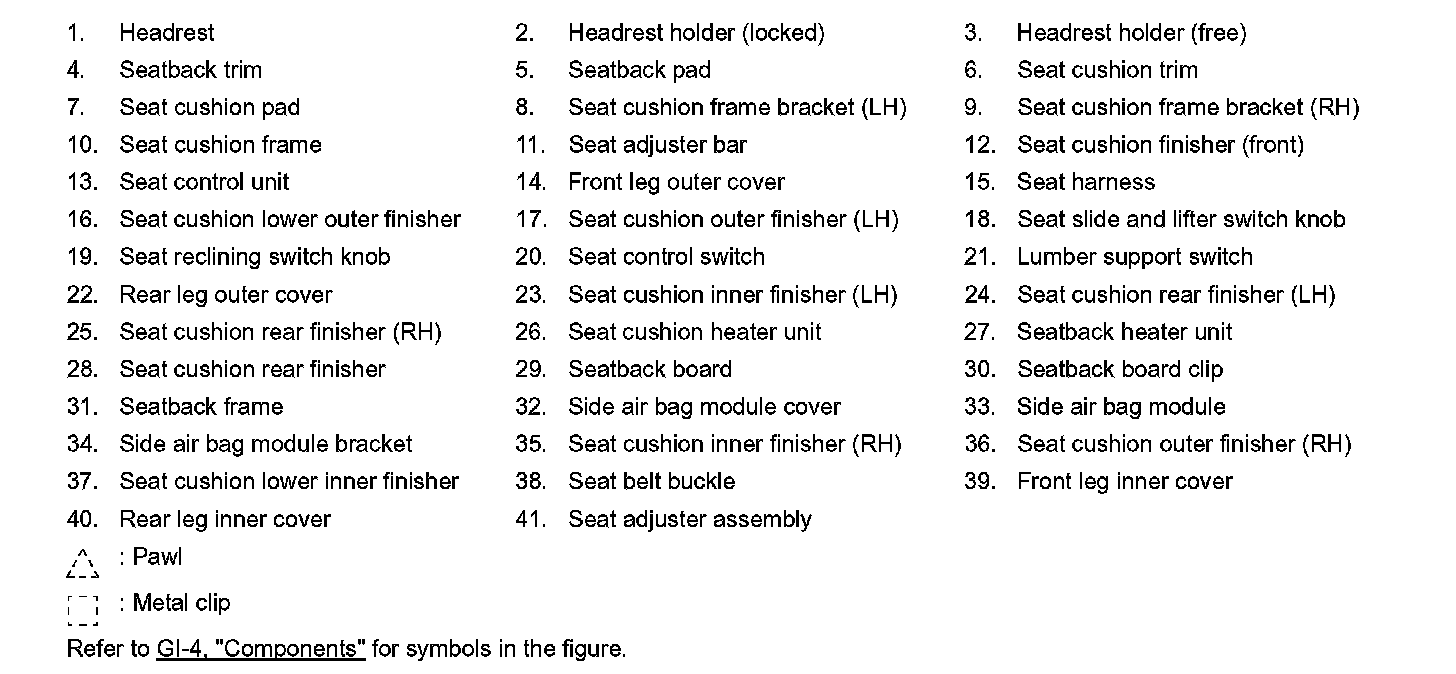

DRIVER SEAT WITH SEAT HEATER

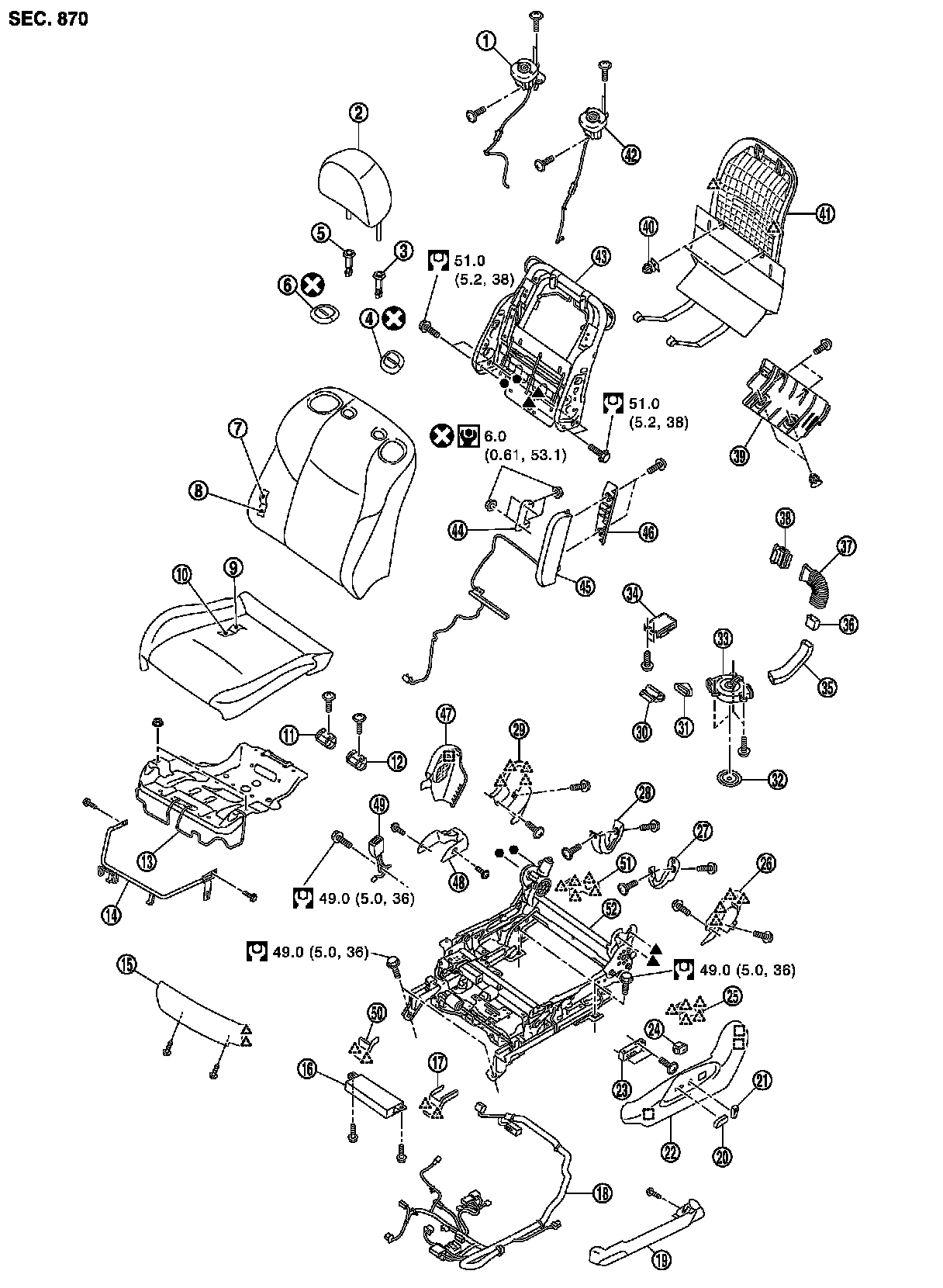

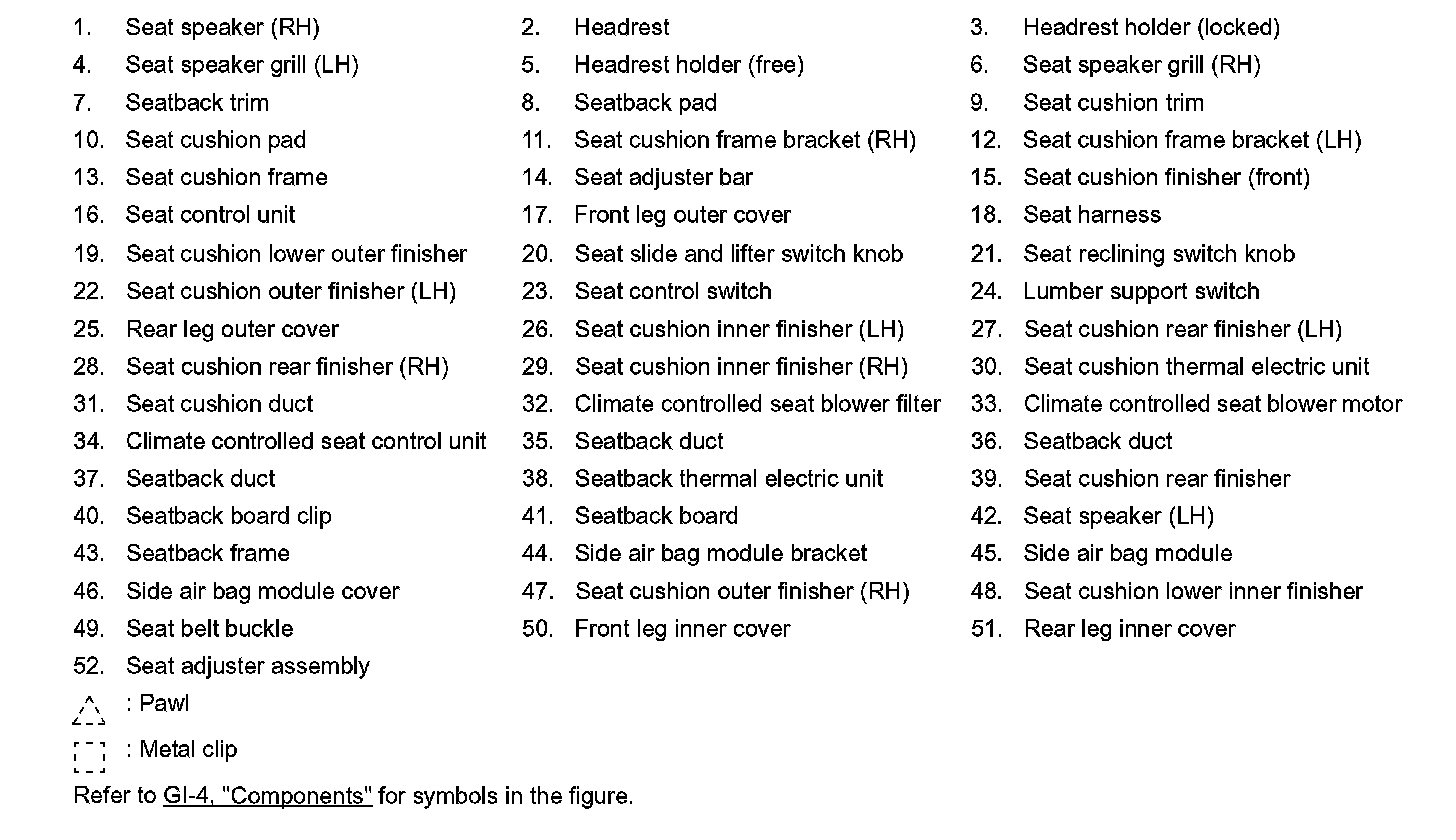

DRIVER SEAT WITH SEAT SPEAKER AND CLIMATE CONTROLLED SEAT

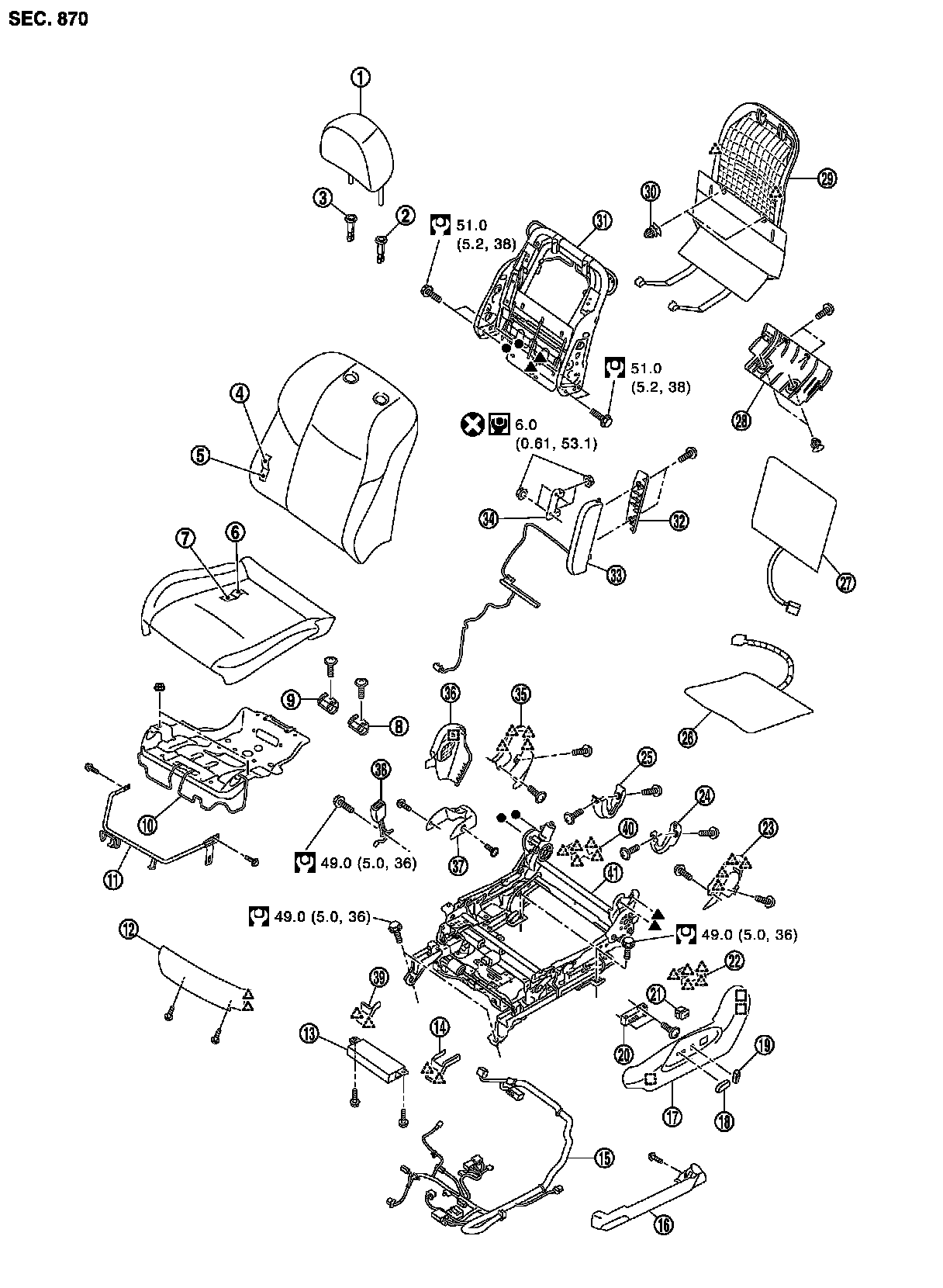

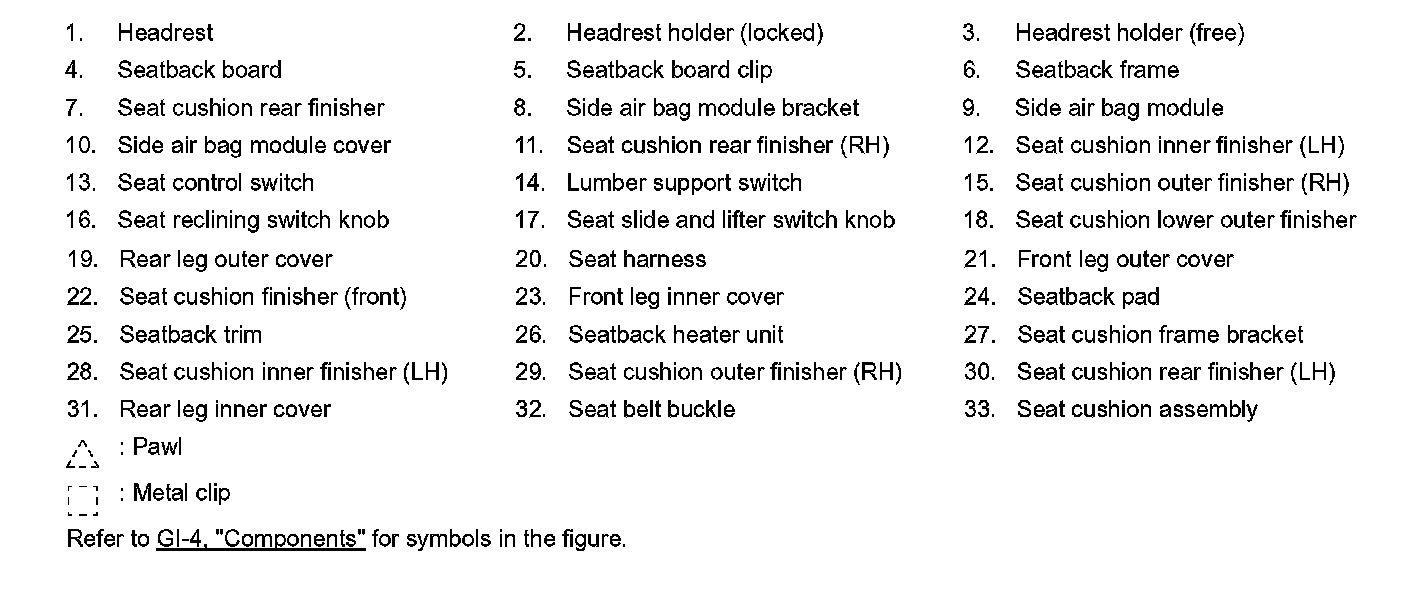

PASSENGER SEAT WITH SEAT HEATER

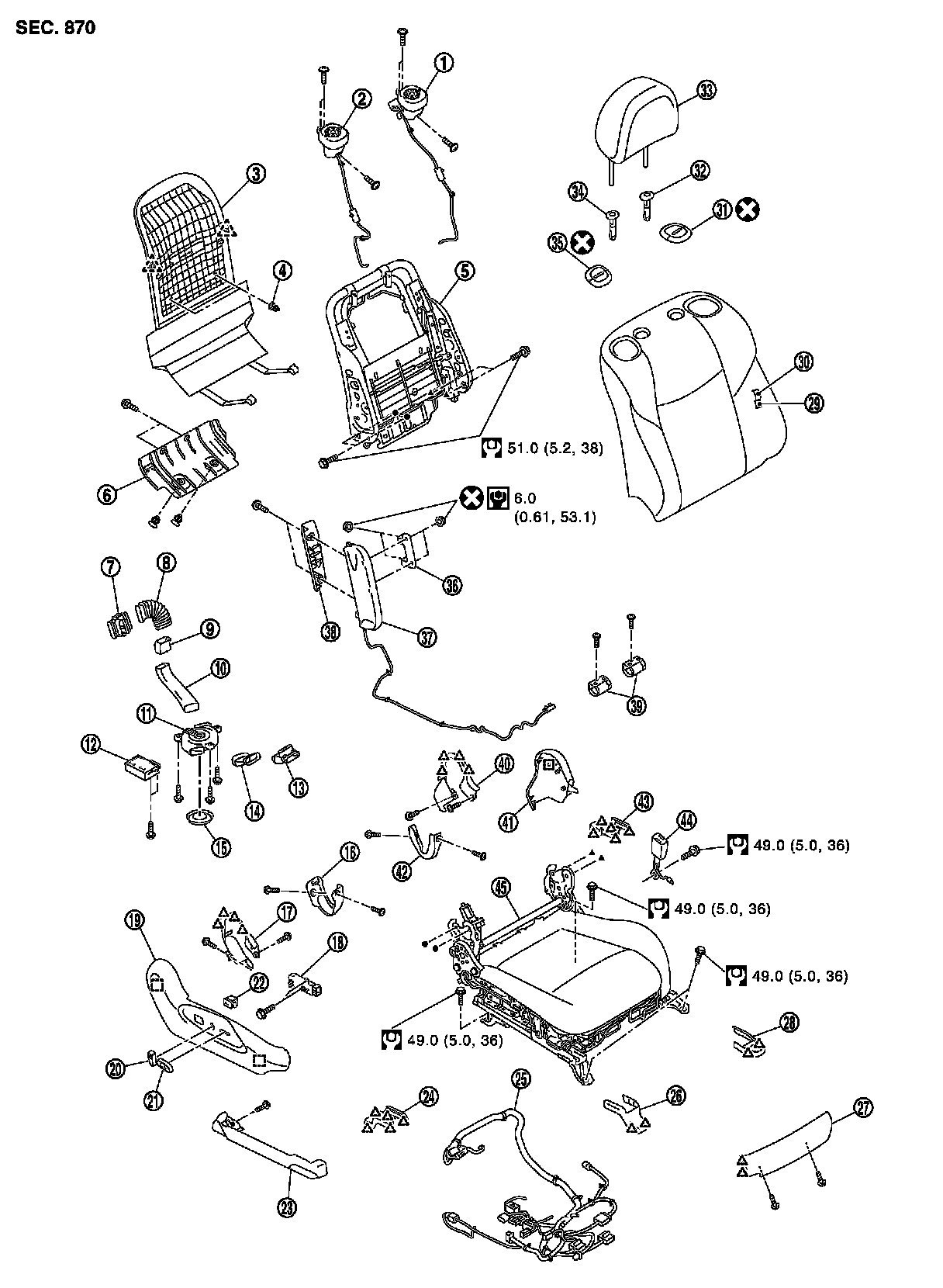

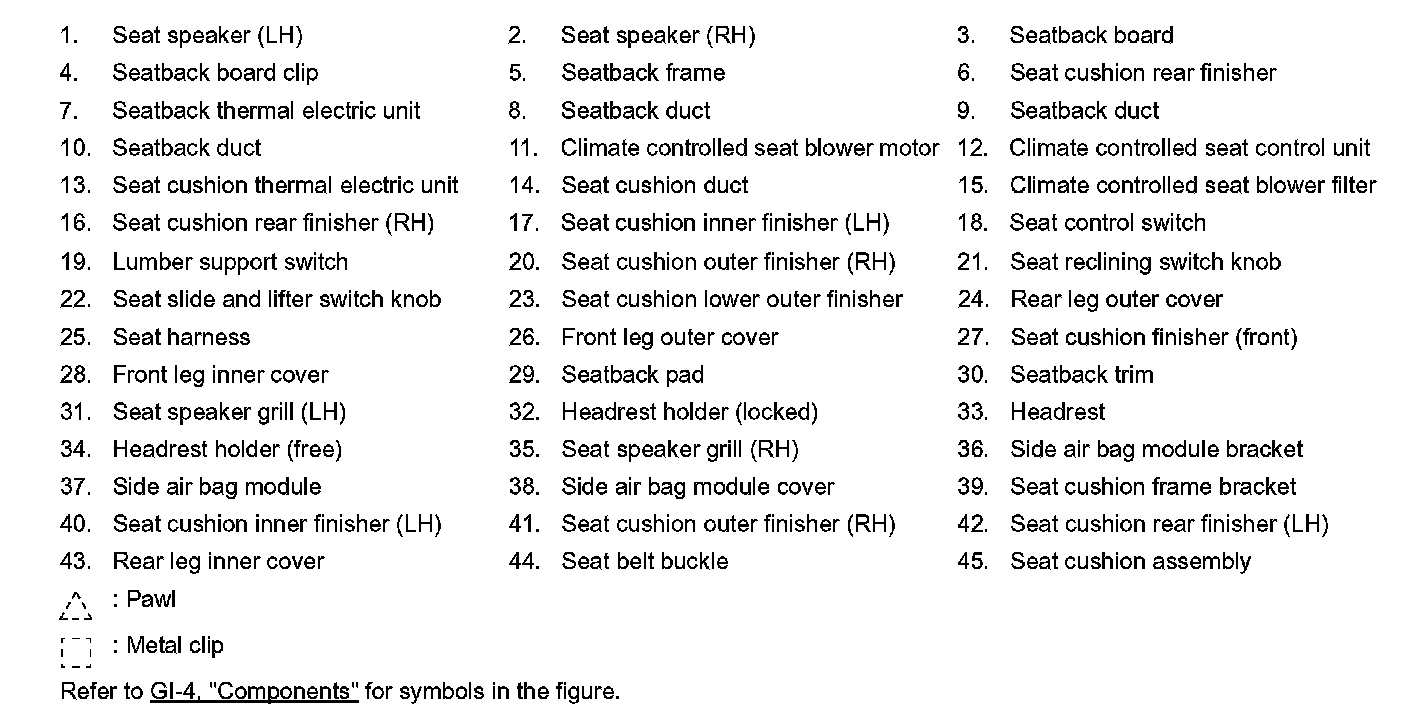

PASSENGER SEAT WITH SEAT SPEAKER AND CLIMATE CONTROLLED SEAT
