CLIMATE CONTROLLED SEAT UNIT : Disassembly and Assembly


Disassembly

1.Remove the seatback duct and seatback thermal electric unit.

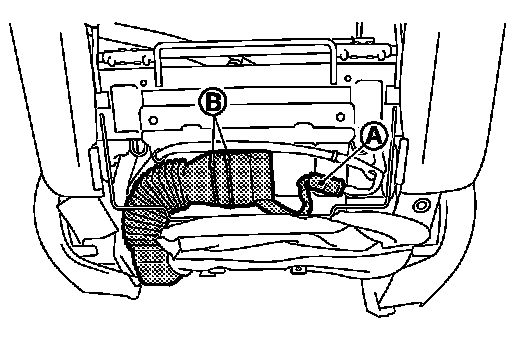

1.Remove the harness connector (A).
2.Remove the band (B).
2.Remove the seatback duct.
3.Remove the seat cushion duct, seat cushion thermal electric unit and climate controlled seat blower motor.





1.Disconnect the harness connectors (A).
2.Remove the band (B)
3.Remove the climate controlled seat blower motor mounting screws (C).
4.Remove the seat cushion duct.
5.Remove the climate controlled seat control unit.

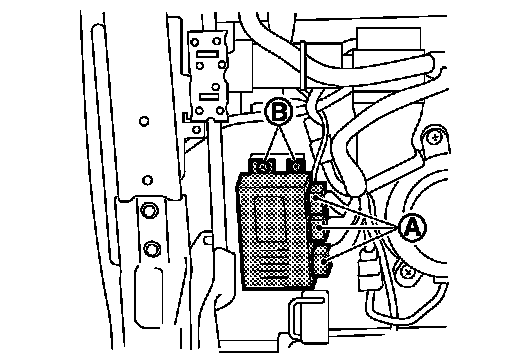

1.Disconnect the harness connectors (A).
2.Remove the climate controlled seat control unit mounting screws (B).

Assembly

Assemble in the reverse order of disassembly.
