Component Function Check

POWER WINDOW MAIN SWITCH

MIRROR SWITCH : Component Function Check


1. CHECK MIRROR SWITCH FUNCTION

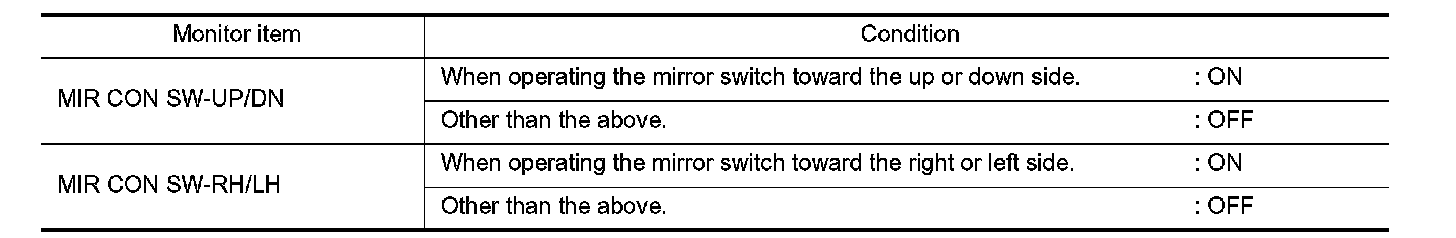

Check the operation on "MIRCONSW-UP/DN" and "MIRCONSW-RH/LH" in "DATA MONITOR" mode with CONSULT.





Is the inspection result normal?
YES- Mirror switch function is OK.
NO- Diagnosis Procedure.
