Component Function Check

POWER WINDOW MAIN SWITCH

CHANGEOVER SWITCH : Component Function Check


1. CHECK CHANGEOVER SWITCH FUNCTION

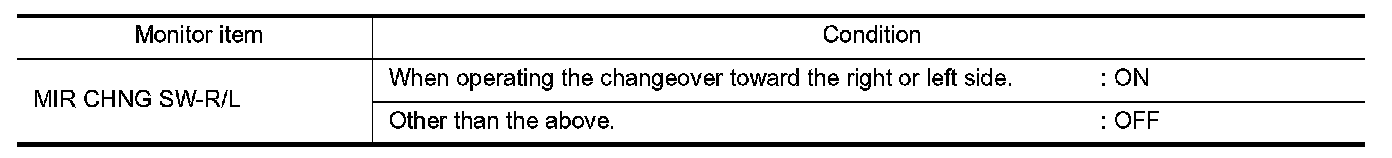

Check the operation on "MIRCHNGSW-R" or "MIR CHNG SW-L" in "DATA MONITOR" mode with CONSULT.





Is the inspection result normal?
YES- Changeover switch function is OK.
NO- Diagnosis Procedure.
