Door Mirror Motor

DOOR MIRROR MOTOR

Component Function Check


1. CHECK DOOR MIRROR MOTOR FUNCTION

Check the operation with "MIRROR MOTOR RH" and "MIRROR MOTOR LH" in "ACTIVE TEST" mode with
CONSULT
CONSULT Function.
Is the inspection result normal?
YES- Door mirror motor function is OK.
NO- .


Diagnosis Procedure


1. CHECK DOOR MIRROR MOTOR INPUT SIGNAL

1.Turn ignition switch OFF.
2.Disconnect door mirror connector.
3.Turn ignition switch ON.

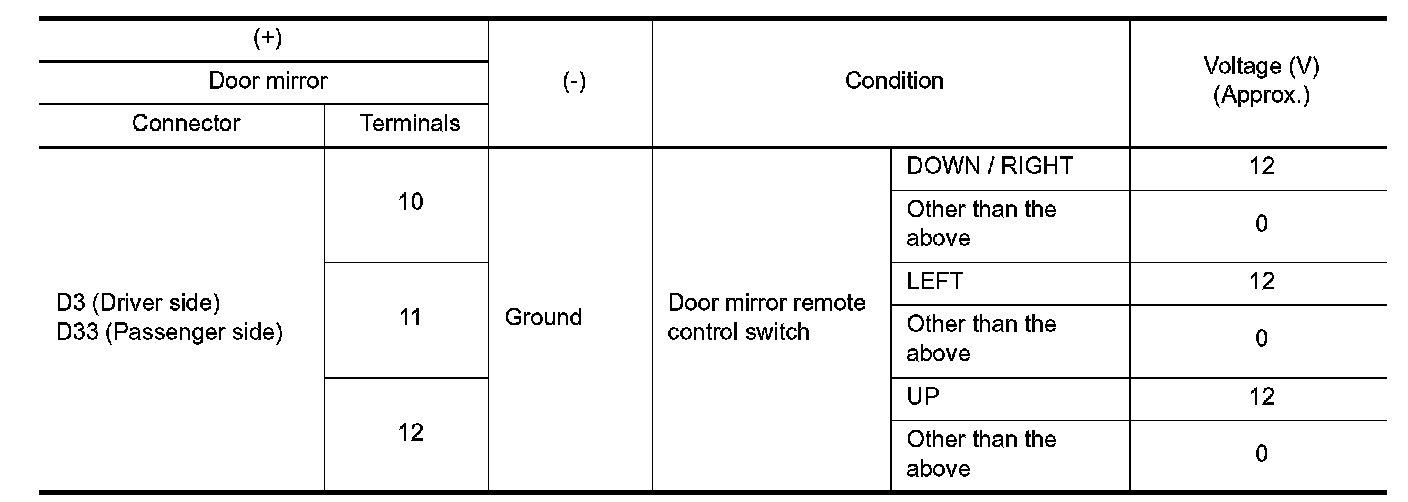

4.Check voltage between door mirror harness connector and ground.





Is the inspection result normal?
YES- GO TO 3.
NO- GO TO 2.

2. CHECK DOOR MIRROR MOTOR CIRCUIT

1.Turn ignition switch OFF.
2.Disconnect automatic drive positioner control unit connector.
3.Check continuity between automatic drive positioner control unit harness connector and door mirror harness connector.
[driver side]

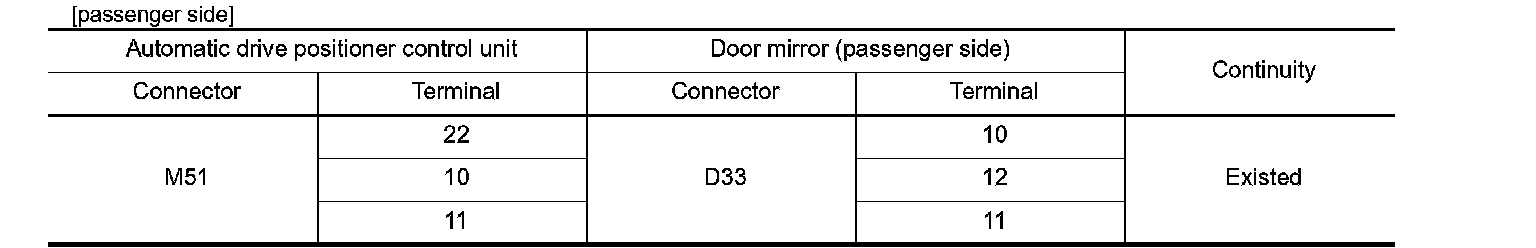

[passenger side]

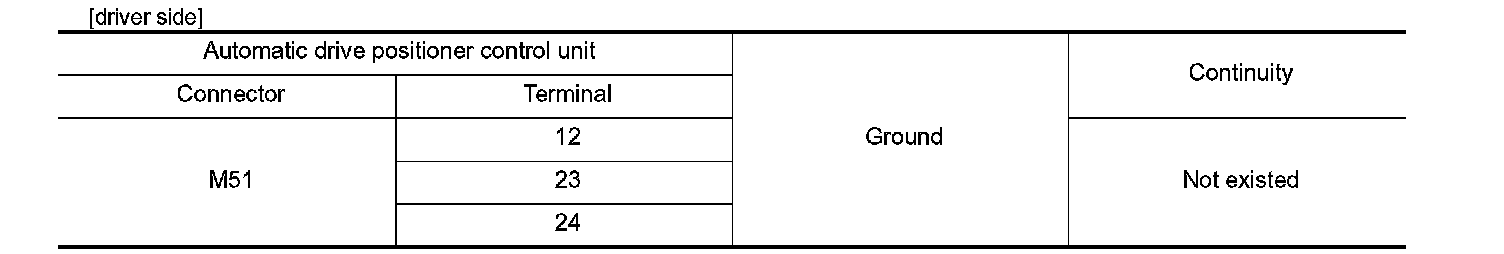

4.Check continuity between automatic drive positioner control unit harness connector and ground.
[driver side]

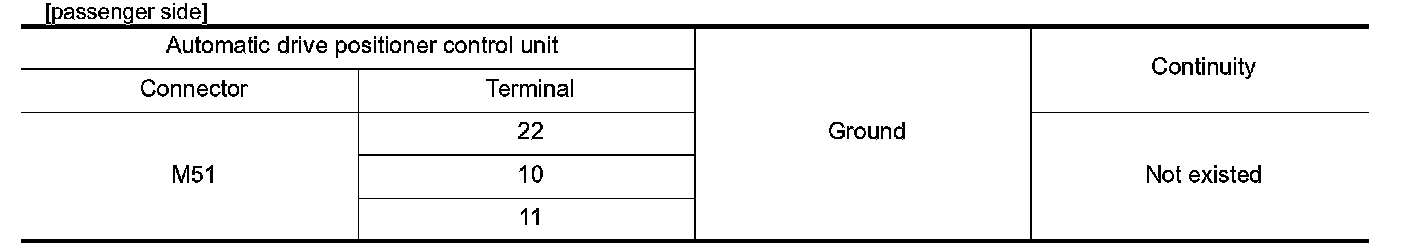

[passenger side]





Is the inspection result normal?
YES- Replace automatic drive positioner control unit. Service and Repair.
NO- Repair or replace harness or connector.

3. CHECK DOOR MIRROR MOTOR

Check door mirror motor.
.
Is the inspection result normal?
YES- Check intermittent incident.Intermittent Incident.
NO- Replace door mirror. Removal And Installation.


Component Inspection


1. CHECK DOOR MIRROR MOTOR-I

Check that door mirror motor does not trap foreign objects and does not have any damage.
Disassembly And Assembly.
Is the inspection result normal?
YES- GO TO 2.
NO- Replace door mirror.Removal And Installation.

2. CHECK DOOR MIRROR MOTOR-II

1.Turn ignition switch OFF.
2.Disconnect door mirror connector.

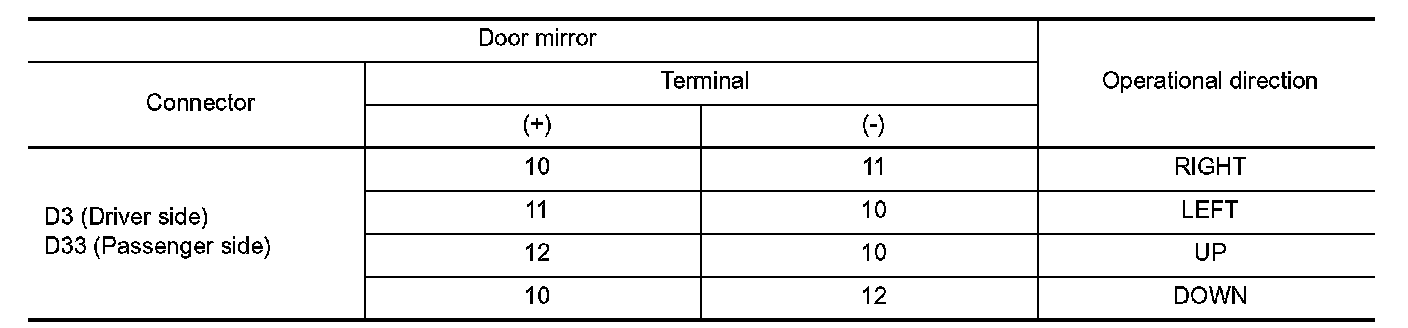

3.Apply 12V to each power supply terminal of door mirror motor.





Is the inspection result normal?
YES- INSPECTION END
NO- Replace door mirror. Removal And Installation.
