Power Seat Control System (Passenger Side)
Power Seat Control System (Passenger Side)
POWER SEAT CONTROL SYSTEM (PASSENGER SIDE)

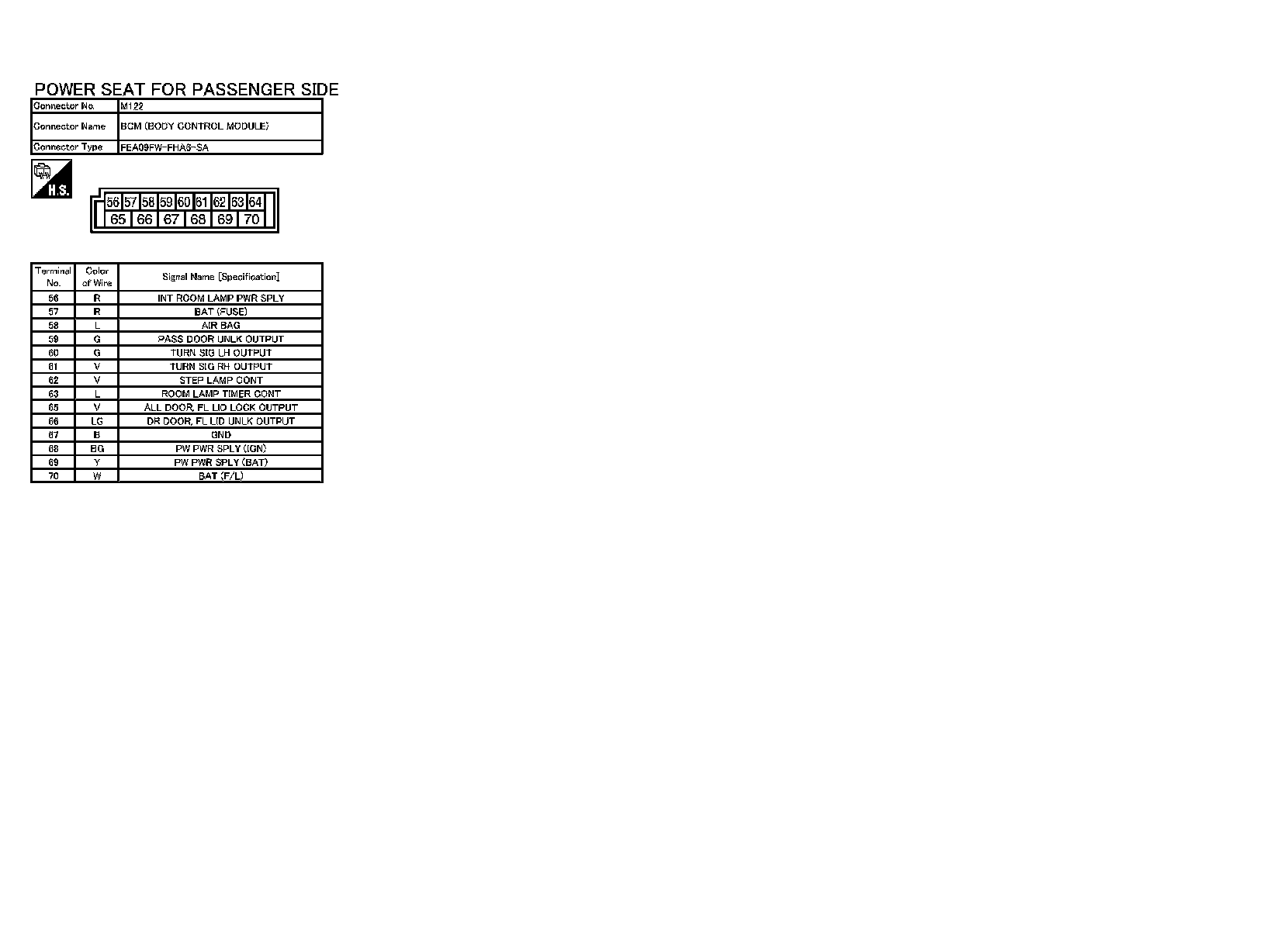

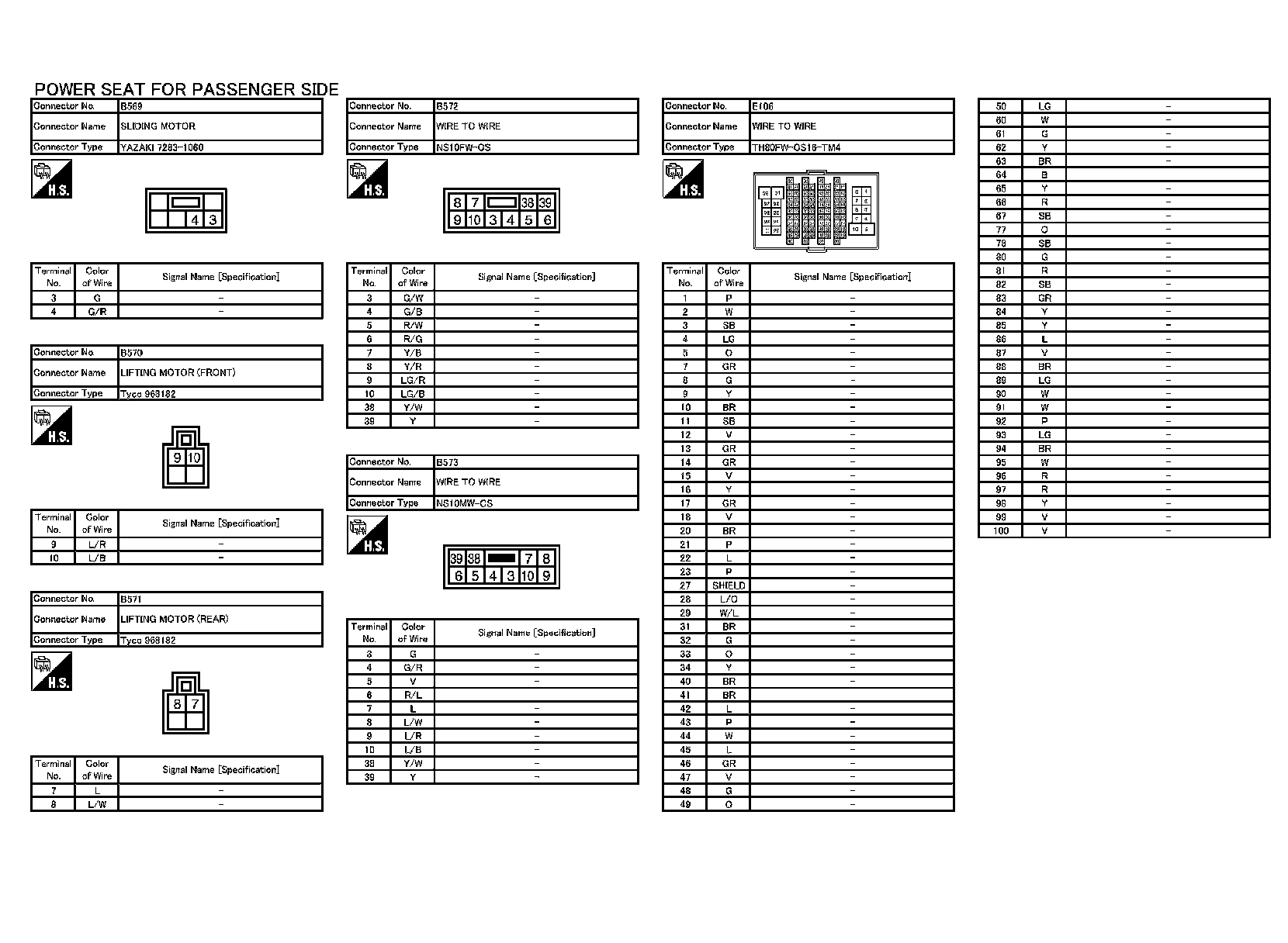

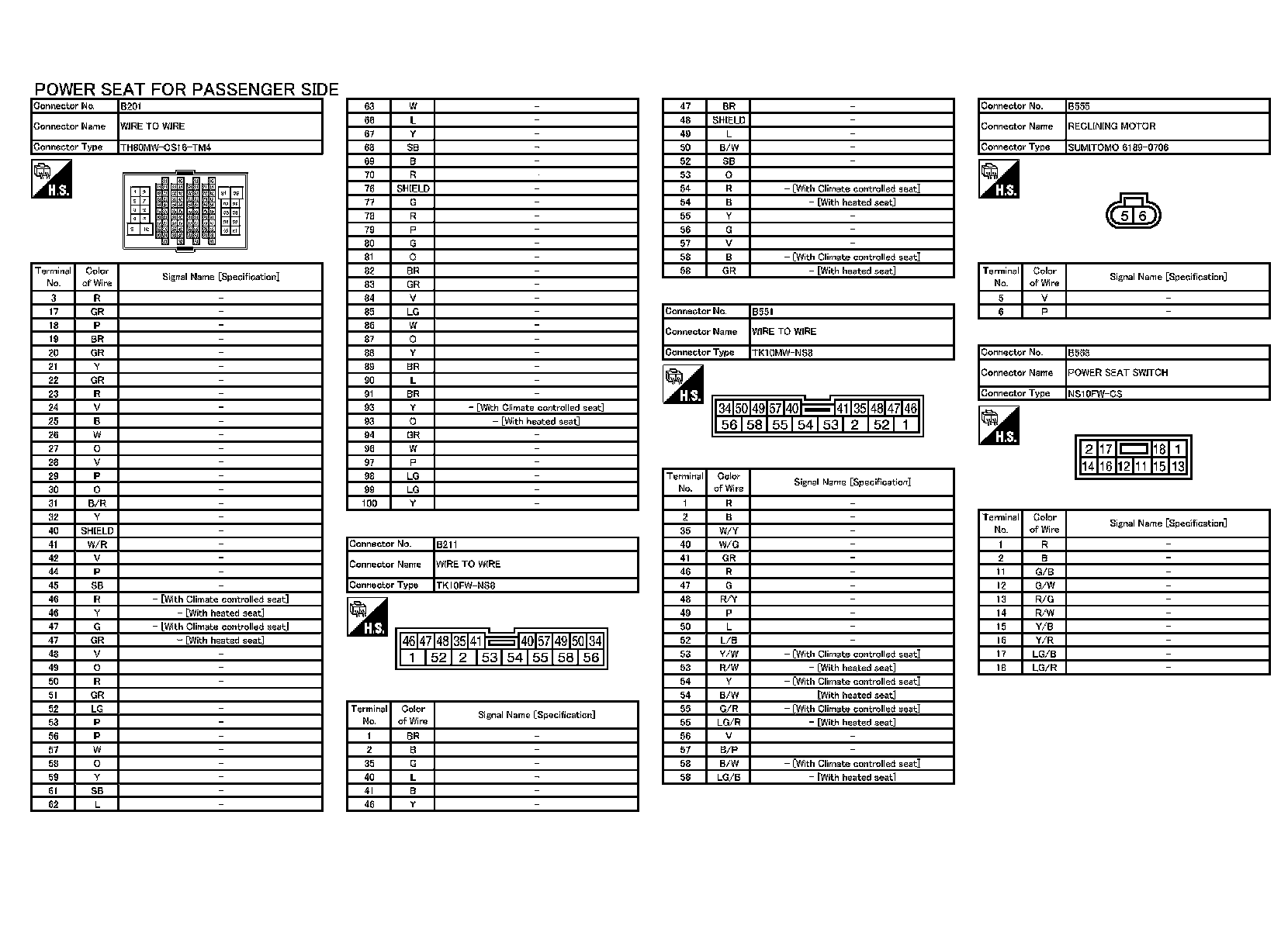

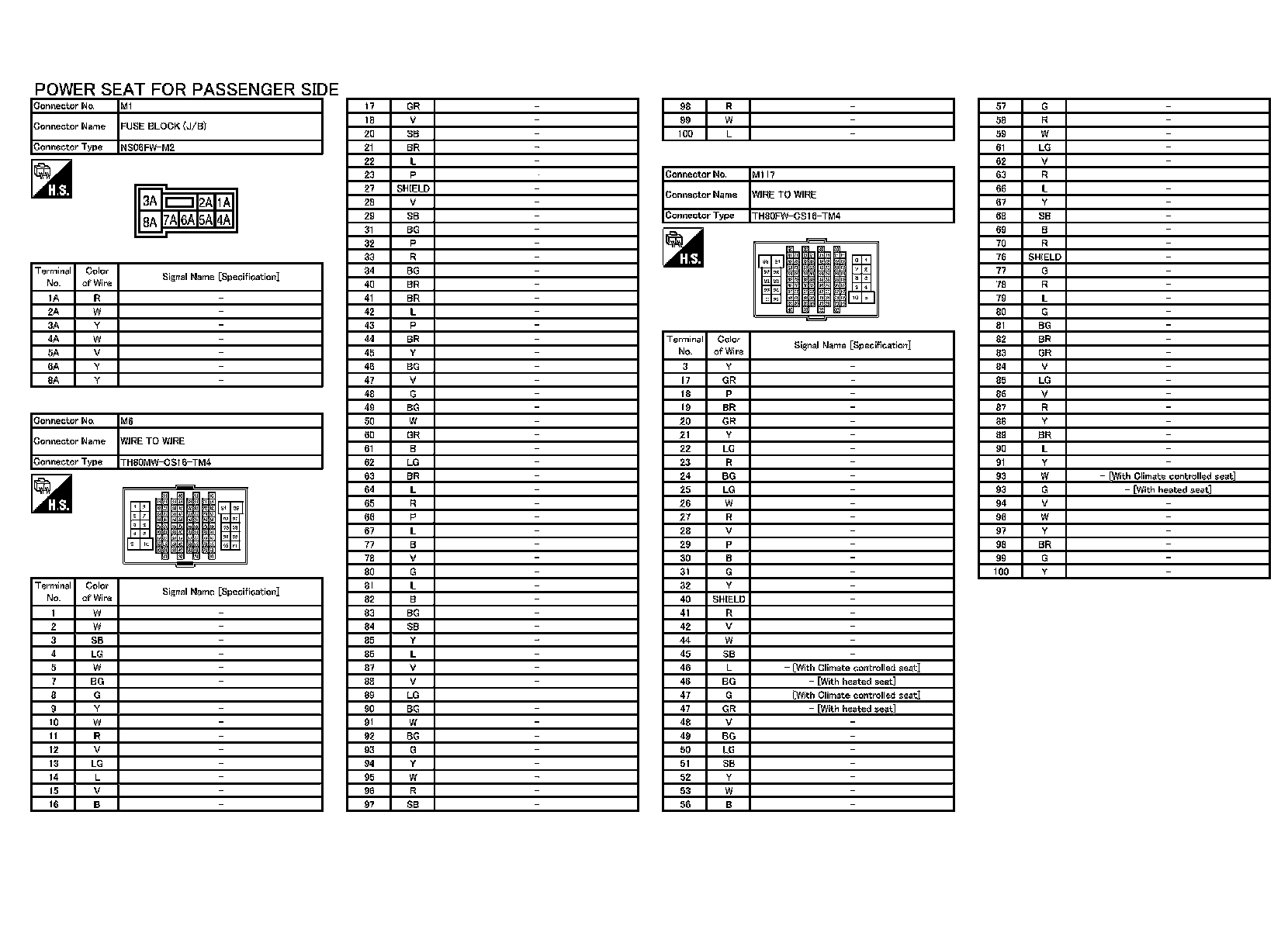

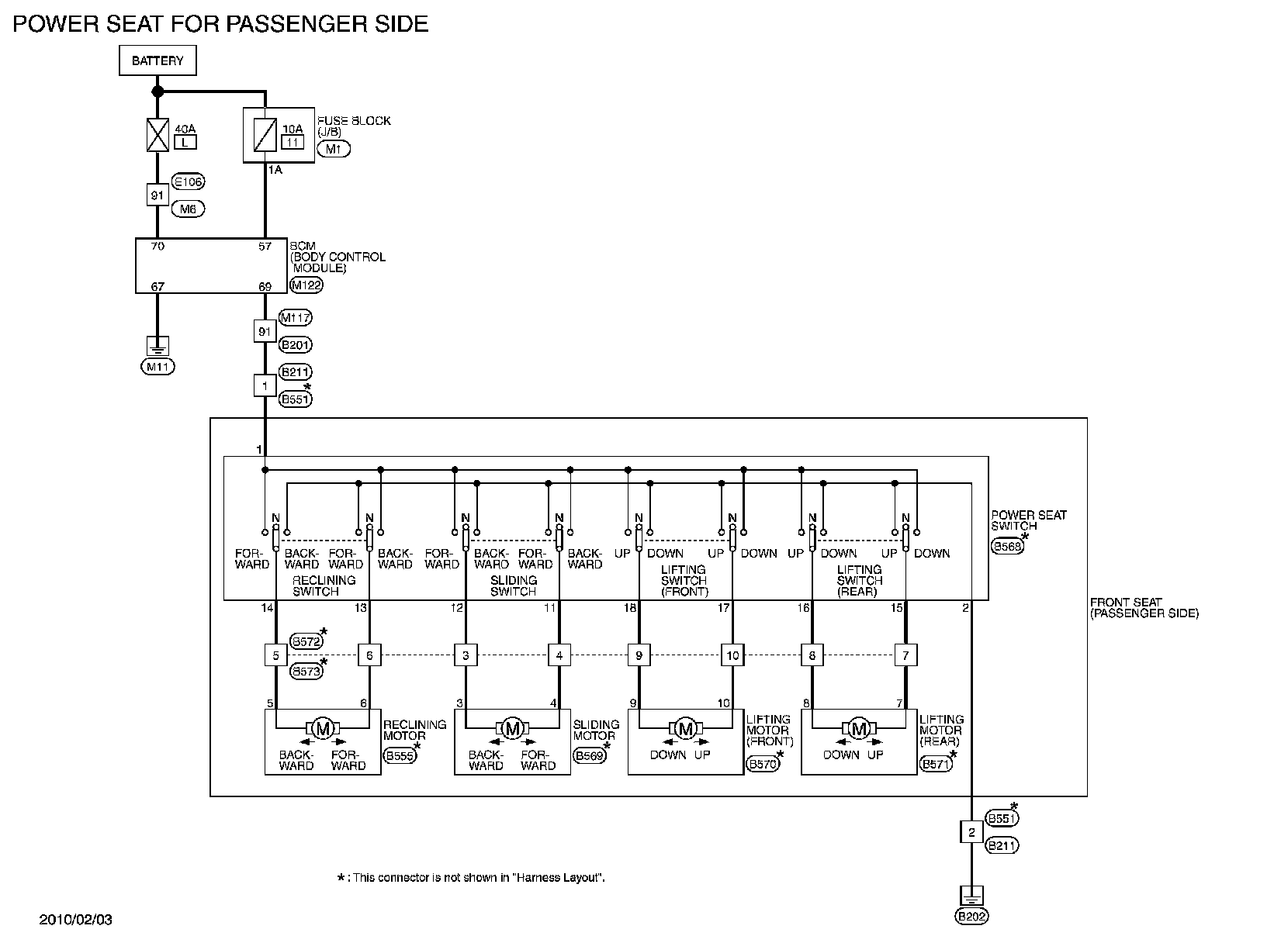

Wiring Diagram
