Heated Seat Control Unit (Passenger Side)




HEATED SEAT CONTROL UNIT (PASSENGER SIDE)

Reference Value

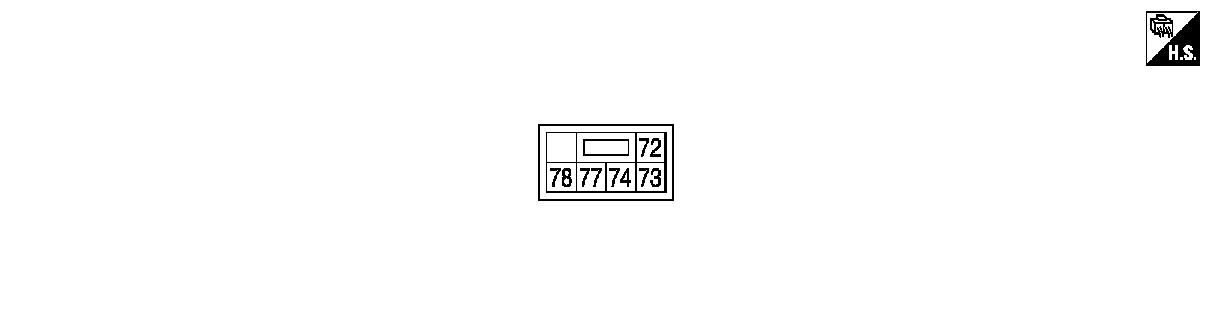

TERMINAL LAYOUT

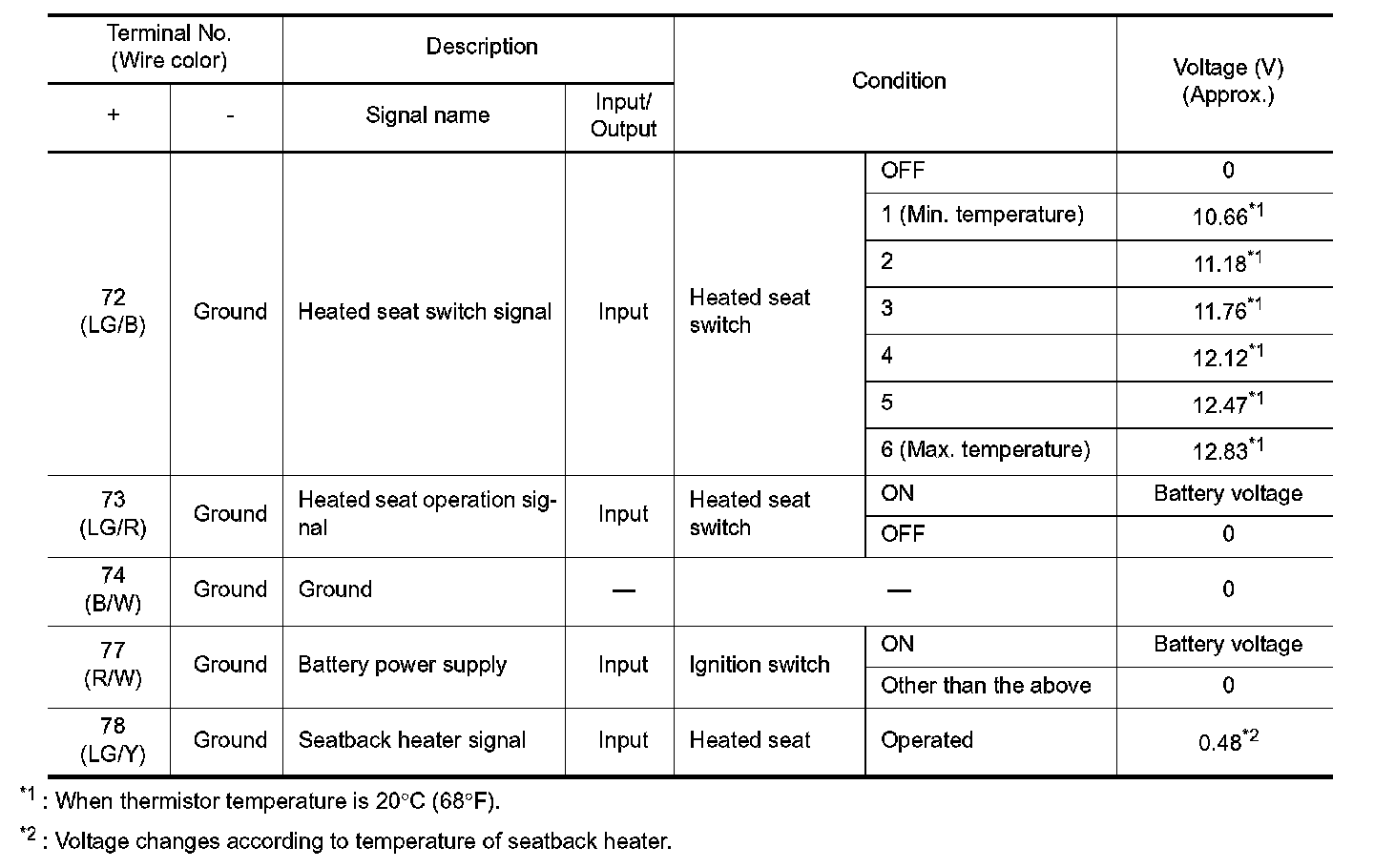

PHYSICAL VALUES
