Diagnosis Procedure
POWER SUPPLY AND GROUND CIRCUIT
CLIMATE CONTROLLED SEAT CONTROL UNIT : Diagnosis Procedure
Driver side
1. CHECK FUSE

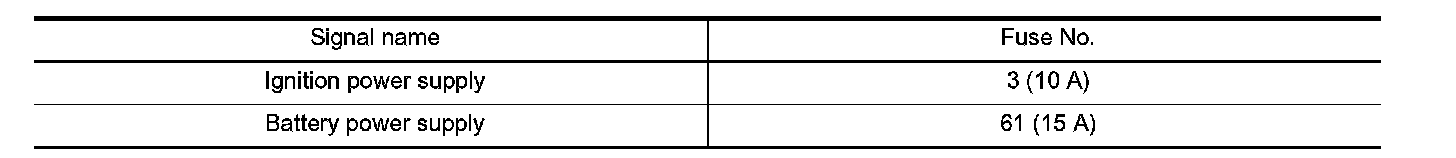

Check that the following fuse and fusible link are not fusing.
Is the inspection result normal?
YES- GO TO 2.
NO- Replace the blown fuse after repairing the affected circuit.
2. CHECK CLIMATE CONTROLLED SEAT CONTROL UNIT (DRIVER SIDE) POWER SUPPLY
1.Turn ignition switch OFF.
2.Disconnect climate controlled seat control unit (driver side) connector.
3.Turn ignition switch ON.

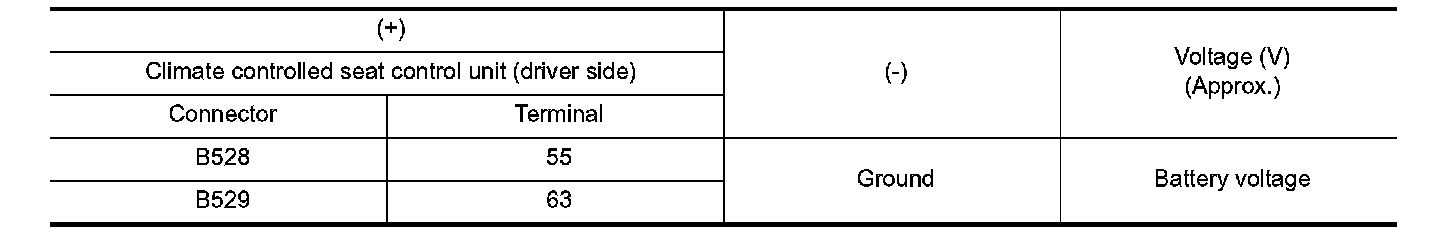

4.Check voltage between climate controlled seat control unit (driver side) harness connector and ground.
Is the inspection result normal?
YES- GO TO 3.
NO- GO TO 4.
3. CHECK CLIMATE CONTROLLED SEAT CONTROL UNIT (DRIVER SIDE) GROUND CIRCUIT
1.Turn ignition switch OFF.

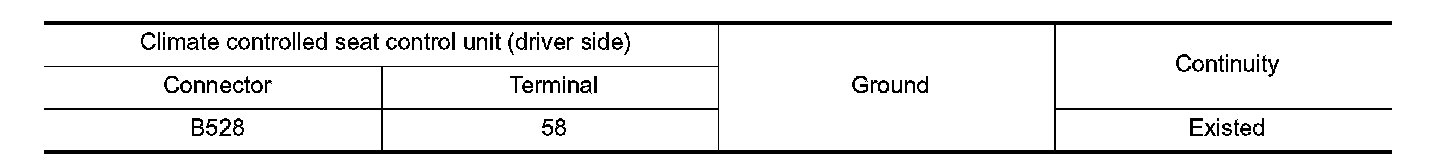

2.Check continuity between climate control unit (driver side) harness connector and ground.
Is the inspection result normal?
YES- INSPECTION END
NO- Repair or replace harness.
4. CHECK CLIMATE CONTROLLED SEAT CONTROL UNIT (DRIVER SIDE) POWER SUPPLY CIRCUIT
1.Turn ignition switch OFF.
2.Disconnect climate controlled seat relay.

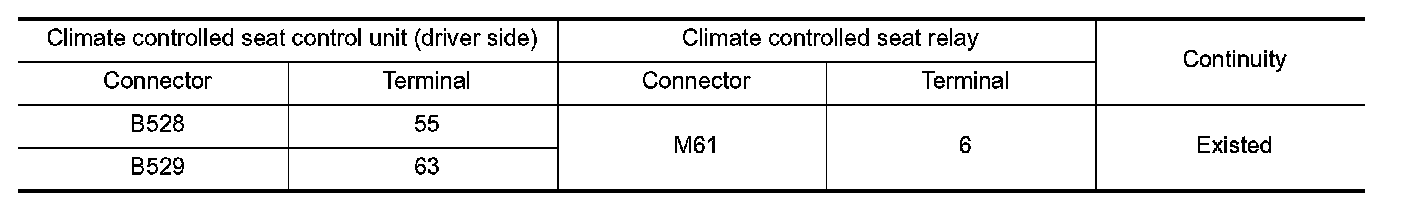

3.Check continuity between climate controlled seat control unit (driver side) harness connector and climate controlled seat relay harness connector.

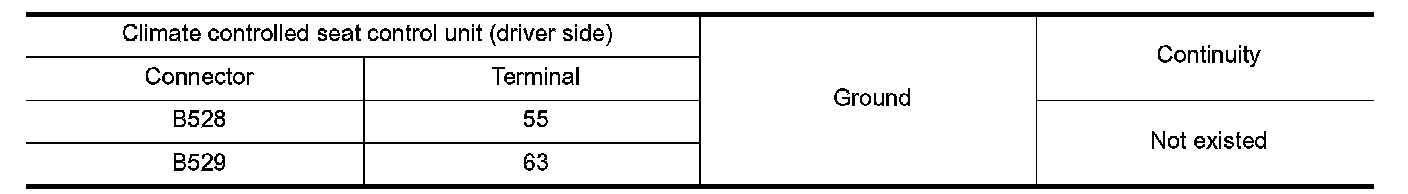

4.Check continuity between climate controlled seat control unit (driver side) harness connector and ground.
Is the inspection result normal?
YES- GO TO 5.
NO- Repair or replace harness.
5. CHECK CLIMATE CONTROLLED SEAT RELAY POWER SUPPLY
1.Turn ignition switch ON.

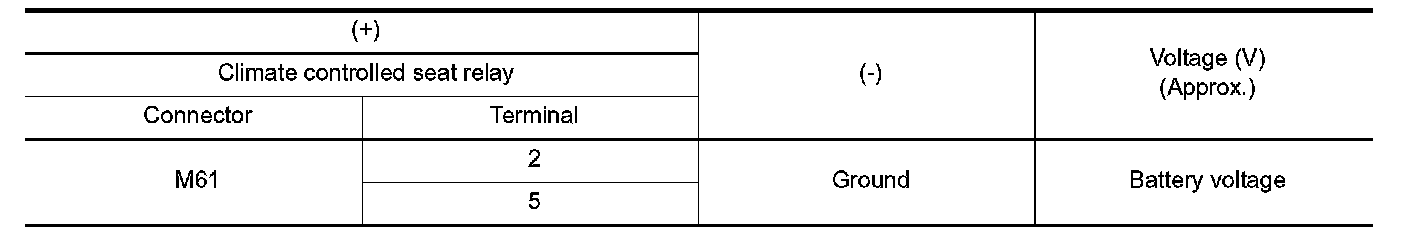

2.Check voltage between climate controlled seat relay harness connector and ground.
Is the inspection result normal?
YES- GO TO 6.
NO- Repair or replace harness.
6. CHECK CLIMATE CONTROLLED SEAT RELAY GROUND CIRCUIT
1.Turn ignition switch OFF.

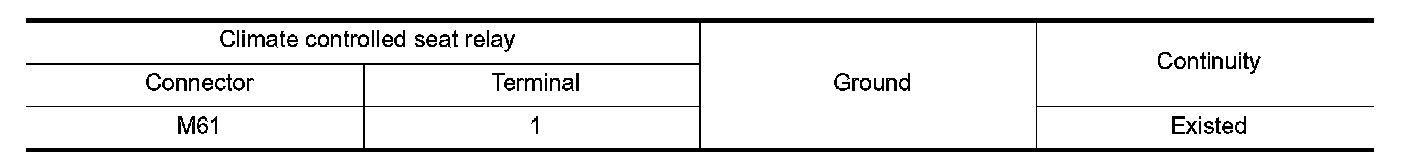

2.Check continuity between climate controlled seat relay harness connector and ground.
Is the inspection result normal?
YES- GO TO 7.
NO- Repair or replace harness.
7. CHECK CLIMATE CONTROLLED SEAT RELAY
Check climate controlled seat relay.
Component Inspection.
Is the inspection result normal?
YES- GO TO 8.
NO- Replace climate controlled seat relay.
8. CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
Passenger side
1. CHECK FUSE

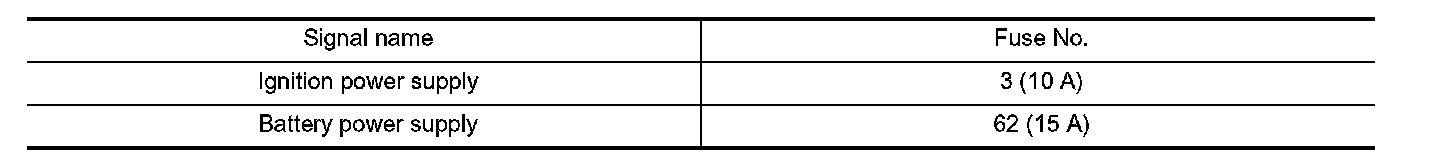

Check that the following fuse and fusible link are not fusing.
Is the fuse fusing?
YES- Replace the blown fuse after repairing the affected circuit.
NO- GO TO 2.
2. CHECK CLIMATE CONTROLLED SEAT CONTROL UNIT (PASSENGER SIDE) POWER SUPPLY
1.Turn ignition switch OFF.
2.Disconnect climate controlled seat control unit (passenger side) connector.
3.Turn ignition switch ON.

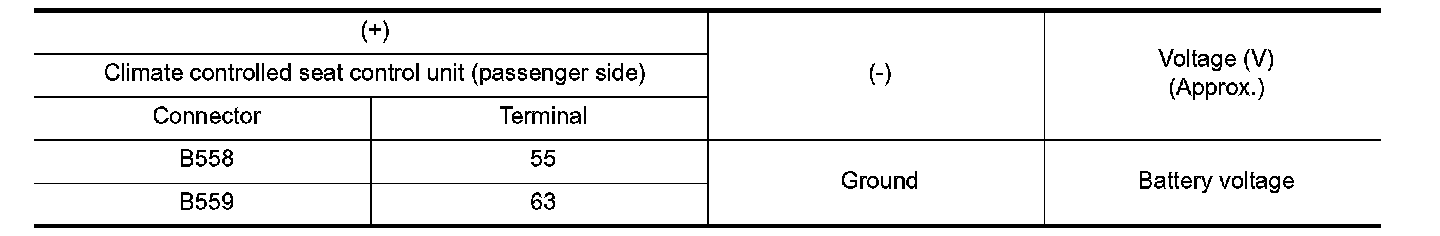

4.Check voltage between climate controlled seat control unit (passenger side) harness connector and ground.
Is the inspection result normal?
YES- GO TO 3.
NO- GO TO 4.
3. CHECK CLIMATE CONTROLLED SEAT CONTROL UNIT (PASSENGER SIDE) GROUND CIRCUIT
1.Turn ignition switch OFF.

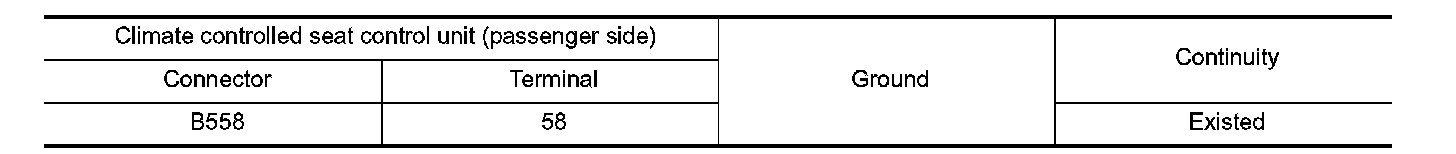

2.Check continuity between harness connector and ground.
Is the inspection result normal?
YES- INSPECTION END
NO- Repair harness or connector.
4. CHECK CLIMATE CONTROLLED SEAT CONTROL UNIT (PASSENGER SIDE) POWER SUPPLY CIRCUIT
1.Turn ignition switch OFF.
2.Disconnect climate controlled seat relay.

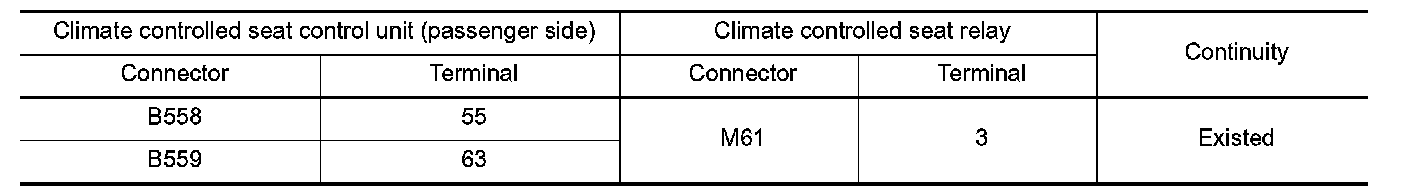

3.Check continuity between climate controlled seat control unit (passenger side) harness connector and climate controlled seat relay harness connector.
4.Check continuity between climate controlled seat control unit (passenger side) harness connector and ground.
Is the inspection result normal?
YES- GO TO 5.
NO- Repair or replace harness.
5. CHECK CLIMATE CONTROLLED SEAT RELAY POWER SUPPLY
1.Turn ignition switch ON.

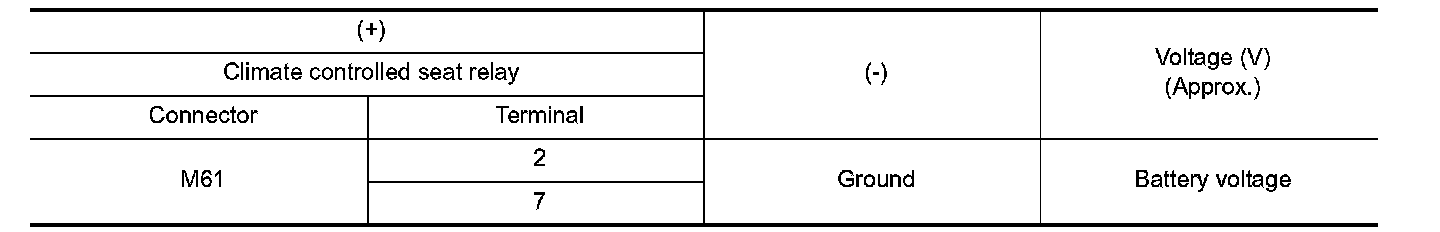

2.Check voltage between climate controlled seat relay harness connector and ground.
Is the inspection result normal?
YES- GO TO 6.
NO- Repair or replace harness.
6. CHECK CLIMATE CONTROLLED SEAT RELAY GROUND CIRCUIT
1.Turn ignition switch OFF.

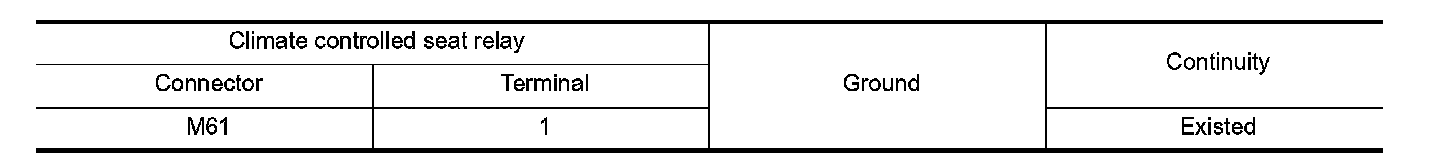

2.Check continuity between climate controlled seat relay harness connector and ground.
Is the inspection result normal?
YES- GO TO 7.
NO- Repair or replace harness.
7. CHECK CLIMATE CONTROLLED SEAT RELAY
Check climate controlled seat relay.
Component Inspection.
Is the inspection result normal?
YES- GO TO 8.
NO- Replace climate controlled seat relay.
8. CHECK INTERMITTENT INCIDENT
Intermittent Incident.
- INSPECTION END
