Door Lock And Unlock Switch

DOOR LOCK AND UNLOCK SWITCH

Component Function Check


1. CHECK FUNCTION

1.Select "DOOR LOCK" of "BCM" using CONSULT.
2.Select "CDL LOCK SW", "CDL UNLOCK SW" in "DATA MONITOR" mode.

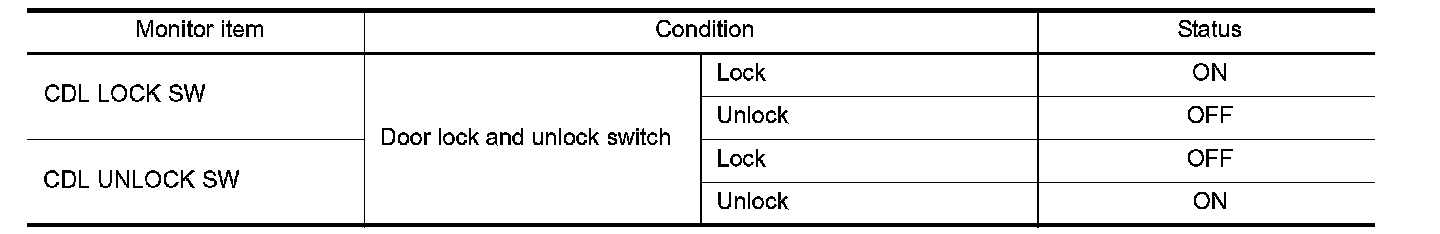

3.Check that the function operates normally according to the following conditions.





Is the inspection result normal?
YES- Door lock and unlock switch is OK.
NO- .


Diagnosis Procedure


1. CHECK POWER WINDOW SWITCH

1.Turn ignition switch ON.
2.Check power window operation.
Does power window operate?
YES- Replace power window main switch.
NO- None Of The Power Windows Can Be Operated Using Any Switch.
