REAR DOOR LOCK

DOOR LOCK : Removal and Installation


REMOVAL

1.Remove rear door finisher. Rear Door Finisher.
2.Remove sealing screen. Removal And Installation.
3.Fully close the rear door glass.

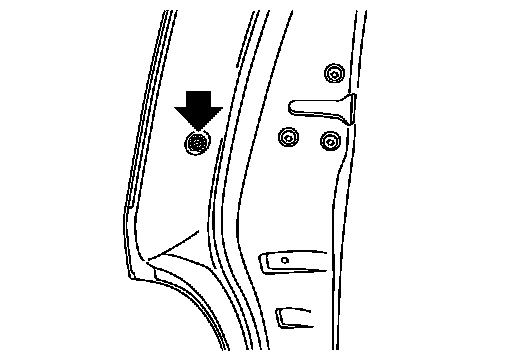

4.Remove door side grommet, and loosen TORX bolt from grommet hole.

CAUTION:
Never remove TORX bolt forcibly.

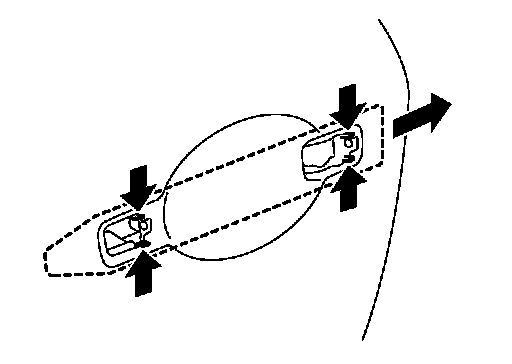

5.While pulling outside handle, remove outside handle escutcheon.

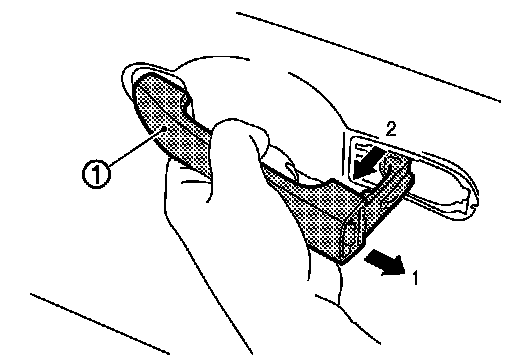

6.While pulling outside handle (1), slide toward rear of vehicle to remove outside handle.

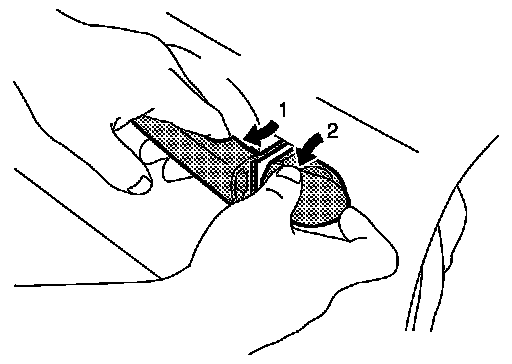

7.Remove front gasket and rear gasket.





8.While pulling outside handle bracket, slide toward rear of vehicle to remove outside handle bracket.
9.Reach in to separate outside handle cable connection on outside handle bracket.
10.Remove door lock assembly mounting TORX bolts.
11.Disconnect door lock actuator connector, and then remove door lock assembly.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:
Check door open/close, lock/unlock operation after installation.
