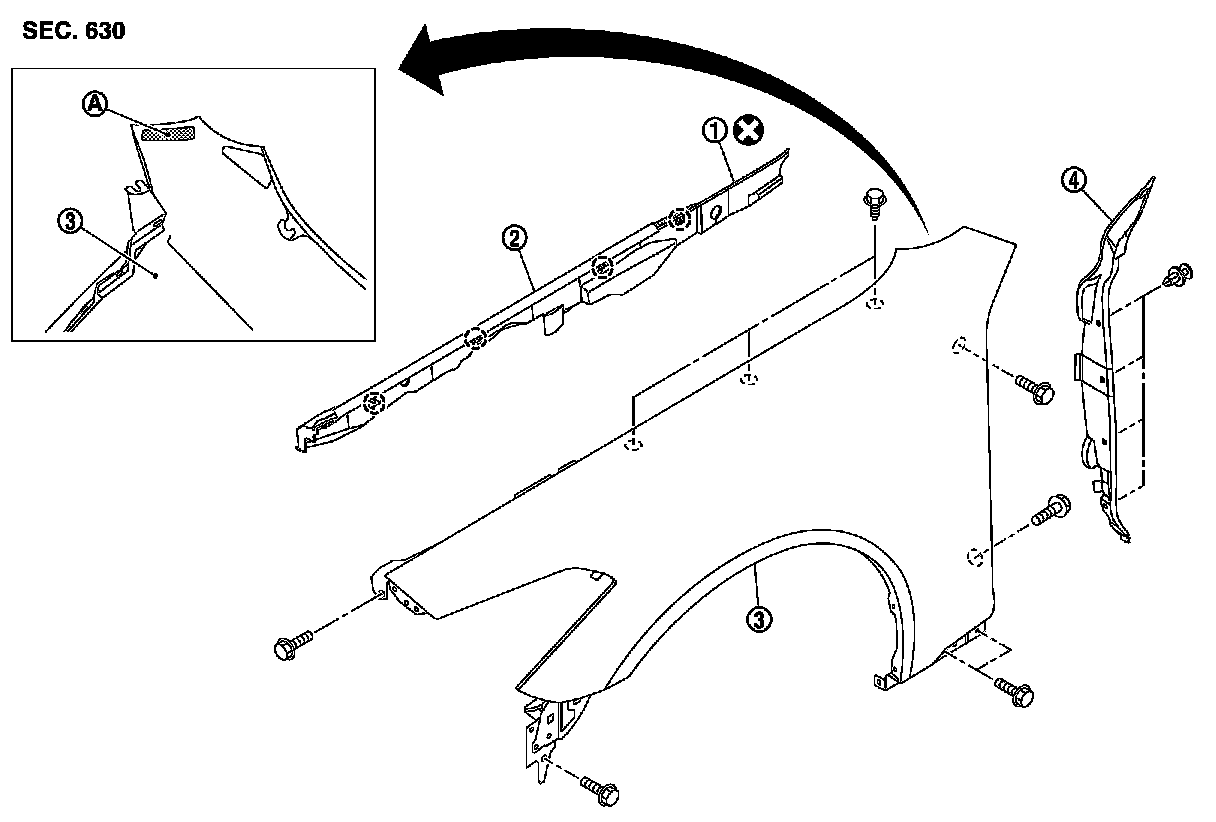

Exploded View
FRONT FENDER
Exploded View

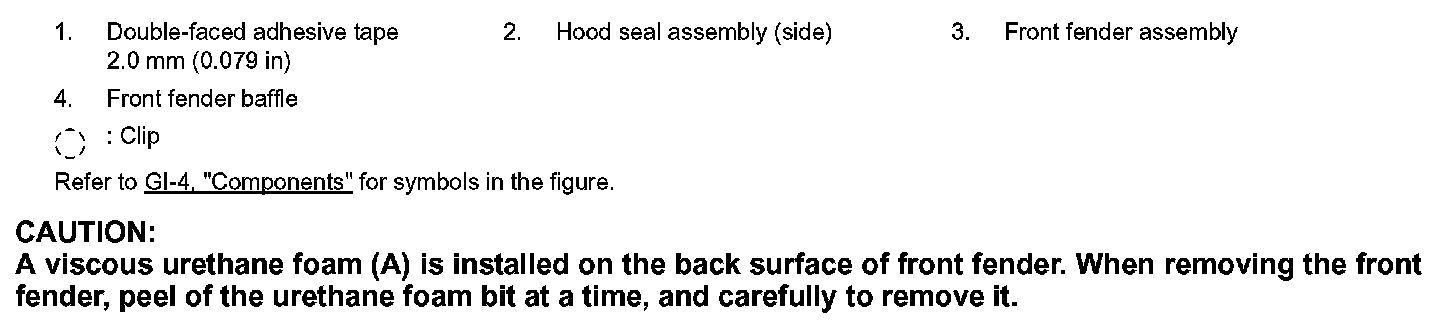

CAUTION:
A viscous urethane foam (A) is installed on the back surface of front fender. When removing the front fender, peel of the urethane foam bit at a time, and carefully to remove it.
FRONT FENDER
Exploded View
CAUTION:
A viscous urethane foam (A) is installed on the back surface of front fender. When removing the front fender, peel of the urethane foam bit at a time, and carefully to remove it.
