Removal and Replacement

TRUNK LID

TRUNK LID STAY : Removal and Installation


REMOVAL

1.Support trunk lid with the proper material to prevent it from falling.

WARNING:
Bodily injury may occur if no supporting rod is holding the trunk lid open when removing the trunk lid stay.

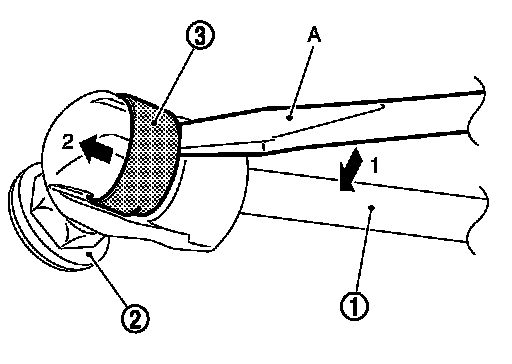

2.Remove the metal clip (3) located on the connection between the trunk lid stay (1) and the stud ball (2) (trunk lid side) by using a flat-bladed screwdriver (A).
3.Remove trunk lid stay (trunk lid side).
4.In the same way, remove trunk lid stay (body side).

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:
Check trunk lid open/close operation after installation.
