Trunk Rear Plate

TRUNK ROOM TRIM

TRUNK REAR PLATE : Removal and Installation


REMOVAL

1.Fully open trunk lid.
2.Remove trunk floor carpet.

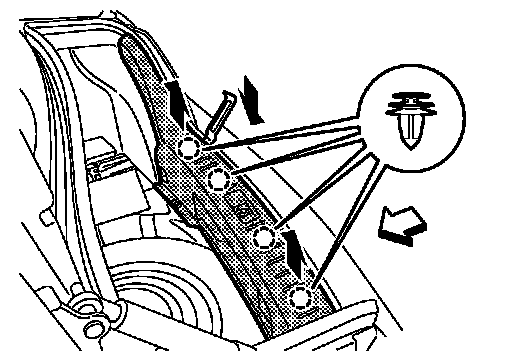

3.Remove rope hooks and trunk rear plate fixing clips





4.Insert a remover tool between trunk rear plate and body rear panel to disengage fixing clips, and then remove luggage rear plate.





5.Pull up trunk rear plate to remove.

INSTALLATION

Note the following item, and then install in the reverse order of removal.

CAUTION:
Check that clips are securely fitted in panel holes on body when installing, and then press clips in.
