Removal And Installation

FUEL FILLER LID OPENER

Removal and Installation

NOTE:

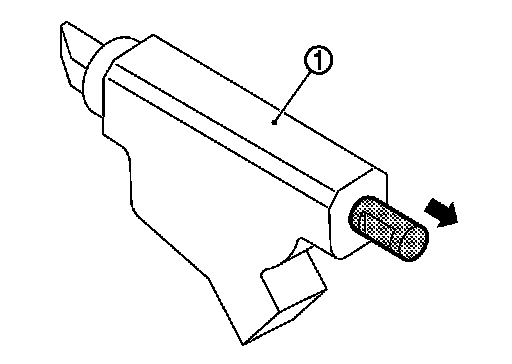

When fuel filler lid opener actuator (1) is a defective operation, pull the rod to open fuel filler lid.

REMOVAL

1.Fully open fuel filler lid.

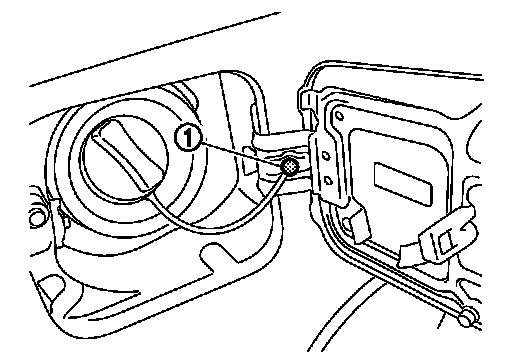

2.Remove fuel mounting pin (1).
3.Remove mounting screws and then remove fuel filler lid.
4.Rotate lock nut counterclockwise, and then remove lock nut.
5.Remove trunk side finisher RH. Trunk Side Finisher.
6.Push fuel filler lid opener actuator behind the vehicle, while pushing the pawl.
7.Disconnect harness connector and remove fuel filler lid opener actuator.
8.Pull and remove lock & rod assembly forward, while pushing the pawls.

INSTALLATION

Note the following item, and install in the reverse order of removal.

CAUTION:
- After installation, check fuel filler lid assembly open/close, lock/unlock operation.
- After installation, apply the touch-up paint (the body color) onto the head of the mounting screws.
