Int Lamp
Int Lamp
DIAGNOSIS SYSTEM (
BCM
)
INT LAMP : CONSULT Function (
BCM
- INT LAMP)

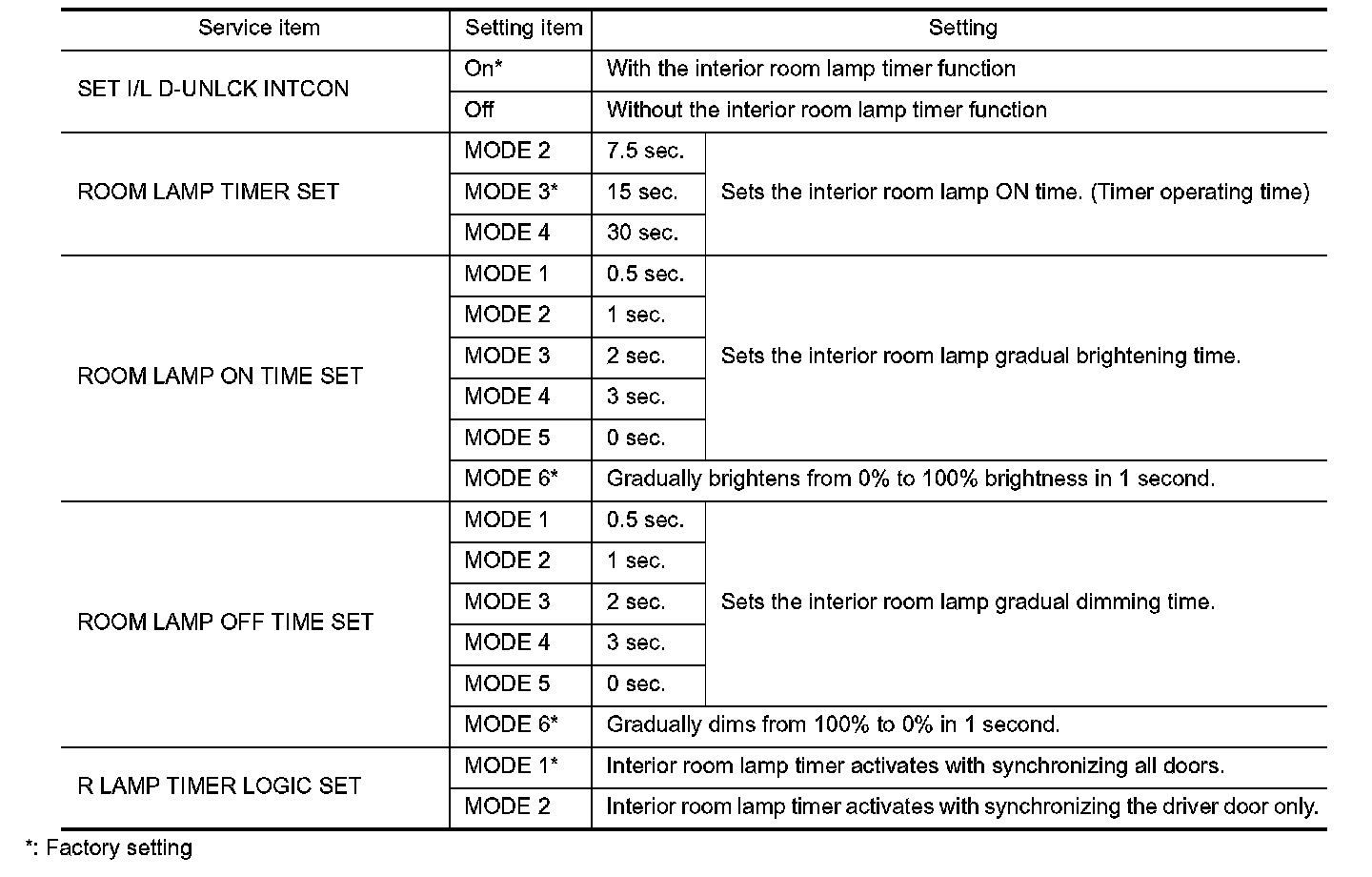

WORK SUPPORT

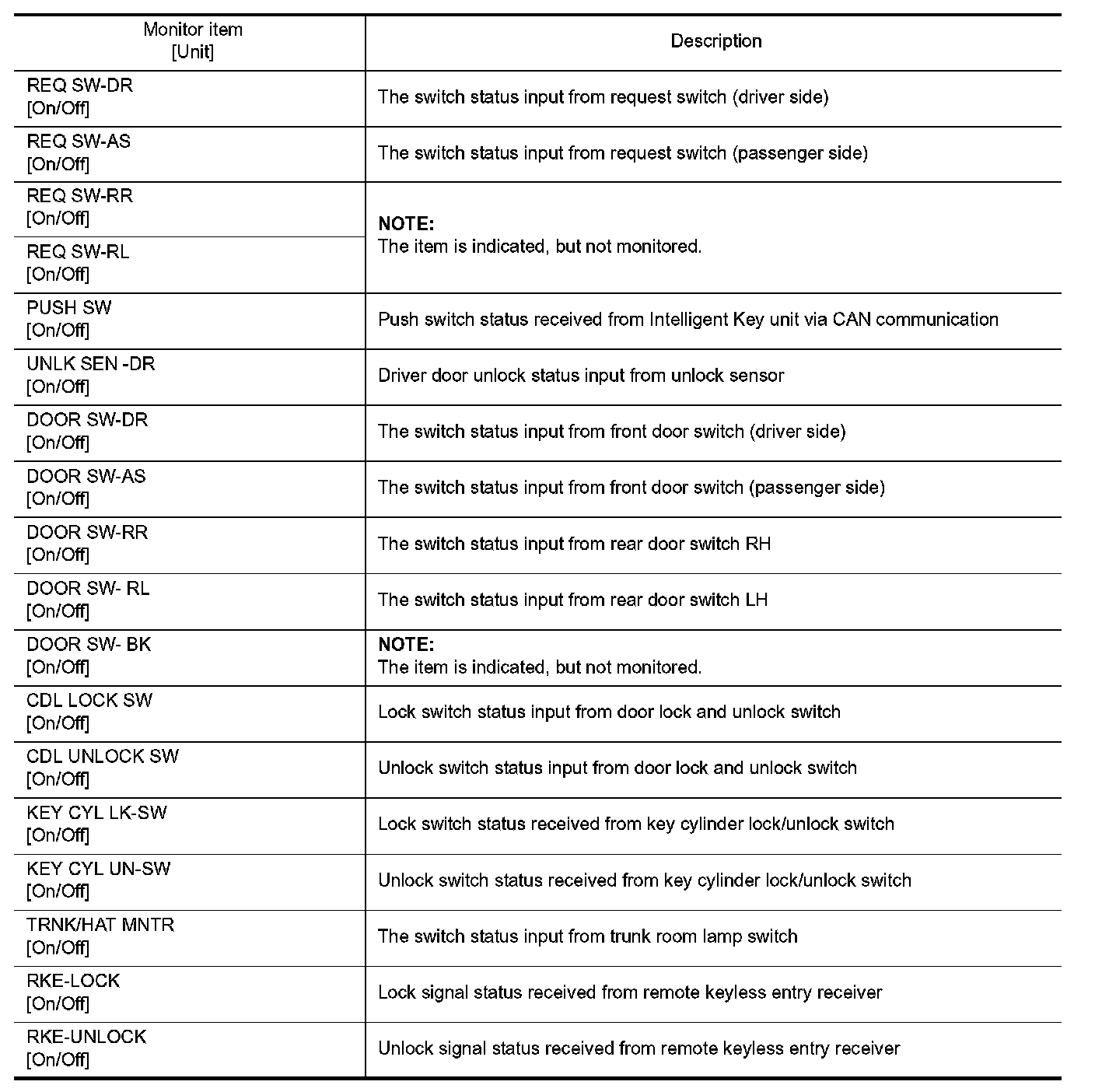

DATA MONITOR

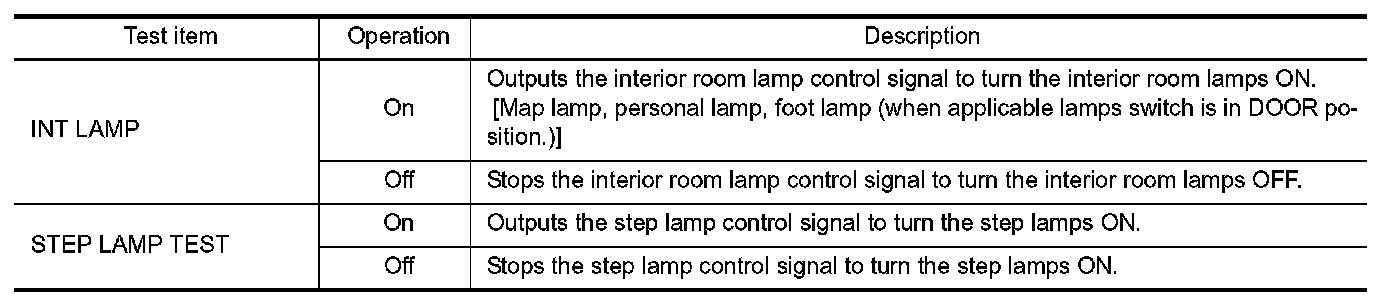

ACTIVE TEST
