BSW & BSI

DIAGNOSIS SYSTEM (LANE CAMERA UNIT)

CONSULT Function (LANE CAMERA)

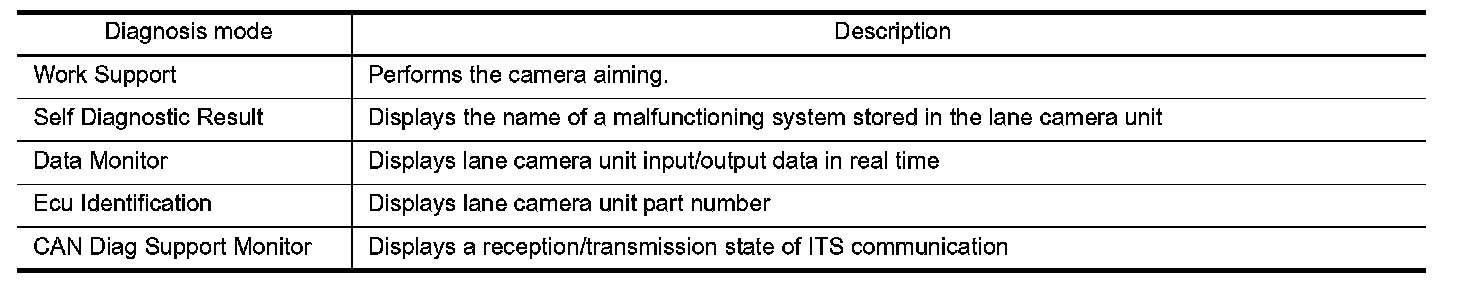

APPLICATION ITEMS

CONSULT performs the following functions by communicating with the lane camera unit.

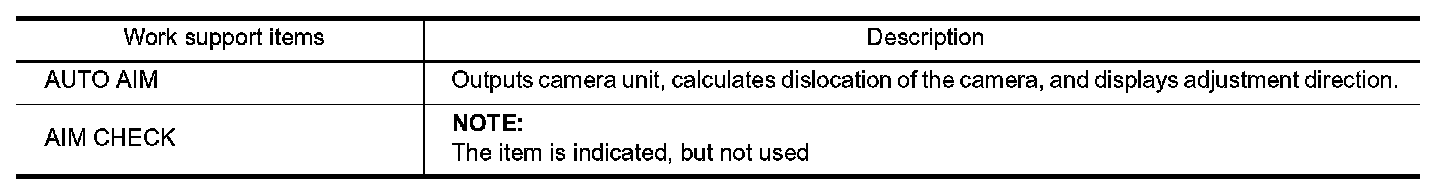

WORK SUPPORT







SELF DIAGNOSTIC RESULT

Testing and Inspection.

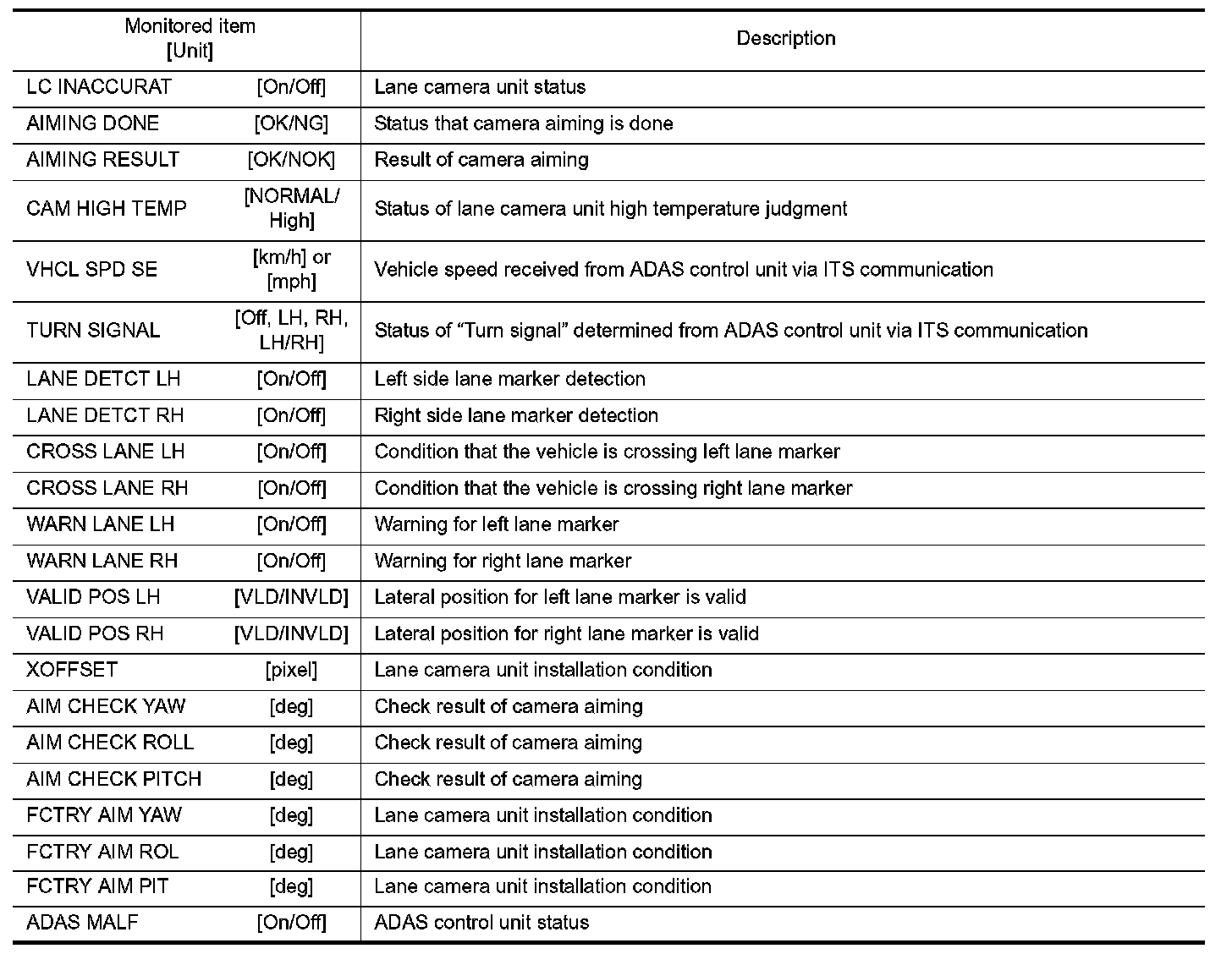

DATA MONITOR
