Accelerator Pedal Actuator

DIAGNOSIS SYSTEM (ACCELERATOR PEDAL ACTUATOR)

CONSULT Function (ACCELERATOR PEDAL ACT)


DESCRIPTION

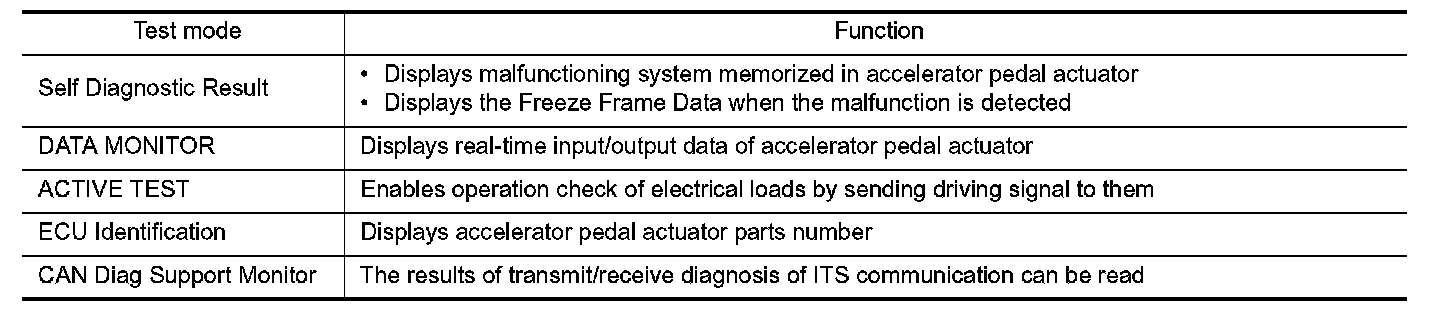

CONSULT performs the following functions via CAN communication with ADAS control unit and the communication with accelerator pedal actuator.






SELF DIAGNOSTIC RESULT

Self Diagnostic Result
Testing and Inspection.

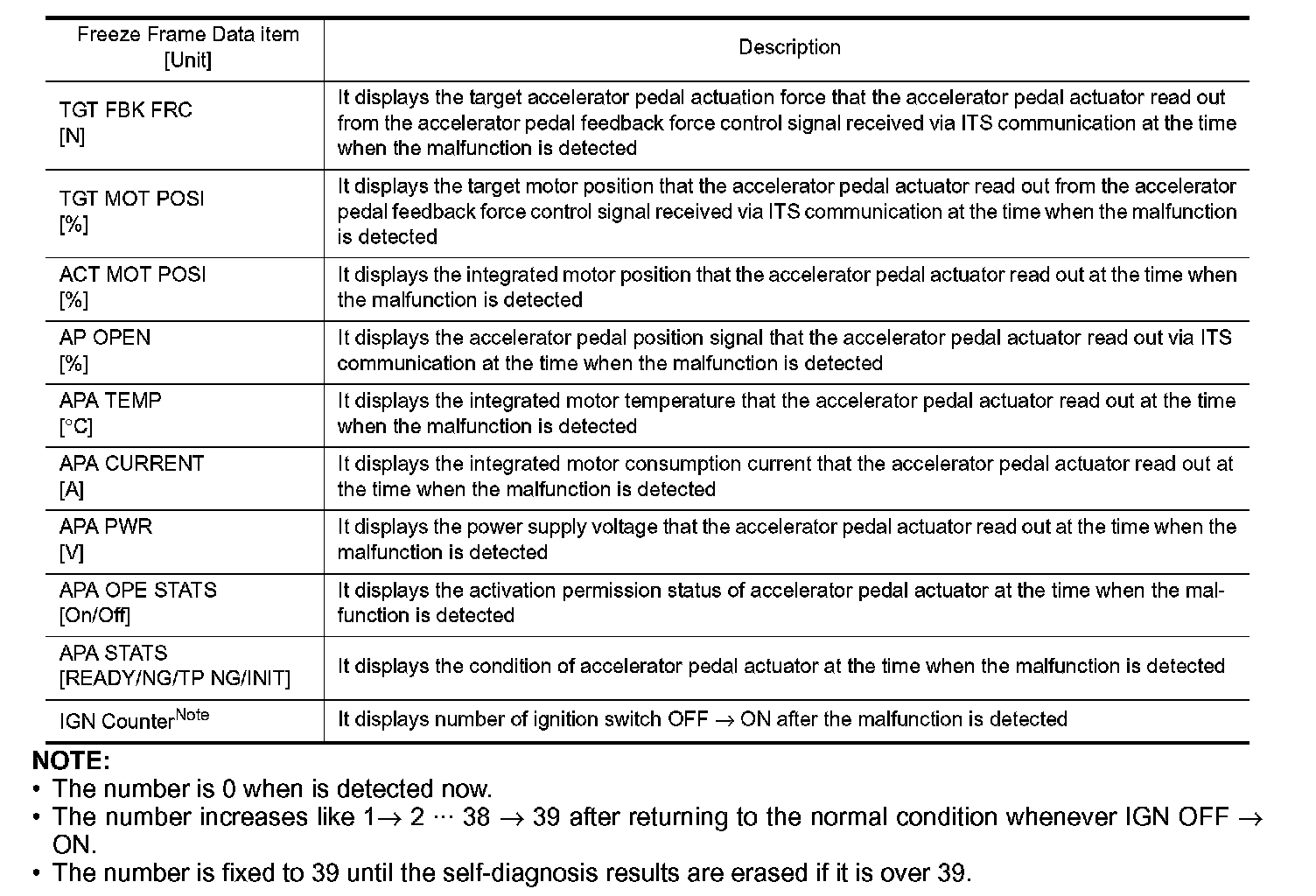

FFD (Freeze Frame Data)
The accelerator pedal actuator records the following data when the malfunction is detected.





NOTE:
- The number is 0 when is detected now.
- The number increases like 1->2 38->39 after returning to the normal condition whenever IGN OFF -> ON.
- The number is fixed to 39 until the self-diagnosis results are erased if it is over 39.

DATA MONITOR







ACTIVE TEST


CAUTION:
Never perform ACTIVE TEST while driving the vehicle.
NOTE:
The active test cannot be performed when the ICC system warning lamp is illuminated.

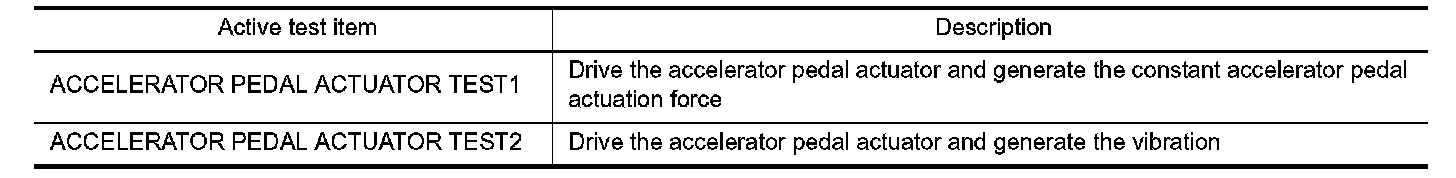

Item list

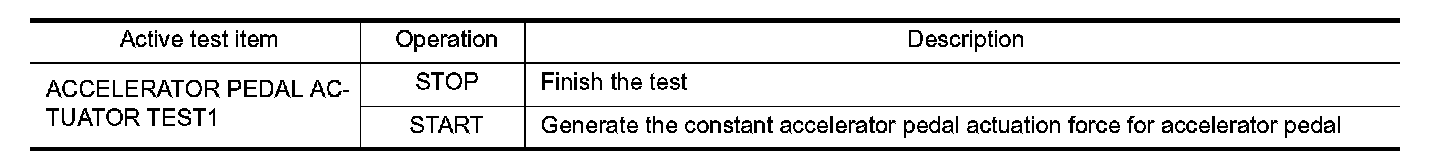

ACCELERATOR PEDAL ACTUATOR TEST 1
NOTE:
Check the accelerator pedal by depressing when performing the test.





ACCELERATOR PEDAL ACTUATOR TEST 2
NOTE:
Check the accelerator pedal by depressing when performing the test.






ECU IDENTIFICATION

Displays accelerator pedal assembly parts number.
