Side Radar RH




SIDE RADAR RH

Reference Value


VALUES ON THE DIAGNOSIS TOOL

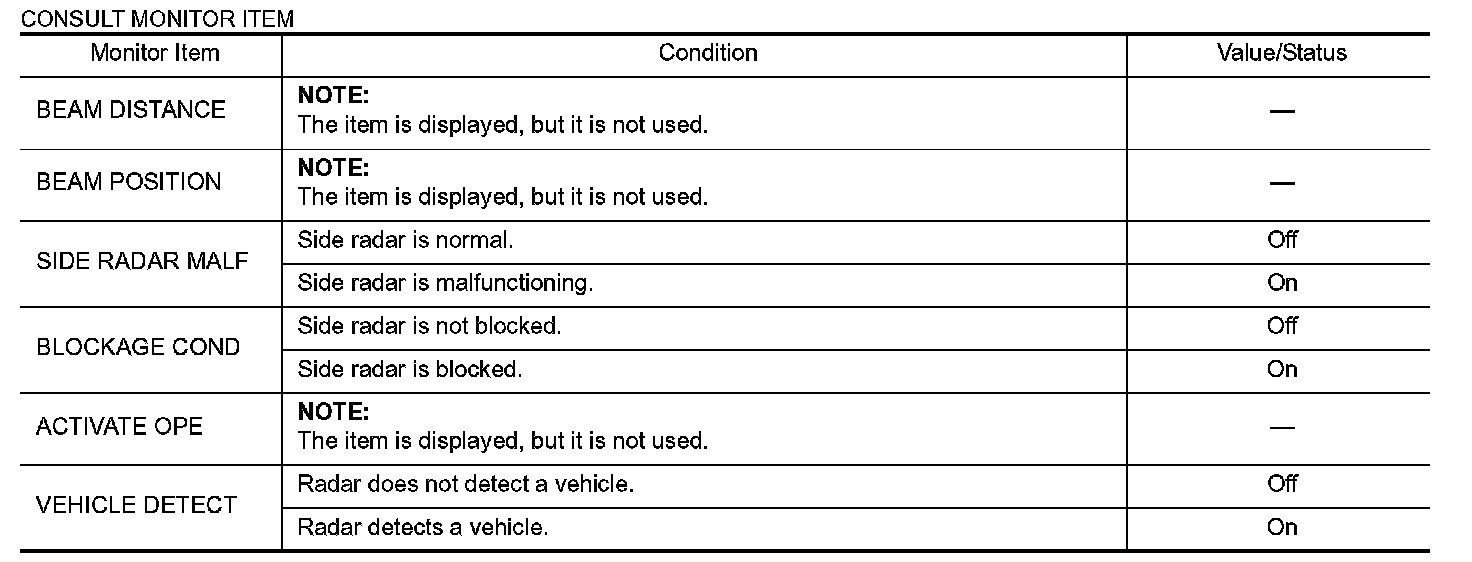

CONSULT MONITOR ITEM

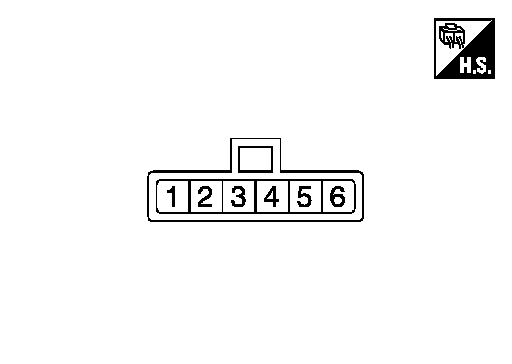

TERMINAL LAYOUT

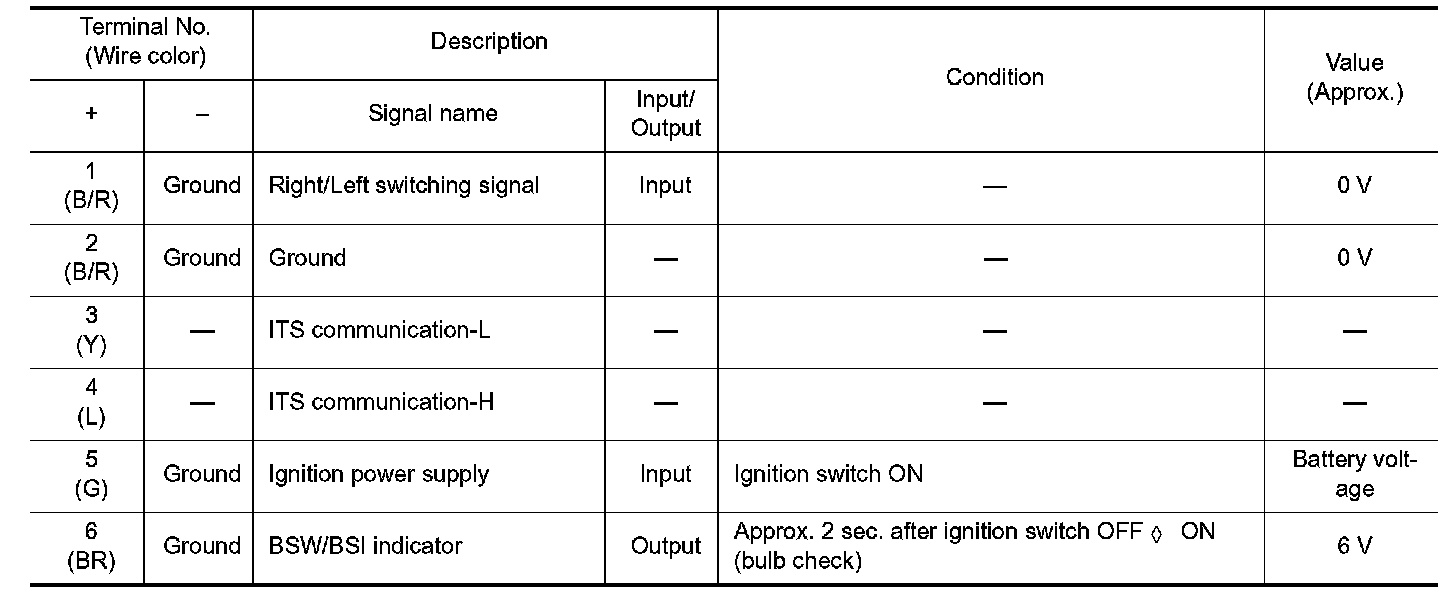

PHYSICAL VALUES
