LDW & LDP




LANE CAMERA UNIT

Reference Value

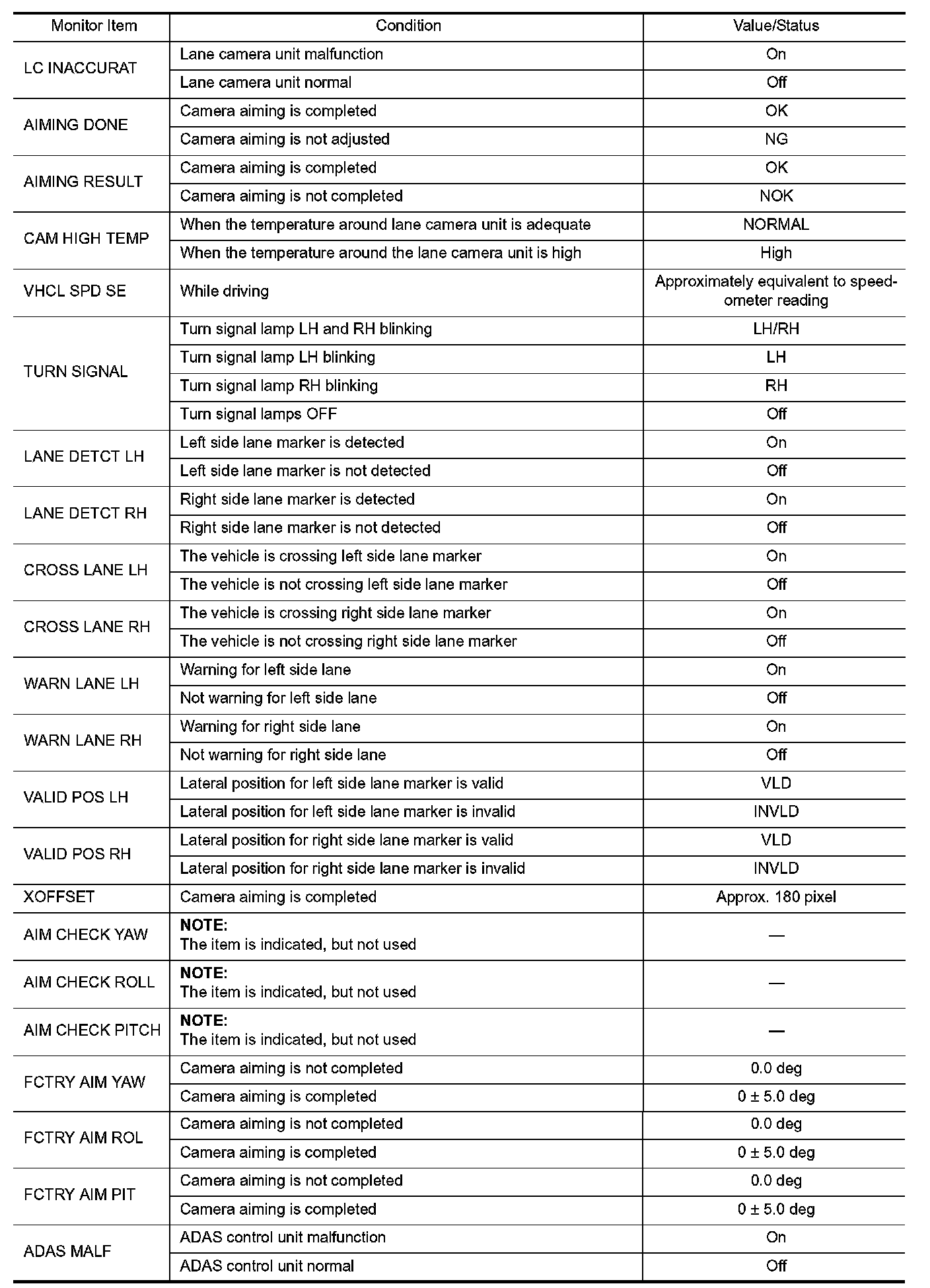

VALUES ON THE DIAGNOSIS TOOL

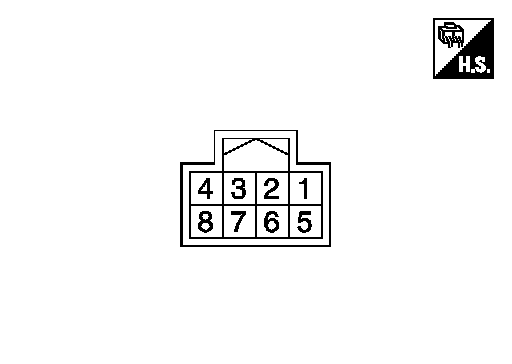

TERMINAL LAYOUT

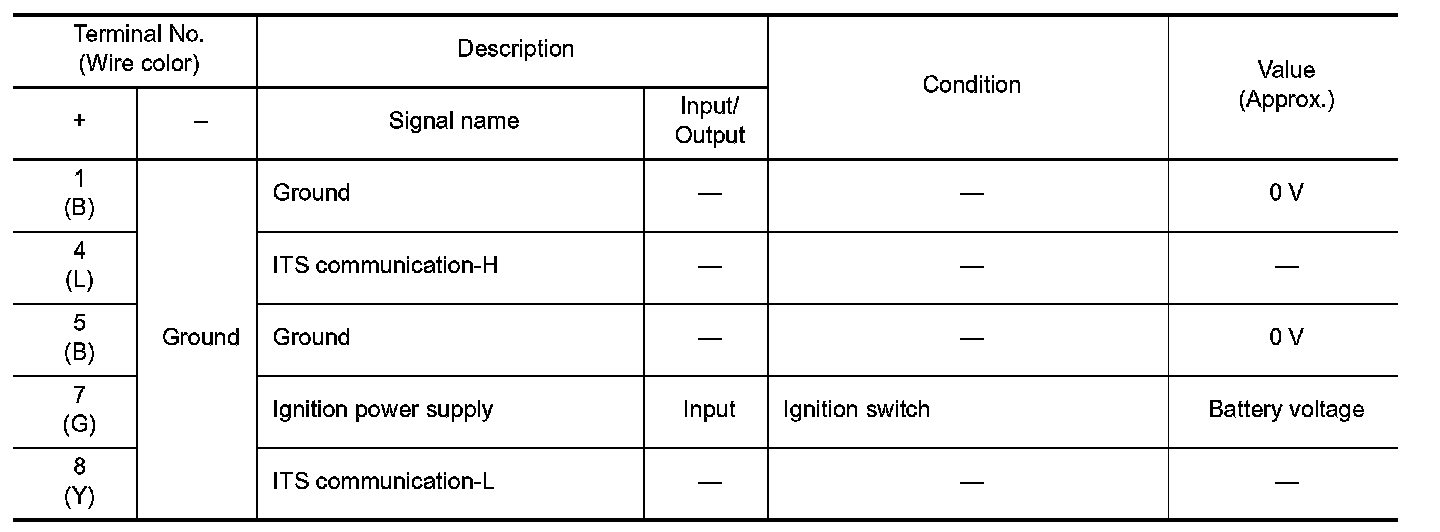

PHYSICAL VALUES
