Fail-Safe




SYSTEM

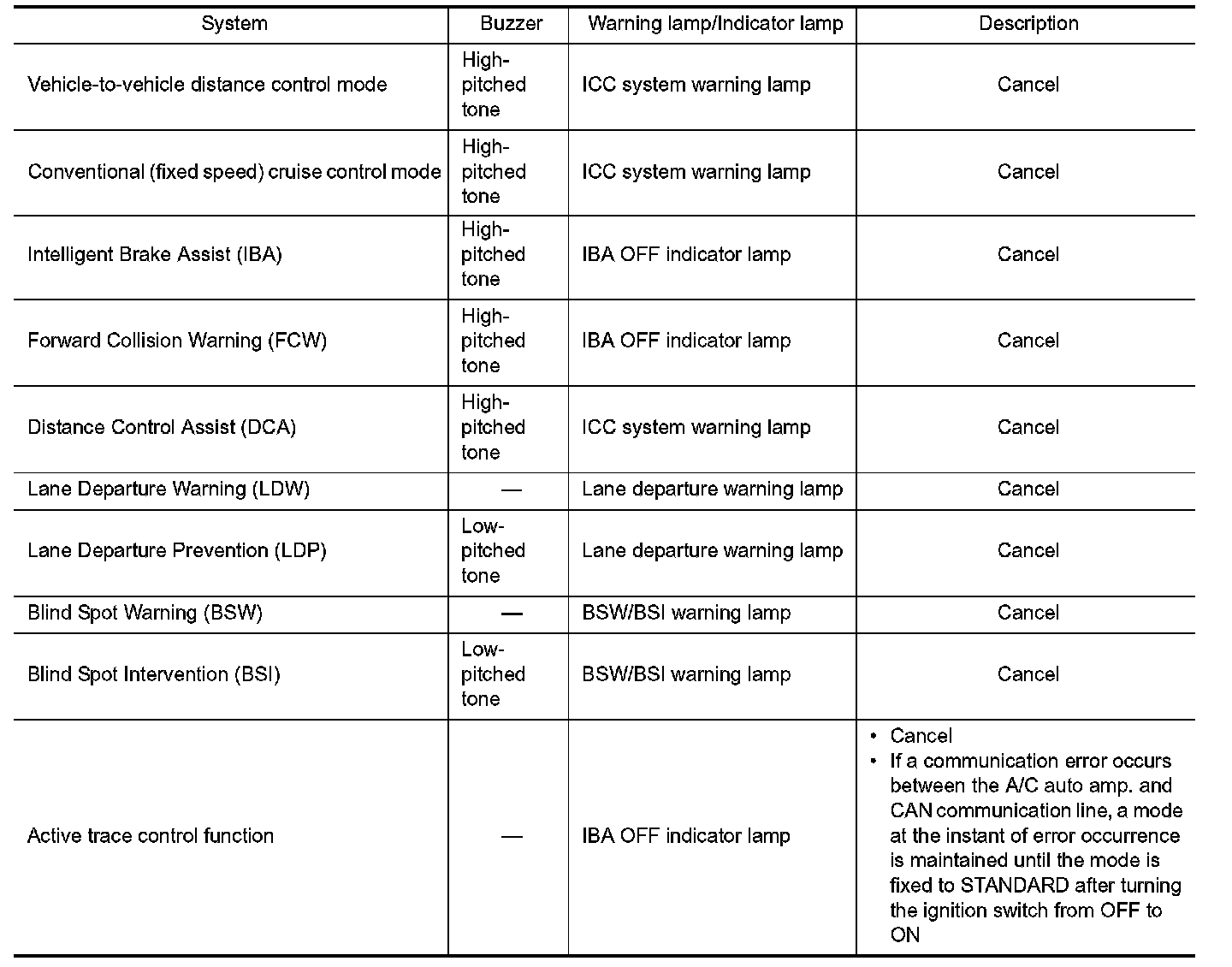

Fail-safe

If a malfunction occurs in each system, ADAS control unit cancels each control, sounds a beep, and turns ON
the warning lamp or indicator lamp.
