System Description




SYSTEM

Fail-safe (ADAS Control Unit)

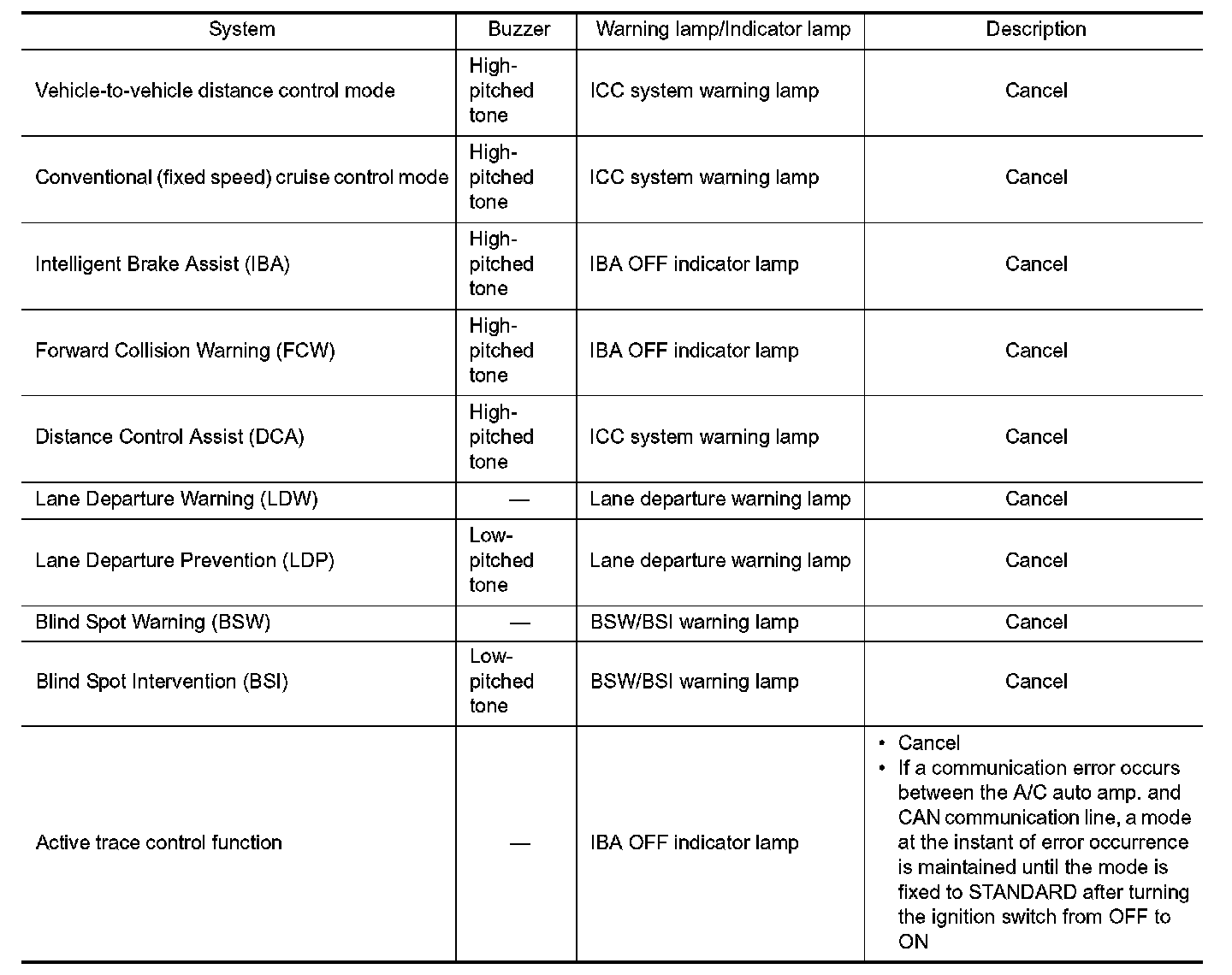

If a malfunction occurs in each system, ADAS control unit cancels each control, sounds a beep, and turns ON
the warning lamp or indicator lamp.
